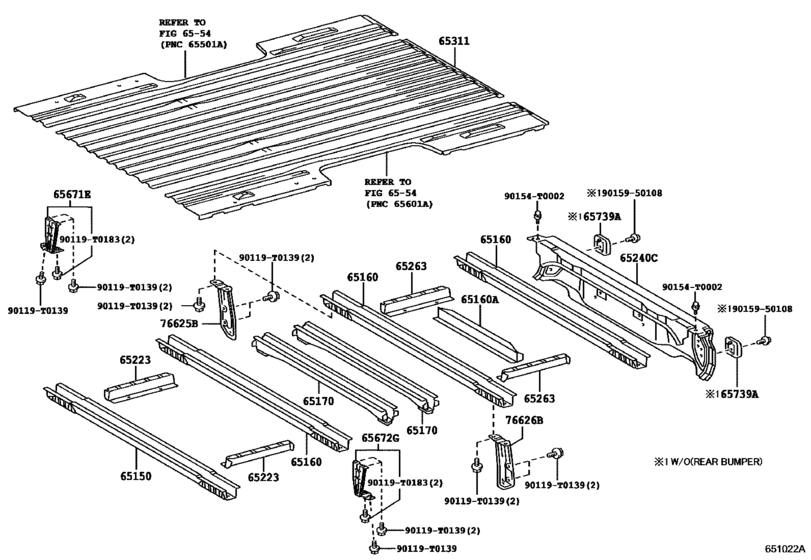

Rear Body Floor & Fender ([07.2011 - ] (1107- )KUN10,TGN10,11..CBU) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- TGN11
- grade
- DLX
- ENGINE
- 2TRFE
- DESTINATION
- GCC
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 07.2011
- To
- 04.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65150
|
65150
65150-0K020
Sill Assy, Cross, No.1
[07.2011 - 04.2015] KUN10,TGN10,11..CBU |
65150-0K020 |
— | ||
|
65160
|
65160
65160-0K010
Sill Assy, Cross, No.2
[07.2011 - 12.2015] KUN10,TGN10,11..CBU;GGN15,KUN15,16,2#,3#,TGN16..(SMT,XTR)..(DCR,HDCR,HTWC)..CBU |
65160-0K010 |
— | ||
|
65160A
|
65160A
65261-0K010
Sill Assy, Cross, No.2
[07.2011 - 04.2015] KUN10,TGN10,11..CBU |
65261-0K010 |
— | ||
|
65170
|
65170
65170-0K010
Sill Assy, Cross, No.2
[07.2011 - 12.2015] KUN26..4FC..CO;GGN15,LAN35,TGN15..CBU;KUN15,LAN25..RHD..(DLX,SR);TGN36..(SCB,THDCB )..(GEN,SA);KUN15..LHD..(GCC,GEN,PHL)..CBU;KUN15,LAN25,TGN16..LHD..SCB..SA;KUN2#,3 #,LAN15,TGN16..(SCB,XTR)..(CNG,DCR,DEFI,HDCR)..(MA,SA,TH);GGN25,KUN10 |
65170-0K010 |
— | ||
|
65223
|
65223
65223-0K020
Reinforcement, Floor Panel, Front, No.1 Rh
[07.2011 - 04.2015] KUN10,TGN10,11..CBU |
65223-0K020 |
— | ||
|
65240C
|
65240C
65240-0K010 Sill Assy, Cross, No.9CROSS, NO.9 [07.2011 - 04.2015] TGN16..GCC..CBU;KUN25..(DCB,SCB)..(GCC,GEN);KUN15,35,TGN16..LHD..(DCB,XTR)..DLX..( HDCR,HTWC)..(GEN,PHL);KUN10,15,TGN10,11,15,26..(DCB,SCB)..DLX..(DCR,HTWC)..(GCC,GE N)..CBU; KUN15..DLX..PHL REAR BUMPER-FLAT TYPE(STEEL & PAINTED); KUN1 |
65240-0K010 |
US $243.98 |
||
|
65263
|
65263
65263-0K010
Reinforcement, Floor Side Frame
[07.2011 -] KUN26..4FC..CO;LAN15,25,35..RHD;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THD CB,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN,TH)..CBU |
65263-0K010 |
— | ||
|
65311
|
65311
65311-0K020
Panel, Floor, Center
[07.2011 - 04.2015] KUN10,TGN10,11..CBU |
65311-0K020 |
— | ||
|
65671E
|
65671E
65608-0K020
Brace, Side Panel Skirt, Front Rh
[07.2011 -] LAN15,25..RHD..SCB;GGN15,KUN1#,2#,3#,TGN1#,26,36..(SCB,SMT,THSCB,XTR)..(ANCOM,ARL, GCC,GEN,IDN,PKN,TH)..CBU |
65608-0K020 |
— | ||
|
65672G
|
65672G
65609-0K020
Brace, Side Panel Skirt, Front Lh
[07.2011 -] LAN15,25..RHD..SCB;GGN15,KUN1#,2#,3#,TGN1#,26,36..(SCB,SMT,THSCB,XTR)..(ANCOM,ARL, GCC,GEN,IDN,PKN,TH)..CBU |
65609-0K020 |
— | ||
|
76625B
|
76625B
76607-0K040 Mudguard, Rear Body, RhREAR BODY, RH [07.2011 -] KUN26..4FC..CO;LAN15,25,35..RHD;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THD CB,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN,TH)..CBU |
76607-0K040 |
from US $25.19 |
||
|
76626B
|
76626B
76608-0K040
Mudguard, Rear Body, Lh
[07.2011 -] KUN26..4FC..CO;LAN15,25,35..RHD;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THD CB,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN,TH)..CBU |
76608-0K040 |
— | ||
|
90119T0139
|
90119T0139
90119-T0139 New Genuine Part |
90119-T0139 |
US $1.24 |
||
|
90119T0183
|
90119T0183
90119-T0183
BOLT WWASHER
|
90119-T0183 |
— | ||
|
90154T0002
|
90154T0002
90154-T0002
New Genuine Part
|
90154-T0002 |
— | ||
|
9015950108
|
9015950108
90159-50108 New Genuine Part |
90159-50108 |
US $0.79 |
