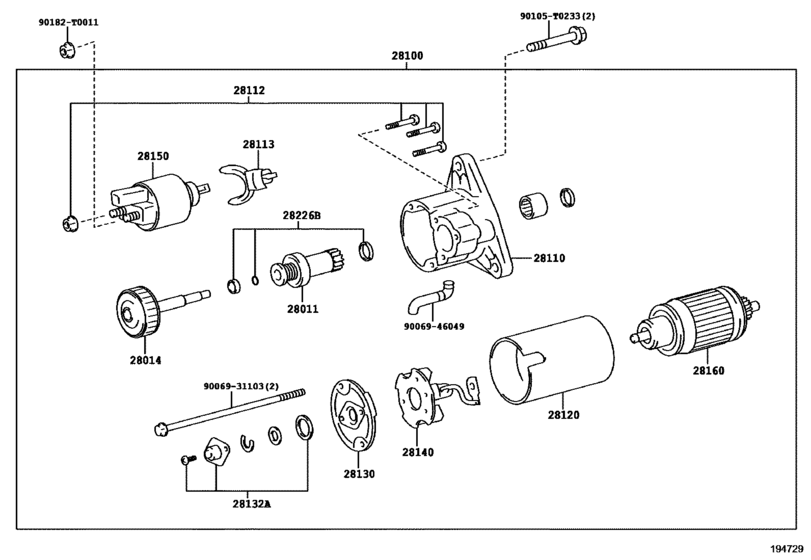

Starter ([11.2015 - ] 12V 1.4KW(BOSCH) (1511- )1TRFE,2TRFE..TGN120,121,126,136..AGTD C,AGTSC,SADCB,SASCB) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- TGN126
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- DESTINATION
- LA
- CAB
- AGTDC
- Model
- HILUX
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Model Mark
- M
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-0C120
Clutch Sub-Assy, Starter
[11.2015 -] 2TRFE..TGN126,136..AGTDC,AGTSC |
28011-0C120 |
— | ||
|
28014
|
28014
28014-0C120
Shaft Sub-Assy, Planet Carrier
[11.2015 -] 2TRFE..TGN126,136..AGTDC,AGTSC |
28014-0C120 |
— | ||
|
28100
|
28100
28100-0C120
Starter Assy
[11.2015 -] 2TRFE..TGN126,136..AGTDC,AGTSC 12V 1.4KW |
28100-0C120 |
— | ||
|
28110
|
28110
28110-0C120
Housing Assy, Starter Drive
[11.2015 -] 2TRFE..TGN126,136..AGTDC,AGTSC |
28110-0C120 |
— | ||
|
28112
|
28112
28112-0L200
Bolt, Housing Set
[11.2015 -] 2TRFE..TGN126,136..AGTDC,AGTSC |
28112-0L200 |
— | ||
|
28113
|
28113
28113-0C120
Lever, Starter Pinion Drive
[11.2015 -] 2TRFE..TGN126,136..AGTDC,AGTSC |
28113-0C120 |
— | ||
|
28120
|
28120
28120-0C120
Yoke Assy, Starter
[11.2015 -] 2TRFE..TGN126,136..AGTDC,AGTSC |
28120-0C120 |
— | ||
|
28130
|
28130
28130-0D130
Frame Assy, Starter Commutator End
[11.2015 -] 2TRFE..TGN126,136..AGTDC,AGTSC |
28130-0D130 |
— | ||
|
28132A
|
28132A
28132-0C120
Cover, Starter Commutator End Frame
[11.2015 -] 2TRFE..TGN126,136..AGTDC,AGTSC |
28132-0C120 |
— | ||
|
28140
|
28140
28140-0C120
Holder Assy, Starter Brush
[11.2015 -] 2TRFE..TGN126,136..AGTDC,AGTSC |
28140-0C120 |
— | ||
|
28150
|
28150
28150-0C120
Switch Assy, Magnet Starter
[11.2015 -] 2TRFE..TGN126,136..AGTDC,AGTSC |
28150-0C120 |
— | ||
|
28160
|
28160
28160-0C120
Armature Assy, Starter
[11.2015 -] 2TRFE..TGN126,136..AGTDC,AGTSC |
28160-0C120 |
— | ||
|
28226B
|
28226B
28226-0C120
Starter Kit, Repair Service
[11.2015 -] 2TRFE..TGN126,136..AGTDC,AGTSC |
28226-0C120 |
— | ||
|
90105T0233
|
90105T0233
90105-T0233 BOLT FLANGE |
90105-T0233 |
US $1.35 |
||
|
90182T0011
|
90182T0011
90182-T0011 New Genuine Part |
90182-T0011 |
US $1.46 |
||
|
9006946049
|
9006946049
90069-46049
New Genuine Part
|
90069-46049 |
— |
