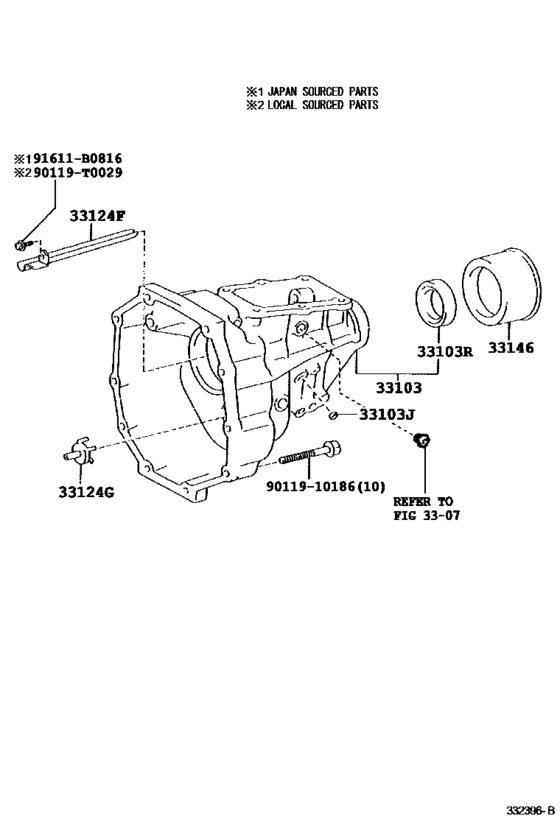

Extension Housing (Mtm) ([08.2004 - ] R150,R151 (0408- )KUN16..5F ; (0408- )KUN36..5F..SR ; (0408- )KUN36..DLX ; (0408- )GGN15,KUN15,35, TGN11,16,36..5F..HDCR,HTWC) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Frame
- TGN16
- grade
- DLX
- ENGINE
- 2TRFE
- DESTINATION
- ARL
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 02.2005
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33103
|
33103
33103-0K010
Housing Sub-Assy, Extension(Mtm)
[06.2009 - 04.2012] TGN11,16..5F..(ARL,GCC,GEN) TYPE C:REFER 33-01 |
33103-0K010 |
— | ||
| replacement | |||||
|
33103
|
33103
33103-0K011
Housing Sub-Assy, Extension(Mtm)
[06.2009 - 04.2012] TGN11,16..5F..(ARL,GCC,GEN) TYPE C:REFER 33-01 |
33103-0K011 |
— | ||
|
33103
|
33103
33103-0K030
Housing Sub-Assy, Extension(Mtm)
[08.2008 - 04.2012] TGN16..XTR;GGN15..5F..DLX;TGN36..ANCOM..IV3;KUN16..SCB,SMT,XTR;KUN15,35,TGN11..HDC R,HTWC;KUN36,TGN16..5F..(ARL,GCC,SA,TH);KUN16,TGN36..(DCB,SCB)..5F..(ANCOM,ARL,LA, SA)..CBU TYPE D:REFER 33-01 |
33103-0K030 |
— | ||
| replacement | |||||
|
33103
|
33103
33103-0K031
Housing Sub-Assy, Extension(Mtm)
[08.2008 - 04.2012] TGN16..XTR;GGN15..5F..DLX;TGN36..ANCOM..IV3;KUN16..SCB,SMT,XTR;KUN15,35,TGN11..HDC R,HTWC;KUN36,TGN16..5F..(ARL,GCC,SA,TH);KUN16,TGN36..(DCB,SCB)..5F..(ANCOM,ARL,LA, SA)..CBU TYPE D:REFER 33-01 |
33103-0K031 |
— | ||
|
33103
|
33103
33103-0K040
Housing Sub-Assy, Extension(Mtm)
[05.2005 - 08.2008] KUN15..XTR..HDCR;GGN15,KUN16,35,TGN11,16..5F..(ARL,GCC,GEN) TYPE B:REFER 33-01 |
33103-0K040 |
— | ||
| replacement | |||||
|
33103
|
33103
33103-0K041
Housing Sub-Assy, Extension(Mtm)
[05.2005 - 08.2008] KUN15..XTR..HDCR;GGN15,KUN16,35,TGN11,16..5F..(ARL,GCC,GEN) TYPE B:REFER 33-01 |
33103-0K041 |
— | ||
|
33103
|
33103
33103-35180 Housing Sub-Assy, Extension(Mtm)EXTENSION(MTM) [08.2004 - 05.2005] KUN16..XTR;KUN16,TGN16..ARL,GEN TYPE A:REFER 33-01 |
33103-35180 |
US $174.72 |
||
|
33103J
|
33103J
90341-10065 Plug, Straight, No.1[08.2004 - 05.2005] GGN15..5F TYPE C:REFER 33-01; KUN16..XTR;KUN16,TGN16..ARL,GEN TYPE A:REFER 33-01 |
90341-10065 |
US $3.94 |
||
|
33103R
|
33103R
90311-40001 Seal, Oil(For Extension Housing)[08.2004 - 05.2005] KUN16..XTR;KUN16,TGN16..ARL,GEN TYPE A:REFER 33-01 |
90311-40001 |
from US $7.17 |
||
|
33103R
|
33103R
90311-40032 Seal, Oil(For Manual Transmission Extension Housing)[08.2008 - 02.2012] KUN16,36..5F;TGN36..5F..CBU;TGN36..ANCOM..IV3;GGN15,KUN15,35,TGN11,16..5F..(HDCR,H TWC) TYPE D:REFER 33-01 |
90311-40032 |
US $5.82 |
||
| replacement | |||||
|
33103R
|
33103R
90311-40035
Seal, Oil(For Manual Transmission Extension Housing)
[08.2008 - 02.2012] KUN16,36..5F;TGN36..5F..CBU;TGN36..ANCOM..IV3;GGN15,KUN15,35,TGN11,16..5F..(HDCR,H TWC) TYPE D:REFER 33-01 |
90311-40035 |
— | ||
|
33103R
|
33103R
90311-T0019
Seal, Oil(For Manual Transmission Extension Housing)
[06.2009 - 03.2012] TGN11,16..5F..(ARL,GCC,GEN) TYPE C:REFER 33-01 |
90311-T0019 |
— | ||
| replacement | |||||
|
33103R
|
33103R
90311-T0052
Seal, Oil(For Manual Transmission Extension Housing)
[06.2009 - 03.2012] TGN11,16..5F..(ARL,GCC,GEN) TYPE C:REFER 33-01 |
90311-T0052 |
— | ||
|
33103R
|
33103R
90311-T0029
Seal, Oil(For Manual Transmission Extension Housing)
[01.2007 - 08.2008] KUN16,36..5F..(ARL,TH);GGN15,KUN15,35,TGN11,16..5F..(HDCR,HTWC)..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
90311-T0029 |
— | ||
| replacement | |||||
|
33103R
|
33103R
90311-T0051
Seal, Oil(For Manual Transmission Extension Housing)
[01.2007 - 08.2008] KUN16,36..5F..(ARL,TH);GGN15,KUN15,35,TGN11,16..5F..(HDCR,HTWC)..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
90311-T0051 |
— | ||
|
33124F
|
33124F
33124-0K020
Pipe, Oil Receiver, No.1(For Extension Housing)
[06.2009 - 04.2012] TGN11,16..5F..(ARL,GCC,GEN) TYPE C:REFER 33-01 |
33124-0K020 |
— | ||
|
33124F
|
33124F
33124-0K040
Pipe, Oil Receiver, No.1(For Extension Housing)
[08.2008 - 04.2012] KUN16,36..5F;TGN36..5F..CBU;TGN36..ANCOM..IV3;GGN15,KUN15,35,TGN11,16..5F..(HDCR,H TWC) TYPE D:REFER 33-01 |
33124-0K040 |
— | ||
|
33124F
|
33124F
33124-0K050
Pipe, Oil Receiver, No.1(For Extension Housing)
[02.2009 - 08.2011] KUN36..XTR;KUN16,36..5F..(ARL,TH);GGN15,KUN15,35,TGN11,16..5F..(HDCR,HTWC)..(ARL,G CC,GEN,PHL,TH) TYPE B:REFER 33-01 |
33124-0K050 |
— | ||
|
33124F
|
33124F
33124-35090 Pipe, Oil Receiver, No.2(For Extension Housing)[08.2004 - 05.2005] KUN16..XTR;KUN16,TGN16..ARL,GEN TYPE A:REFER 33-01 |
33124-35090 |
US $3.84 |
||
|
33124G
|
33124G
33124-0K010
Pipe, Oil Receiver(For Transfer)
[08.2008 - 04.2012] KUN16,36..5F;TGN36..5F..CBU;TGN36..ANCOM..IV3;GGN15,KUN15,35,TGN11,16..5F..(HDCR,H TWC) TYPE D:REFER 33-01; TGN36..ANCOM..IV3;KUN35,TGN16..LHD..DLX..(PHL,SA);KUN15,35..HDCR..(ANCOM,LA,SA,TH) ;KUN16,36,TGN36..5F..(ANCOM,LA,SA,TH)..CBU T |
33124-0K010 |
— | ||
|
33124G
|
33124G
33124-35100 Pipe, Oil Receiver(For Transfer)[08.2004 - 05.2005] KUN16..XTR;KUN16,TGN16..ARL,GEN TYPE A:REFER 33-01 |
33124-35100 |
from US $5.91 |
||
|
33146
|
33146
33146-04010
Deflector, Extension Housing Dust(Mtm)
[08.2004 - 02.2012] TGN36..SCB;TGN36..DCB..SA;KUN16,36..XTR..TH;KUN36..(DCB,SCB)..5F..SR;KUN36,TGN36.. DCB..5F..DLX;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(D CB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN35,TGN10..DLX..(ANCOM,GCC,GEN,IDN,LA |
33146-04010 |
— | ||
|
90119T0029
|
90119T0029
90119-T0029 Bolt (For Transmission Control Cable Bracket) |
90119-T0029 |
US $1.02 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9011910186
|
9011910186
90119-10186 BOLT |
90119-10186 |
US $2.51 |
||
