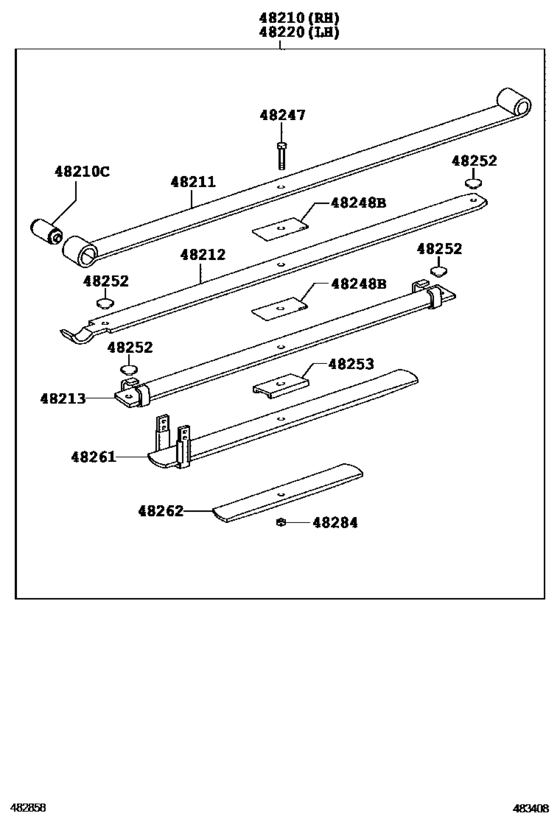

Rear Spring & Shock Absorber ([07.2011 - ] 5-LEAF (1107- )TGN16..SMT,XTR ; (1107- )KUN15..SM T..DLX ; (1107- )GGN15,KUN15,16. .XTR) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- TGN16
- grade
- DLX
- ENGINE
- 2TRFE
- DESTINATION
- TH
- DECK
- SD
- CAB
- SMT
- Model
- HILUX
- From
- 05.2012
- To
- 04.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- CNG
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-0K020
Spring Assy, Rear Rh
[07.2011 - 12.2015] TGN16..SMT,XTR;KUN15..SMT..DLX;GGN15,KUN15,16..XTR 5-LEAF |
48210-0K020 |
— | ||
|
48210C
|
48210C
90389-T0005 Bush(For Rear Spring Leaf)[07.2011 -] TGN16..DCB..SR..GCC;TGN16..(DCB,SMT,XTR)..DLX;KUN15..(SMT,XTR)..DLX..TH;KUN15,16,L AN15..(DCB,XTR)..(ARL,GCC,GEN,PHL,SA);GGN15,KUN3#,TGN15..(DCB,SMT,THDCB,XTR)..(ARL ,GCC,GEN,PHL,TH);GGN25,KUN2#,TGN26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM, |
90389-T0005 |
from US $13.98 |
||
|
48211
|
48211
48201-0K020
Leaf, Rear Spring, No.1
[07.2011 - 12.2015] TGN16..SMT,XTR;KUN15..SMT..DLX;GGN15,KUN15,16..XTR |
48201-0K020 |
— | ||
|
48212
|
48212
48212-0K020
Leaf, Rear Spring, No.2
[07.2011 - 12.2015] TGN16..SMT,XTR;KUN15..SMT..DLX;GGN15,KUN15,16..XTR |
48212-0K020 |
— | ||
|
48213
|
48213
48204-0K020
Leaf, Rear Spring, No.3
[07.2011 - 12.2015] TGN16..SMT,XTR;KUN15..SMT..DLX;GGN15,KUN15,16..XTR |
48204-0K020 |
— | ||
|
48220
|
48220
48210-0K020
Spring Assy, Rear Rh
[07.2011 - 12.2015] TGN16..SMT,XTR;KUN15..SMT..DLX;GGN15,KUN15,16..XTR 5-LEAF |
48210-0K020 |
— | ||
|
48247
|
48247
48247-0K350 Bolt, Rear Spring, Center[10.2011 - 12.2015] KUN15..HDCR..SA;TGN16..(SCB,SMT,XTR)..(ARL,GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX, STD)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,15..(SCB,XTR)..(ARL,GCC,IDN,TH) |
48247-0K350 |
US $7.22 |
||
|
48248B
|
48248B
48248-0K020 Spacer, Rear Spring, No.3REAR SPRING, NO.3 [07.2011 -] KUN26..XTR..SA;KUN15..SMT..DLX;GGN15,KUN15,16,36..XTR;TGN26,36..ANCOM,GCC,GEN;KUN3 5,TGN16..(SMT,XTR)..DLX;GGN25,KUN2#,3#..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,ID N,PHL,PKN) |
48248-0K020 |
from US $1.77 |
||
|
48252
|
48252
48252-0K010 Silencer, Rear Spring[07.2011 -] KUN15,26,36..XTR..SA;KUN35..(SMT,XTR)..DLX;GGN15,25,KUN1#,TGN1#..ARL,GCC,GEN,IDN,P HL,TH;KUN2#,3#,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN ) |
48252-0K010 |
from US $1.48 |
||
|
48253
|
48253
48253-0K010 Spacer, Rear Spring, No.1REAR SPRING, NO.1 [07.2011 -] TGN16..DLX..TH;KUN26,3#..XTR..SA;TGN16..ARL,GCC,GEN;KUN16..(DCB,SCB,XTR)..(5F,5FC) ;KUN15..LHD..DCB..(GCC,GEN,PHL);KUN15,16..RHD..(DCB,XTR)..(GEN,SA);KUN15..(SCB,SMT ,XTR)..(DLX,STD)..(GCC,GEN,PHL,TH);GGN15,25,KUN10,2#,3#,TGN10,11,15,26,36..(D |
48253-0K010 |
US $5.79 |
||
|
48261
|
48261
48207-0K020
Leaf, Rear Helper Spring, No.1
[07.2011 - 12.2015] TGN16..SMT,XTR;KUN15..SMT..DLX;GGN15,KUN15,16..XTR |
48207-0K020 |
— | ||
|
48262
|
48262
48262-0K020
Leaf, Rear Helper Spring, No.2
[07.2011 - 12.2015] TGN16..SMT,XTR;KUN15..SMT..DLX;GGN15,KUN15,16..XTR |
48262-0K020 |
— | ||
|
48284
|
48284
48284-0K310 Nut, Rear Spring Center Bolt[10.2011 -] KUN3#..DCB..GEN;KUN25..SCB..PKN;KUN15,35..XTR..SA;KUN26..LHD..DCB..GEN;KUN26..5FC. .(ARL,GEN);KUN25,TGN26..LHD..(SCB,XTR)..GEN;KUN25,35,TGN26..4FC..(GEN,IDN,PHL);GGN 15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH |
48284-0K310 |
US $7.17 |
