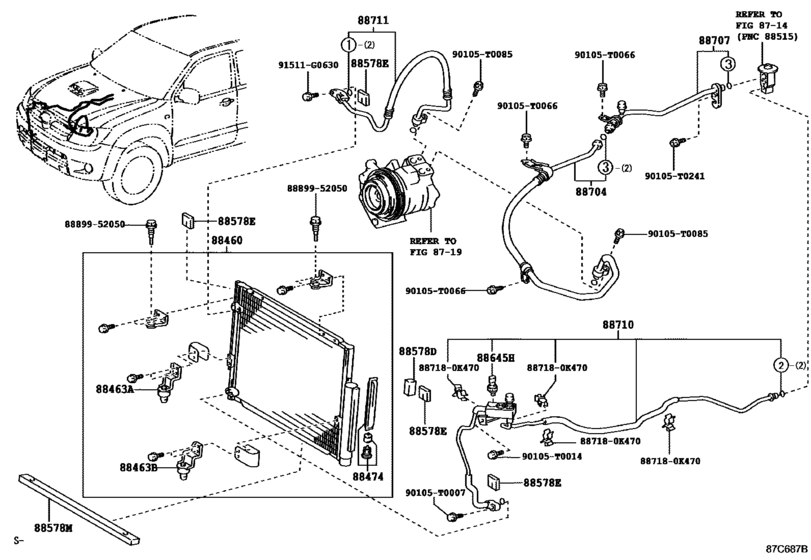

Heating & Air Conditioning - Cooler Piping ([04.2012 - ] (1204- )TGN26,36..ANCOM) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- TGN26
- grade
- DLX
- ENGINE
- 2TRFE
- DESTINATION
- ANCOM
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 04.2012
- To
- 09.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-0K270
Condenser Assy, Cooler
[04.2012 -] TGN26..SCB..ANCOM;TGN36..ANCOM..CBU;GGN25,TGN26..SR..ANCOM; TGN36..IV3;TGN26..DCB..DLX..ANCOM AIR CONDITIONER-SINGLE AIR CONDITIONER |
88460-0K270 |
— | ||
|
88463A
|
88463A
88463-0K070
Bracket, Cooler Condenser, No.2
[04.2012 -] TGN26..SCB..ANCOM;TGN36..ANCOM..CBU;GGN25,TGN26..SR..ANCOM; TGN36..IV3;TGN26..DCB..DLX..ANCOM AIR CONDITIONER-SINGLE AIR CONDITIONER |
88463-0K070 |
— | ||
|
88463B
|
88463B
88463-0K100
Bracket, Cooler Condenser, No.3
[04.2012 -] TGN26..SCB..ANCOM;TGN36..ANCOM..CBU;GGN25,TGN26..SR..ANCOM; TGN36..IV3;TGN26..DCB..DLX..ANCOM AIR CONDITIONER-SINGLE AIR CONDITIONER |
88463-0K100 |
— | ||
|
88474
|
88474
88474-17010 Dryer, Cooler[07.2011 -] TGN36..4FC;TGN26..4FC..GEN;TGN36..SR..HTWC..LA;TGN16..(DCB,XTR)..GEN;KUN26..DLX..I ART..CBU;KUN15,35..LHD..DCB..GEN;GGN25,KUN16..ANCOM,GEN,TH;KUN15,25,35,TGN16..(CO, IDN,PHL,TH)..CBU;TGN26,36..SCB..HTWC..(ANCOM,GEN,LA)..CBU;KUN26,36,TGN26..(DC |
88474-17010 |
from US $65.40 |
||
|
88578D
|
88578D
88578-0K300
Packing, Cooler Pipe, No.1
[04.2012 -] GGN25,TGN26,36..ANCOM |
88578-0K300 |
— | ||
|
88578E
|
88578E
88578-0K290
Packing, Cooler Pipe, No.2
[04.2012 -] GGN25,TGN26,36..ANCOM |
88578-0K290 |
— | ||
|
88578M
|
88578M
88578-0K451
Packing, Cooling Pipe, No.3
[04.2012 -] TGN26,36..ANCOM |
88578-0K451 |
— | ||
|
88645H
|
88645H
88645-34010 Switch, Pressure[08.2011 -] KUN25,35..CO;TGN26..5F..SA;TGN36..DCB..SR;TGN36..4FC..DLX;KUN26..SADCB..SR;TGN26.. 4FC..(LA,SA);TGN36..SCB..HTWC..CBU;GGN25,35,LAN25..DCB..(ANCOM,SA);KUN35,TGN26..(S CB,XTR)..(ANCOM,SA);KUN26,TGN16..DLX..(HTWC,IART)..(LA,SA)..CBU;KUN15,2#,3#,T |
88645-34010 |
from US $32.78 |
||
| replacement | |||||
|
88645H
|
88645H
88645-04040 Switch, Pressure[08.2011 -] KUN25,35..CO;TGN26..5F..SA;TGN36..DCB..SR;TGN36..4FC..DLX;KUN26..SADCB..SR;TGN26.. 4FC..(LA,SA);TGN36..SCB..HTWC..CBU;GGN25,35,LAN25..DCB..(ANCOM,SA);KUN35,TGN26..(S CB,XTR)..(ANCOM,SA);KUN26,TGN16..DLX..(HTWC,IART)..(LA,SA)..CBU;KUN15,2#,3#,T |
88645-04040 |
US $120.41 |
||
|
88704
|
88704
88704-0K392
Hose Sub-Assy, Suction
[04.2012 -] TGN26..SR..ANCOM;TGN26..SCB..ANCOM;TGN36..ANCOM..CBU; TGN36..IV3;TGN26..DCB..DLX..ANCOM AIR CONDITIONER-SINGLE AIR CONDITIONER |
88704-0K392 |
— | ||
|
88707
|
88707
88707-0K160
Pipe Sub-Assy, Suction
[04.2012 -] TGN26..SCB..ANCOM;TGN36..ANCOM..CBU;GGN25,TGN26..SR..ANCOM; TGN36..IV3;TGN26..DCB..DLX..ANCOM AIR CONDITIONER-SINGLE AIR CONDITIONER |
88707-0K160 |
— | ||
|
88710
|
88710
88710-0K500
Tube Assy, Air Conditioner
[04.2012 -] TGN26..SCB..ANCOM;TGN36..ANCOM..CBU;GGN25,TGN26..SR..ANCOM; TGN36..IV3;TGN26..DCB..DLX..ANCOM AIR CONDITIONER-SINGLE AIR CONDITIONER |
88710-0K500 |
— | ||
|
88711
|
88711
88711-0K331
Hose, Cooler Refrigerant Discharge, No.1
[04.2012 -] TGN26..SR..ANCOM;TGN26..SCB..ANCOM;TGN36..ANCOM..CBU; TGN36..IV3;TGN26..DCB..DLX..ANCOM AIR CONDITIONER-SINGLE AIR CONDITIONER |
88711-0K331 |
— | ||
|
90105T0007
|
90105T0007
90105-T0007 BOLT FLANGE |
90105-T0007 |
US $0.42 |
||
|
90105T0014
|
90105T0014
90105-T0014
BOLT FLANGE
|
90105-T0014 |
— | ||
|
90105T0066
|
90105T0066
90105-T0066
BOLT FLANGE
|
90105-T0066 |
— | ||
|
90105T0085
|
90105T0085
90105-T0085
BOLT FLANGE
|
90105-T0085 |
— | ||
|
90105T0241
|
90105T0241
90105-T0241
BOLTFLANGE
|
90105-T0241 |
— | ||
|
91511G0630
|
91511G0630
91511-G0630 BOLT FLANGE |
91511-G0630 |
US $1.46 |
||
|
887180K470
|
887180K470
88718-0K470
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0K470 |
— | ||
|
8889952050
|
8889952050
88899-52050 Cover, Evaporator |
88899-52050 |
US $2.63 |
||
