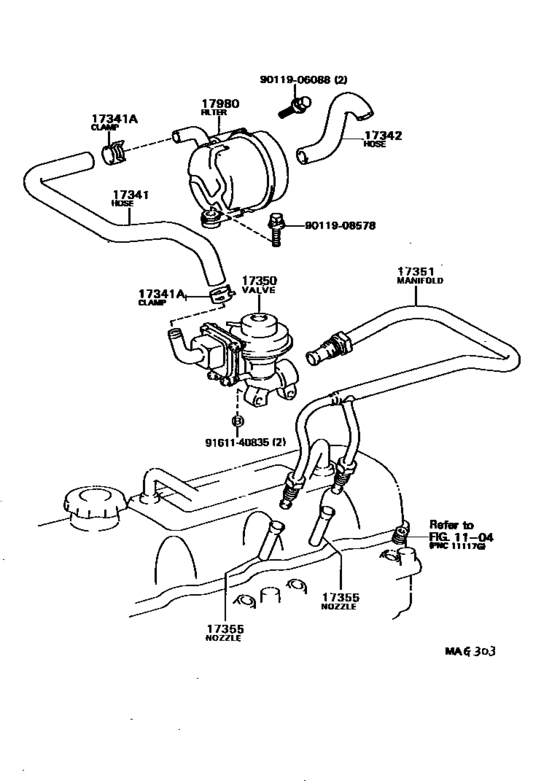

Manifold Air Injection System ([08.1986 - 08.1988] (8608-8808)2Y,4Y..YN56,67..EUR) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1983 - 1988
- Sales region
- General
- Frame
- YN56
- grade
- STD
- body
- T1
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- CAB
- RCB
- Model
- HILUX
- From
- 08.1983
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341
|
17341
17341-73030
Hose, No.1(For Air Injection System)
[08.1986 - 08.1988] 2Y,4Y..YN56,67..EUR |
17341-73030 |
— | ||
|
17341A
|
17341A
90467-26002
Clip(For Ventilation Hose)
[08.1986 - 08.1988] 2Y,4Y..YN56,67..EUR |
90467-26002 |
— | ||
| replacement | |||||
|
17341A
|
17341A
96134-52600 Clip Or Clamp(For Ventilation Hose)[08.1986 - 08.1988] 2Y,4Y..YN56,67..EUR |
96134-52600 |
from US $2.87 |
||
|
17342
|
17342
17342-73010 Hose, No.2(For Air Injection System)[08.1986 - 08.1988] 2Y,4Y..YN56,67..EUR |
17342-73010 |
US $22.71 |
||
|
17350
|
17350
17350-71050 Valve Assy, ReedREED [08.1986 - 08.1988] 2Y,4Y..YN56,67..EUR |
17350-71050 |
US $215.49 |
||
|
17351
|
17351
17351-71020 Manifold, Air InjectionAIR INJECTION [08.1986 - 08.1988] 2Y,4Y..YN56,67..EUR |
17351-71020 |
US $192.19 |
||
|
17355
|
17355
17355-71010 Nozzle, Air Injection[08.1986 - 08.1988] 2Y,4Y..YN56,67..EUR |
17355-71010 |
US $12.38 |
||
|
17980
|
17980
17980-73010
Filter Assy, Air Suction
[08.1986 - 08.1988] 2Y,4Y..YN56,67..EUR |
17980-73010 |
— | ||
|
9011906088
|
9011906088
90119-06088 Bolt, W/washer (For Floor Shift) |
90119-06088 |
US $1.14 |
||
|
9011908578
|
9011908578
90119-08578 New Genuine Part |
90119-08578 |
US $1.89 |
||
| replacement | |||||
|
9011908578
|
9011908578
90119-08B80 New Genuine Part |
90119-08B80 |
US $1.75 |
||
|
9161140835
|
9161140835
91611-40835
Bolt(For Clutch Release Cylinder Setting)
|
91611-40835 |
— | ||
| replacement | |||||
|
9161140835
|
9161140835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
