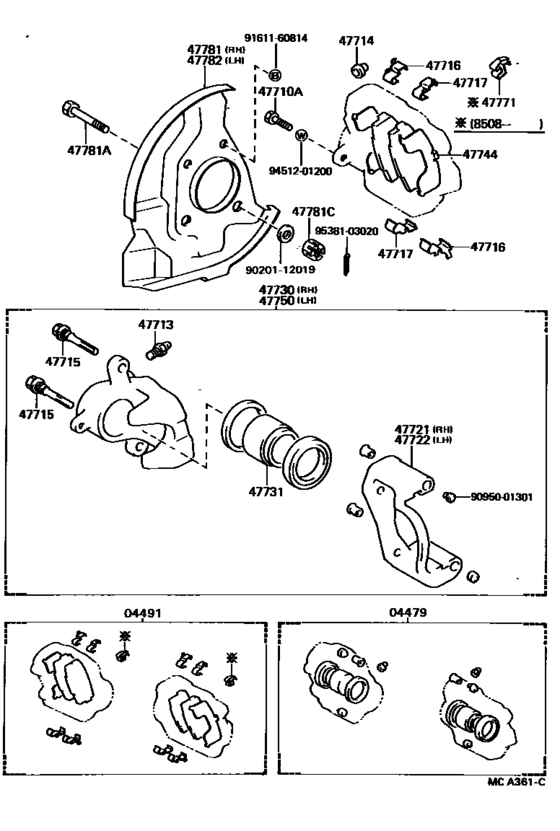

Front Disc Brake Caliper & Dust Cover ([09.1983 - 08.1988] (8309-8808)YN57,58..SR5..ARL) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1983 - 1987
- Sales region
- Europe
- Frame
- YN57
- grade
- SR5
- body
- T1
- ENGINE
- 3Y
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- CAB
- XTR
- Model
- HILUX
- From
- 09.1983
- Engine
- 3YC
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04479
|
04479
04479-22010 Cylinder Kit, Disc Brake, Front[08.1983 - 08.1988] YN57,58..SR5..ARL |
04479-22010 |
US $60.48 |
||
|
04491
|
04491
04491-22140 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [08.1983 - 08.1986] YN57..SR5..ARL |
04491-22140 |
US $112.11 |
||
| replacement | |||||
|
04491
|
04491
04465-22140 Pad Kit, Disc Brake, Front[08.1983 - 08.1986] YN57..SR5..ARL |
04465-22140 |
US $157.44 |
||
|
04491
|
04491
04491-35090
Pad Kit, Disc Brake, Front
[08.1986 - 11.1987] YN57,58..SR5..ARL |
04491-35090 |
— | ||
| replacement | |||||
|
04491
|
04491
04465-22140 Pad Kit, Disc Brake, Front[08.1986 - 11.1987] YN57,58..SR5..ARL |
04465-22140 |
US $157.44 |
||
|
47710A
|
47710A
90101-12030 Bolt, Hexagon(For Front Disc Brake Caliper)[08.1983 - 09.1988] LN5#,RN5#,YN5# *12-1.25PX31-20 |
90101-12030 |
US $3.49 |
||
|
47713
|
47713
47547-35020 Plug, Bleeder(For Front Disc Brake)[08.1983 - 08.1988] YN57,58..SR5..ARL |
47547-35020 |
from US $3.94 |
||
|
47714
|
47714
31478-30010 Bleeder Plug Cap[08.1983 - 07.1998] LN5#,6#,RN5#,6#,YN5#,6# |
31478-30010 |
from US $1.52 |
||
|
47715
|
47715
47715-22010 Pin, Main(For Front Disc Brake Cylinder Slide)[08.1983 - 08.1988] YN57,58..SR5..ARL |
47715-22010 |
from US $9.17 |
||
|
47716
|
47716
47716-22010 Plate, Pad Support, No.1(For Front Disc Brake)[08.1983 - 08.1988] YN57,58..SR5..ARL |
47716-22010 |
from US $2.87 |
||
|
47717
|
47717
47717-22010 Plate, Pad Support, No.2(For Front Disc Brake)[08.1983 - 08.1988] YN57,58..SR5..ARL |
47717-22010 |
from US $2.91 |
||
|
47721
|
47721
47721-35010 Mounting, Front Disc Brake Cylinder, RhFRONT DISC BRAKE CYLINDER, RH [08.1983 - 08.1988] YN57,58..SR5..ARL |
47721-35010 |
US $132.50 |
||
|
47722
|
47722
47722-35010 Mounting, Front Disc Brake Cylinder, LhFRONT DISC BRAKE CYLINDER, LH [08.1983 - 08.1988] YN57,58..SR5..ARL |
47722-35010 |
US $132.50 |
||
|
47730
|
47730
47730-35030 Cylinder Assy, Front Disc Brake, RhFRONT DISC BRAKE, RH [08.1983 - 08.1988] YN57,58..SR5..ARL |
47730-35030 |
US $614.43 |
||
|
47731
|
47731
47731-30050 Piston, Front Disc Brake[08.1983 - 08.1988] YN57,58..SR5..ARL |
47731-30050 |
US $46.54 |
||
|
47744
|
47744
47744-22040 Shim, Anti-Squeal, No.1(For Front Disc Brake)[08.1983 - 11.1987] YN57,58..SR5..ARL |
47744-22040 |
US $3.64 |
||
|
47750
|
47750
47750-35030 Cylinder Assy, Disc Brake, LhDISC BRAKE, LH [08.1983 - 08.1988] YN57,58..SR5..ARL |
47750-35030 |
US $614.43 |
||
|
47771
|
47771
47771-22030 Plate, Pad Wear Indicator, No.1[08.1985 - 08.1988] YN57,58..SR5..ARL |
47771-22030 |
from US $2.51 |
||
|
47781
|
47781
47781-35030
Cover, Disc Brake Dust, Front Rh
[08.1983 - 08.1988] YN57,58..SR5..ARL |
47781-35030 |
— | ||
|
47781A
|
47781A
90102-12006
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
[08.1983 - 08.1991] LN5#,RN5#,YN5# |
90102-12006 |
— | ||
|
47781C
|
47781C
90171-12006 Nut(For Dust Cover To Steering Knuckle Arm Setting)[08.1983 - 07.1998] YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
90171-12006 |
US $2.80 |
||
|
47782
|
47782
47782-35030
Cover, Disc Brake Dust, Front Lh
[08.1983 - 08.1988] YN57,58..SR5..ARL |
47782-35030 |
— | ||
|
9020112019
|
9020112019
90201-12019 WASHER |
90201-12019 |
from US $1.11 |
||
|
9095001301
|
9095001301
90950-01301 Plug, Hole(For Rear Disc Brake Cylinder) |
90950-01301 |
from US $1.09 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.76 |
||
