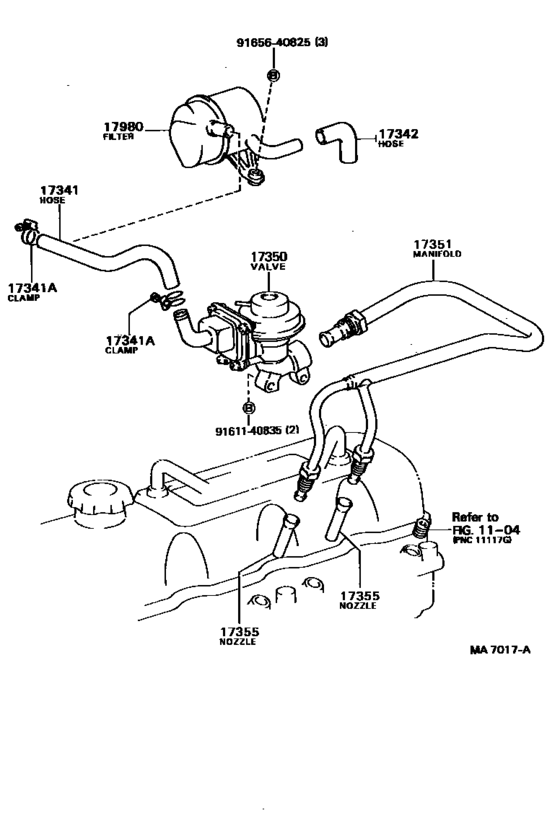

Manifold Air Injection System ([08.1983 - 08.1985] (8308-8508)1YC,3Y..YN55,57,6#..ARL) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1983 - 1987
- Sales region
- Europe
- Frame
- YN57
- grade
- SR5
- body
- T1
- ENGINE
- 3Y
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- CAB
- XTR
- Model
- HILUX
- From
- 09.1983
- Engine
- 3YC
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341
|
17341
17341-71020 Hose, No.1(For Air Injection System)[08.1983 - 08.1985] 3Y..YN57,6#..ARL *NSW |
17341-71020 |
US $31.89 |
||
|
17341
|
17341
17341-73030
Hose, No.1(For Air Injection System)
[08.1986 - 08.1987] 1YC,3Y,4Y..YN55,57,6#..ARL *NSW |
17341-73030 |
— | ||
|
17341A
|
17341A
90467-26002
Clip(For Ventilation Hose)
[08.1986 - 08.1987] 1YC,3Y,4Y..YN55,57,6#..ARL *NSW |
90467-26002 |
— | ||
| replacement | |||||
|
17341A
|
17341A
96134-52600 Clip Or Clamp(For Ventilation Hose)[08.1986 - 08.1987] 1YC,3Y,4Y..YN55,57,6#..ARL *NSW |
96134-52600 |
from US $2.87 |
||
|
17341A
|
17341A
96111-10300 Clamp Or Clip, No.1(For Air Injection System Hose, No.1)[08.1983 - 08.1985] 3Y..YN57,6#..ARL *NSW |
96111-10300 |
US $1.79 |
||
|
17342
|
17342
17342-71010 Hose, No.2(For Air Injection System)[08.1983 - 08.1985] 3Y..YN57,6#..ARL *NSW |
17342-71010 |
US $12.81 |
||
|
17342
|
17342
17342-73010 Hose, No.2(For Air Injection System)[08.1986 - 08.1987] 1YC,3Y,4Y..YN55,57,6#..ARL *NSW |
17342-73010 |
US $22.71 |
||
|
17350
|
17350
17350-71040 Valve Assy, Reed[08.1985 - 08.1986] 1YC,3Y,4Y..YN55,57,63,67..ARL *NSW |
17350-71040 |
US $195.10 |
||
|
17350
|
17350
17350-71050 Valve Assy, ReedREED [08.1983 - 08.1985] 1YC..YN55; 3Y..YN57,6#..ARL *NSW |
17350-71050 |
US $215.49 |
||
|
17350
|
17350
17350-72010 Valve Assy, Reed[08.1986 - 08.1987] 1YC,3Y,4Y..YN55,57,6#..ARL *NSW |
17350-72010 |
US $173.26 |
||
|
17351
|
17351
17306-73011
Manifold, Air Injection
[08.1985 - 08.1987] 1YC,3Y,4Y..YN55,57,63,67..ARL *NSW |
17306-73011 |
— | ||
|
17351
|
17351
17351-71020 Manifold, Air InjectionAIR INJECTION [08.1983 - 08.1985] 1YC..YN55; 3Y..YN57,6#..ARL *NSW |
17351-71020 |
US $192.19 |
||
|
17355
|
17355
17355-71010 Nozzle, Air Injection[08.1983 - 08.1987] 1YC..YN55; 3Y,4Y..YN57,60,63,65,67..ARL *NSW |
17355-71010 |
US $12.38 |
||
|
17980
|
17980
17980-71020 Filter Assy, Air Suction[08.1983 - 08.1985] 3Y..YN57,6#..ARL *NSW |
17980-71020 |
US $262.08 |
||
|
17980
|
17980
17980-73010
Filter Assy, Air Suction
[08.1986 - 08.1987] 1YC,3Y,4Y..YN55,57,6#..ARL *NSW |
17980-73010 |
— | ||
|
9161140835
|
9161140835
91611-40835
Bolt(For Clutch Release Cylinder Setting)
|
91611-40835 |
— | ||
| replacement | |||||
|
9161140835
|
9161140835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9165640825
|
9165640825
91656-40825
New Genuine Part
|
91656-40825 |
— | ||
| replacement | |||||
|
9165640825
|
9165640825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
