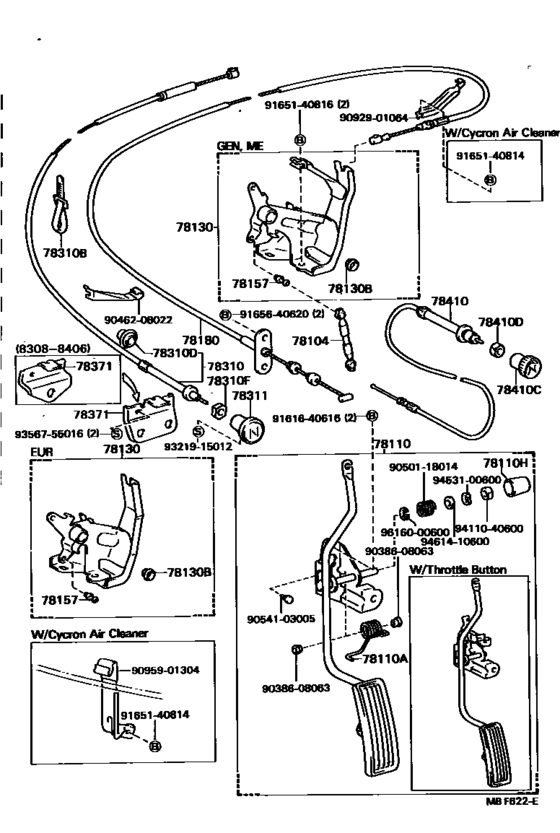

Accelerator Link ([08.1983 - 08.1984] (8308-8408)YN6#..LHD) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1984 - 1985
- Sales region
- Europe
- Frame
- YN60
- grade
- SR5
- body
- WG
- ENGINE
- 3Y
- TRANSMISSION
- MTM
- DESTINATION
- ME
- Model
- HILUX
- From
- 03.1984
- To
- 08.1985
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78104
|
78104
78104-89106 Rod Sub-Assy, Accelerator Connecting, No.2[08.1983 - 07.1998] YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
78104-89106 |
from US $8.04 |
||
|
78110
|
78110
78120-89116
Rod Assy, Accelerator Pedal
[08.1984 - 07.1998] YN50,52,55,56,57,6#..LHD |
78120-89116 |
— | ||
|
78110
|
78110
78120-89122
Rod Assy, Accelerator Pedal
[08.1983 - 08.1984] YN6#..LHD |
78120-89122 |
— | ||
|
78110A
|
78110A
90508-14075
Spring (For Accelerator Pedal Rod)
[08.1983 - 07.1998] YN50,52,55,56,57,6#..LHD |
90508-14075 |
— | ||
|
78110H
|
78110H
78116-22010
Cover (For Accelerator Pedal Rod)
[08.1983 - 08.1984] LN6#,YN6# |
78116-22010 |
— | ||
|
78130
|
78130
78130-89110 Bellcrank Assy, AcceleratorACCELERATOR [08.1983 - 07.1998] YN58..4F;YN58..SR5..SA;YN50,51,52,55,56,57,60,65..(4F,4FC,4H,5F)..(GEN,ME,SA) |
78130-89110 |
from US $64.21 |
||
|
78130B
|
78130B
90386-08003
Bush, Accelerator Bellcrank
[08.1983 - 07.1998] YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
90386-08003 |
— | ||
|
78157
|
78157
78157-10010 Ball, Accelerator Joint[08.1983 - 07.1998] YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
78157-10010 |
US $1.41 |
||
|
78180
|
78180
78180-89137 Wire Assy, AcceleratorACCELERATOR [03.1984 - 11.1986] YN60,63..SR5..ME |
78180-89137 |
US $52.42 |
||
| replacement | |||||
|
78180
|
78180
78180-89148 Wire Assy, AcceleratorACCELERATOR [03.1984 - 11.1986] YN60,63..SR5..ME |
78180-89148 |
from US $50.84 |
||
|
78310
|
78310
78310-89113 Cable Assy, ChokeCHOKE [08.1983 - 08.1985] YN50,52,55,57,6#..LHD..(GEN,ME) |
78310-89113 |
US $46.88 |
||
|
78310
|
78310
78310-89114 Cable Assy, ChokeCHOKE [01.1984 - 08.1984] YN50,52,55,57,6#..ME *SAA |
78310-89114 |
US $46.88 |
||
|
78310B
|
78310B
90463-12002 Clamp, Choke Cable[08.1983 - 08.1986] YN50,52,55,57,60,65..LHD..(GEN,ME) |
90463-12002 |
US $1.89 |
||
|
78310D
|
78310D
90480-21005 Grommet, Choke Cable[08.1983 - 08.1986] YN50,52,55,57,60,65..GEN,ME,SA |
90480-21005 |
US $3.20 |
||
|
78310F
|
78310F
90170-11006 Nut, Throttle[08.1983 - 08.1986] YN50,52,55,57,60,65..GEN,ME,SA |
90170-11006 |
US $1.79 |
||
|
78311
|
78311
78311-89103 Knob, Choke Control CableCHOKE ROD [08.1983 - 08.1986] YN50,52,55,57,60,65..GEN,ME,SA |
78311-89103 |
US $8.59 |
||
|
78371
|
78371
77338-89101 Bracket, Fuel Tank Cap Lock Control RodFUEL TANK CAP LOCK CONTROL ROD [06.1984 - 08.1986] YN50,52,55,57,60,65..LHD..(GEN,ME) W/O FUEL LID OPENER |
77338-89101 |
US $9.90 |
||
|
78371
|
78371
78371-89101 Bracket, Fuel Tank Cap Lock Control RodCHOKE CONTROL CABLE [08.1983 - 06.1984] YN50,52,55,57,6#..LHD..(GEN,ME) W/O FUEL LID OPENER |
78371-89101 |
US $9.76 |
||
| replacement | |||||
|
78371
|
78371
77338-89101 Bracket, Fuel Tank Cap Lock Control RodFUEL TANK CAP LOCK CONTROL ROD [08.1983 - 06.1984] YN50,52,55,57,6#..LHD..(GEN,ME) W/O FUEL LID OPENER |
77338-89101 |
US $9.90 |
||
|
9038608063
|
9038608063
90386-08063
Bush (For Accelerator Pedal Rod)
|
90386-08063 |
— | ||
|
9046208022
|
9046208022
90462-08022 New Genuine Part |
90462-08022 |
US $5.39 |
||
|
9050118014
|
9050118014
90501-18014 New Genuine Part |
90501-18014 |
US $2.33 |
||
|
9054103005
|
9054103005
90541-03005 Cushion, Glove Compartment Door Check |
90541-03005 |
from US $3.58 |
||
|
9092901064
|
9092901064
90929-01064 New Genuine Part |
90929-01064 |
US $6.84 |
||
|
9095901304
|
9095901304
90959-01304 New Genuine Part |
90959-01304 |
US $6.99 |
||
|
9161640616
|
9161640616
91616-40616 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91616-40616 |
US $1.89 |
||
| replacement | |||||
|
9161640616
|
9161640616
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
9321915012
|
9321915012
93219-15012 New Genuine Part |
93219-15012 |
US $3.05 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9453100600
|
9453100600
94531-00600 Washer(For Outer Lever Oil Setting) |
94531-00600 |
from US $0.74 |
||
|
9461410600
|
9461410600
94614-10600
Washer (For Primary Regulator Valve)
|
94614-10600 |
— | ||
| replacement | |||||
|
9461410600
|
9461410600
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
