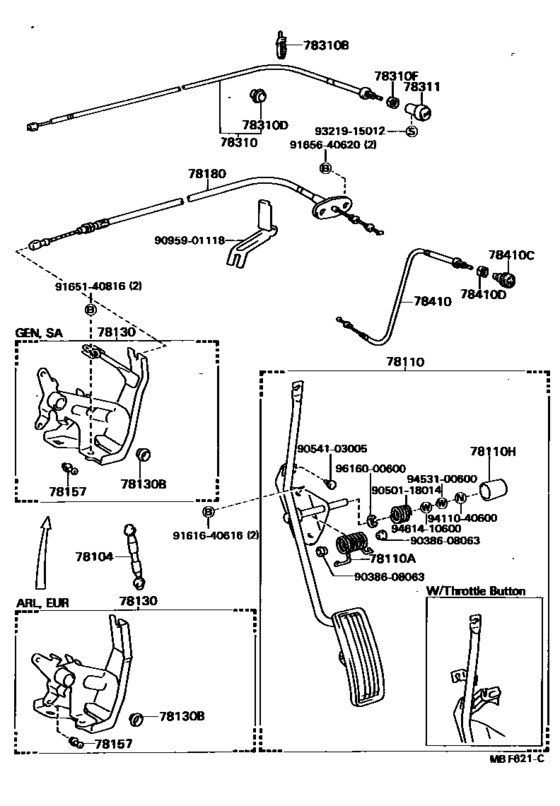

Accelerator Link ([08.1983 - 08.1984] (8308-8408)YN6#..RHD) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1984 - 1985
- Sales region
- Europe
- Frame
- YN60
- grade
- SR5
- body
- WG
- ENGINE
- 3Y
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HILUX
- From
- 03.1984
- Engine
- 3YC
- To
- 08.1985
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78104
|
78104
78104-89106 Rod Sub-Assy, Accelerator Connecting, No.2[08.1983 - 07.1998] YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
78104-89106 |
from US $8.04 |
||
|
78110
|
78110
78120-89112
Rod Assy, Accelerator Pedal
[08.1984 - 06.1985] YN6#..RHD..(ARL,EUR,GEN) |
78120-89112 |
— | ||
|
78110
|
78110
78120-89119
Rod Assy, Accelerator Pedal
[08.1983 - 08.1984] YN6#..RHD..(ARL,EUR,GEN) |
78120-89119 |
— | ||
|
78110
|
78110
78120-89125
Rod Assy, Accelerator Pedal
[08.1983 - 08.1984] YN6#..RHD..(ARL,GEN) W/THROTTLE BUTTON |
78120-89125 |
— | ||
|
78110
|
78110
78120-89128
Rod Assy, Accelerator Pedal
[08.1984 - 06.1985] YN65..SA; YN6#..RHD..(ARL,GEN) W/THROTTLE BUTTON |
78120-89128 |
— | ||
|
78110
|
78110
78120-89130 Rod Assy, Accelerator Pedal[06.1985 - 07.1998] YN60,63,65,67..RHD..(ARL,EUR,GEN); YN58..4F;YN58..SR5,STD;YN50,51,55,56,57..RHD..(4F,4FC,4H,5F) |
78120-89130 |
US $48.19 |
||
|
78110
|
78110
78120-89131
Rod Assy, Accelerator Pedal
[06.1985 - 04.1986] YN65,67..SA; YN60,63,65,67..RHD..(ARL,GEN) W/THROTTLE BUTTON |
78120-89131 |
— | ||
|
78110A
|
78110A
90508-14066 Spring (For Accelerator Pedal Rod)[08.1983 - 04.1986] YN50,55,56,57,60,63,65,67..RHD |
90508-14066 |
US $1.16 |
||
|
78110H
|
78110H
78116-22010
Cover (For Accelerator Pedal Rod)
[08.1983 - 08.1984] LN6#,YN6# |
78116-22010 |
— | ||
|
78130
|
78130
78130-89109 Bellcrank Assy, Accelerator[08.1983 - 07.1998] YN55,56,57,60,63,65,67..ARL,EUR |
78130-89109 |
US $141.23 |
||
|
78130B
|
78130B
90386-08003
Bush, Accelerator Bellcrank
[08.1983 - 07.1998] YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
90386-08003 |
— | ||
|
78157
|
78157
78157-10010 Ball, Accelerator Joint[08.1983 - 07.1998] YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
78157-10010 |
US $1.41 |
||
|
78180
|
78180
78180-89128
Wire Assy, Accelerator
[08.1983 - 11.1986] YN50,51,55,56,57,58,60,63,65,67..RHD..CBR |
78180-89128 |
— | ||
| replacement | |||||
|
78180
|
78180
78180-89147 Wire Assy, Accelerator[08.1983 - 11.1986] YN50,51,55,56,57,58,60,63,65,67..RHD..CBR |
78180-89147 |
US $43.68 |
||
|
78180
|
78180
78180-89147 Wire Assy, Accelerator[11.1987 - 07.1998] YN58..4F;YN58..SR5,STD;YN50,51,55,56,57,6#..RHD..(4F,4FC,4H,5F)..CBR |
78180-89147 |
US $43.68 |
||
|
78410
|
78410
78401-89106
Cable Assy, Throttle Control
[08.1983 - 07.1998] LN50,51,55,56,60,61,65..RHD; YN60,63,65,67..RHD..(ARL,GEN)..CBR W/THROTTLE BUTTON |
78401-89106 |
— | ||
|
78410C
|
78410C
78411-89102
Knob, Throttle Cable
[08.1983 - 07.1998] YN6#..(ARL,GEN)..CBR W/THROTTLE BUTTON |
78411-89102 |
— | ||
|
78410D
|
78410D
90170-11006 Nut, Throttle[08.1983 - 07.1998] LN50,51,55,56,60,61,65; YN6#..(ARL,GEN)..CBR W/THROTTLE BUTTON |
90170-11006 |
US $1.79 |
||
|
9038608063
|
9038608063
90386-08063
Bush (For Accelerator Pedal Rod)
|
90386-08063 |
— | ||
|
9050118014
|
9050118014
90501-18014 New Genuine Part |
90501-18014 |
US $2.33 |
||
|
9054103005
|
9054103005
90541-03005 Cushion, Glove Compartment Door Check |
90541-03005 |
from US $3.58 |
||
|
9095901118
|
9095901118
90959-01118 New Genuine Part |
90959-01118 |
US $5.24 |
||
|
9161640616
|
9161640616
91616-40616 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91616-40616 |
US $1.89 |
||
| replacement | |||||
|
9161640616
|
9161640616
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
9321915012
|
9321915012
93219-15012 New Genuine Part |
93219-15012 |
US $3.05 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9453100600
|
9453100600
94531-00600 Washer(For Outer Lever Oil Setting) |
94531-00600 |
from US $0.74 |
||
|
9461410600
|
9461410600
94614-10600
Washer (For Primary Regulator Valve)
|
94614-10600 |
— | ||
| replacement | |||||
|
9461410600
|
9461410600
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
