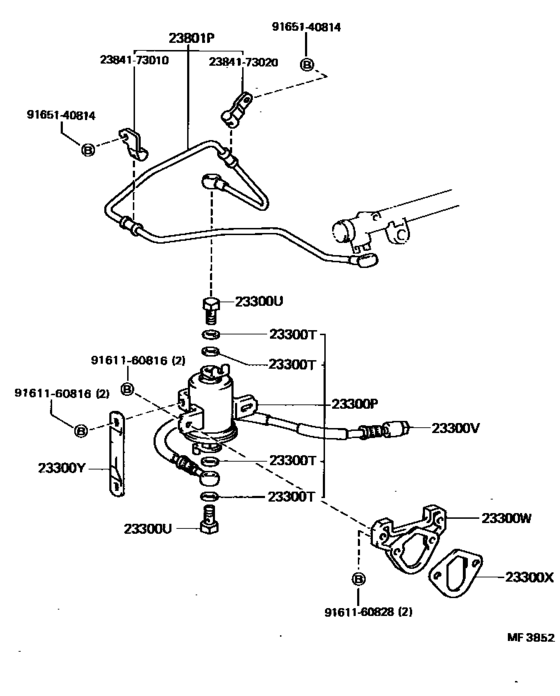

Fuel Injection System ([08.1986 - 03.1989] (8608-8903)4YE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1986 - 1989
- Sales region
- Europe
- Frame
- YN63
- grade
- SR5
- body
- WG
- ENGINE
- 4YE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- HILUX
- From
- 08.1986
- To
- 03.1989
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300P
|
23300P
23300-79165
Filter, Fuel(For Efi)
[08.1986 - 03.1989] 4YE..YN63 |
23300-79165 |
— | ||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[08.1986 - 03.1989] 22REC..RN61; 4YE..YN63 |
90430-12005 |
from US $0.68 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1986 - 03.1989] 22REC..RN61; 4YE..YN63 |
90401-12097 |
from US $2.94 |
||
|
23300V
|
23300V
90923-01342 Hose, Fuel(For Fuel Inlet)[08.1986 - 03.1989] 4YE..YN63 |
90923-01342 |
US $125.22 |
||
|
23300W
|
23300W
23264-73010 Bracket, Fuel Filter[08.1986 - 03.1989] 4YE..YN63 |
23264-73010 |
US $9.61 |
||
|
23300X
|
23300X
90923-06006 Insulator(For Fuel Filter Bracket)[08.1986 - 03.1989] 4YE..YN63 |
90923-06006 |
US $13.40 |
||
| replacement | |||||
|
23300X
|
23300X
90923-06013 Insulator(For Fuel Filter Bracket)[08.1986 - 03.1989] 4YE..YN63 |
90923-06013 |
US $12.81 |
||
|
23300Y
|
23300Y
23921-73010 Support, Fuel Filter[08.1986 - 03.1989] 4YE..YN63 |
23921-73010 |
US $5.53 |
||
|
23801P
|
23801P
23801-73010
Pipe Sub-Assy, Fuel, No.1
[08.1986 - 03.1989] 4YE..YN63 |
23801-73010 |
— | ||
|
2384173010
|
2384173010
23841-73010
Clamp, Fuel Pipe(hose), No.1
|
23841-73010 |
— | ||
|
2384173020
|
2384173020
23841-73020
Clamp, Fuel Pipe(hose), No.1
|
23841-73020 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161160828
|
9161160828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.97 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
