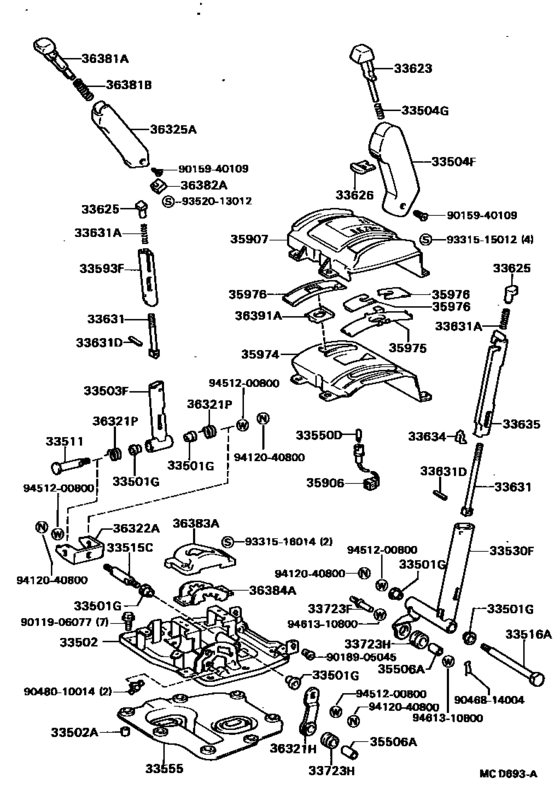

Shift Lever & Retainer ([08.1986 - ] (8608- )YN63..EFI) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1986 - 1989
- Sales region
- Europe
- Frame
- YN63
- grade
- SR5
- body
- WG
- ENGINE
- 4YE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- HILUX
- From
- 08.1986
- To
- 03.1989
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33501G
|
33501G
90385-11003 Bush(For Control Shaft)[08.1986 - 03.1989] YN63..EFI |
90385-11003 |
from US $1.11 |
||
|
33502
|
33502
33502-35110 Plate Sub-Assy, Shift Lever[08.1986 - 03.1989] YN63..EFI |
33502-35110 |
US $55.18 |
||
|
33502A
|
33502A
90387-06065 Collar (For Floor Shift Setting)[08.1983 - 08.1989] LN56,YN57,63..4FC OD=8.8 |
90387-06065 |
US $3.23 |
||
|
33503F
|
33503F
33503-35060
Lever Sub-Assy, Shift(For Floor Shift)
[08.1986 - 03.1989] YN63..EFI |
33503-35060 |
— | ||
|
33504F
|
33504F
33542-35040-03 Knob Sub-Assy, Shift Lever[08.1986 - 03.1989] YN63..EFI GRAY,GRAY,TRIM1# |
33542-35040-03 |
US $50.38 |
||
|
33504F
|
33504F
33542-35040-05 Knob Sub-Assy, Shift Lever[08.1986 - 03.1989] YN63..EFI BEIGE,BEIGE,TRIM4# |
33542-35040-05 |
US $50.38 |
||
|
33504G
|
33504G
90501-07009 Spring, Compression (For Shift Lever Knob)[08.1986 - 03.1989] YN63..EFI |
90501-07009 |
from US $4.49 |
||
|
33511
|
33511
33511-35120
Shaft Sub-Assy, Control (For Floor Shift)
[08.1986 - 03.1989] YN63..EFI |
33511-35120 |
— | ||
|
33515C
|
33515C
33515-35010 Shaft, Control, No.2[08.1986 - 03.1989] YN63..EFI |
33515-35010 |
US $4.37 |
||
|
33516A
|
33516A
33516-35010 Shaft, Control, No.3[08.1986 - 03.1989] YN63..EFI |
33516-35010 |
US $9.14 |
||
|
33530F
|
33530F
33501-35200 Lever Assy, Shift (For Floor Shift)[08.1986 - 03.1989] YN63..EFI |
33501-35200 |
US $66.10 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[08.1986 - 03.1989] YN63..EFI 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.09 |
||
|
33555
|
33555
33555-35080 Boot, Shift Lever[08.1986 - 03.1989] YN63..EFI |
33555-35080 |
US $29.27 |
||
|
33593F
|
33593F
33593-35010
Holder, Spring (For Floor Shift)
[08.1986 - 03.1989] YN63..EFI |
33593-35010 |
— | ||
|
33623
|
33623
33623-35010-03 Button, Shift Lever Knob[08.1986 - 03.1989] YN63..EFI GRAY,GRAY,TRIM1# |
33623-35010-03 |
US $8.30 |
||
| replacement | |||||
|
33623
|
33623
33623-35010-01
Button, Shift Lever Knob
[08.1986 - 03.1989] YN63..EFI GRAY,GRAY,TRIM1# |
33623-35010-01 |
— | ||
|
33623
|
33623
33623-35010-05 Button, Shift Lever Knob[08.1986 - 03.1989] YN63..EFI BEIGE,BEIGE,TRIM4# |
33623-35010-05 |
US $8.30 |
||
| replacement | |||||
|
33623
|
33623
33623-35010-01
Button, Shift Lever Knob
[08.1986 - 03.1989] YN63..EFI BEIGE,BEIGE,TRIM4# |
33623-35010-01 |
— | ||
|
33625
|
33625
33625-35010
Sleeve, Shift Lever Knob
[08.1986 - 03.1989] YN63..EFI TRANSMISSION |
33625-35010 |
— | ||
|
33625
|
33625
33625-35020
Sleeve, Shift Lever Knob
[08.1986 - 03.1989] YN63..EFI TRANSFER |
33625-35020 |
— | ||
|
33626
|
33626
33626-35010-03 Stopper, Shift Lever Button[08.1986 - 03.1989] YN63..EFI GRAY,GRAY,TRIM1# |
33626-35010-03 |
US $6.70 |
||
| replacement | |||||
|
33626
|
33626
33626-35010-01
Stopper, Shift Lever Button
[08.1986 - 03.1989] YN63..EFI GRAY,GRAY,TRIM1# |
33626-35010-01 |
— | ||
|
33626
|
33626
33626-35010-05 Stopper, Shift Lever Button[08.1986 - 03.1989] YN63..EFI BEIGE,BEIGE,TRIM4# |
33626-35010-05 |
US $6.70 |
||
| replacement | |||||
|
33626
|
33626
33626-35010-01
Stopper, Shift Lever Button
[08.1986 - 03.1989] YN63..EFI BEIGE,BEIGE,TRIM4# |
33626-35010-01 |
— | ||
|
33631
|
33631
33631-17010
Rod, Detent
[08.1986 - 03.1989] YN63..EFI TRANSMISSION |
33631-17010 |
— | ||
| replacement | |||||
|
33631
|
33631
33631-12080
Rod, Detent
[08.1986 - 03.1989] YN63..EFI TRANSMISSION |
33631-12080 |
— | ||
|
33631
|
33631
33631-35030
Rod, Detent
[08.1986 - 03.1989] YN63..EFI TRANSFER |
33631-35030 |
— | ||
|
33631A
|
33631A
90501-07005 Spring, Compression (For Detent Rod)[08.1986 - 03.1989] YN63..EFI |
90501-07005 |
US $6.87 |
||
|
33631D
|
33631D
90256-04001 Pin, Slotted Spring (For Detent Rod)[08.1986 - 03.1989] YN63..EFI |
90256-04001 |
US $3.19 |
||
|
33634
|
33634
33636-35010 Protector, Wire[08.1986 - 03.1989] YN63..EFI |
33636-35010 |
US $2.87 |
||
|
33635
|
33635
33635-35020
Guide, Wire (For Shift Lever)
[08.1986 - 03.1989] YN63..EFI |
33635-35020 |
— | ||
|
33723F
|
33723F
33723-22010 Swivel, Connecting Rod (For Column Shift)[08.1983 - 03.1989] LN56,YN57,63..4FC |
33723-22010 |
from US $11.47 |
||
|
33723H
|
33723H
90480-17177 Grommet (For Transmission Control Rod)[08.1983 - 03.1989] LN56,YN57,63..4FC |
90480-17177 |
from US $2.07 |
||
|
35506A
|
35506A
90389-08005 Bushing(For Gear Selecting Rod)[08.1986 - 03.1989] YN63..EFI |
90389-08005 |
from US $1.77 |
||
|
35906
|
35906
35906-35050 Wire Sub-Assy, Indicator Lamp[08.1986 - 10.1986] YN63..EFI |
35906-35050 |
US $15.87 |
||
| replacement | |||||
|
35906
|
35906
35906-17020 Wire Sub-Assy, Indicator Lamp[08.1986 - 10.1986] YN63..EFI |
35906-17020 |
US $13.69 |
||
|
35906
|
35906
35906-35051 Wire Sub-Assy, Indicator Lamp[10.1986 - 03.1989] YN63..EFI |
35906-35051 |
US $15.87 |
||
| replacement | |||||
|
35906
|
35906
35906-17020 Wire Sub-Assy, Indicator Lamp[10.1986 - 03.1989] YN63..EFI |
35906-17020 |
US $13.69 |
||
|
35907
|
35907
35907-35060 Housing Sub-Assy, Position Indicator (For Floor Shift)[08.1986 - 03.1989] YN63..EFI |
35907-35060 |
US $37.27 |
||
|
35974
|
35974
35974-35020 Housing, Position Indicator, Lower[08.1986 - 03.1989] YN63..EFI |
35974-35020 |
US $28.25 |
||
|
35975
|
35975
35975-35030 Cover, Slide (For Position Indicator)[08.1986 - 03.1989] YN63..EFI |
35975-35030 |
US $13.40 |
||
|
35976
|
35976
35976-35020
Cover, Slide, No.2 (For Position Indicator)
[08.1986 - 03.1989] YN63..EFI TRANSMISSION |
35976-35020 |
— | ||
|
35976
|
35976
35976-35030 Cover, Slide, No.2 (For Position Indicator)[08.1986 - 03.1989] YN63..EFI TRANSFER |
35976-35030 |
US $9.03 |
||
|
36321H
|
36321H
36321-35030 Lever, Transfer Shift[08.1986 - 08.1987] YN63..EFI |
36321-35030 |
US $9.90 |
||
|
36321H
|
36321H
36321-35050 Lever, Transfer Shift[08.1987 - 03.1989] YN63..EFI |
36321-35050 |
US $9.76 |
||
|
36321P
|
36321P
90508-26068
Spring (For Transfer Shift Lever)
[08.1986 - 03.1989] YN63..EFI FR |
90508-26068 |
— | ||
|
36321P
|
36321P
90508-26069
Spring (For Transfer Shift Lever)
[08.1986 - 03.1989] YN63..EFI RR |
90508-26069 |
— | ||
|
36322A
|
36322A
36322-35010 Lever, Transfer Shift, No.2[08.1986 - 03.1989] YN63..EFI |
36322-35010 |
US $11.50 |
||
|
36325A
|
36325A
36325-35020-03 Knob, Lever, No.2[08.1986 - 03.1989] YN63..EFI GRAY,GRAY,TRIM1# |
36325-35020-03 |
US $26.21 |
||
|
36325A
|
36325A
36325-35020-05 Knob, Lever, No.2[08.1986 - 03.1989] YN63..EFI BEIGE,BEIGE,TRIM4# |
36325-35020-05 |
US $26.21 |
||
|
36381A
|
36381A
36381-35010-03 Button, Transfer Shift Lever Knob[08.1986 - 03.1989] YN63..EFI GRAY,GRAY,TRIM1# |
36381-35010-03 |
US $10.48 |
||
|
36381A
|
36381A
36381-35010-05 Button, Transfer Shift Lever Knob[08.1986 - 03.1989] YN63..EFI BEIGE,BEIGE,TRIM4# |
36381-35010-05 |
US $10.48 |
||
| replacement | |||||
|
36381A
|
36381A
36381-35010-03 Button, Transfer Shift Lever Knob[08.1986 - 03.1989] YN63..EFI BEIGE,BEIGE,TRIM4# |
36381-35010-03 |
US $10.48 |
||
|
36381B
|
36381B
90501-08068
Spring, Compression (For Shift Lever Knob Button)
[08.1986 - 03.1989] YN63..EFI |
90501-08068 |
— | ||
|
36382A
|
36382A
36382-35010
Stopper, Transfer Shift Lever Button
[08.1986 - 03.1989] YN63..EFI |
36382-35010 |
— | ||
|
36383A
|
36383A
36383-35020 Support, Transfer Detent Block[08.1986 - 03.1989] YN63..EFI |
36383-35020 |
US $18.35 |
||
|
36384A
|
36384A
36384-35020 Block, Transfer Detent[08.1986 - 03.1989] YN63..EFI |
36384-35020 |
US $11.50 |
||
|
36391A
|
36391A
36391-35020 Cover, Transfer Slide[08.1986 - 03.1989] YN63..EFI |
36391-35020 |
US $6.26 |
||
|
9011906077
|
9011906077
90119-06077 Bolt |
90119-06077 |
US $1.43 |
||
|
9015940109
|
9015940109
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting) |
90159-40109 |
US $1.43 |
||
|
9018905045
|
9018905045
90189-05045 New Genuine Part |
90189-05045 |
US $1.05 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
|
9048010014
|
9048010014
90480-10014
New Genuine Part
|
90480-10014 |
— | ||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.76 |
||
|
9331516014
|
9331516014
93315-16014 New Genuine Part |
93315-16014 |
US $1.10 |
||
|
9352013012
|
9352013012
93520-13012
New Genuine Part
|
93520-13012 |
— | ||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
