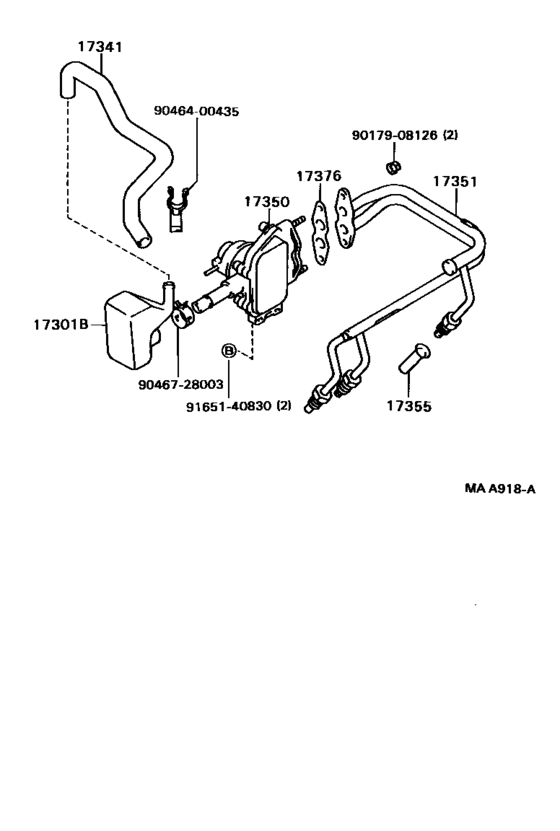

Manifold Air Injection System ([08.1988 - ] (8808- )2Y..YN85..ARL) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- YN85
- grade
- STD
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HILUX 2WD
- From
- 08.1988
- To
- 08.1992
- Body
- RCB
- Gear Shift Type
- 4F
- Vehicle Model
- Hilux (2WD)
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17301B
|
17301B
17301-72010
Silencer Sub-Assy, Air Suction
[08.1988 - 08.1997] 2Y..YN85..ARL |
17301-72010 |
— | ||
|
17341
|
17341
17341-72060 Hose, No.1(For Air Injection System)NO.1(FOR AIR INJECTION SYSTEM) [08.1988 - 08.1997] 2Y..YN85..ARL |
17341-72060 |
US $28.25 |
||
|
17350
|
17350
17350-72020
Valve Assy, Reed
[08.1988 - 08.1997] 2Y..YN85..ARL |
17350-72020 |
— | ||
|
17351
|
17351
17306-73011
Manifold, Air Injection
[08.1988 - 08.1997] 2Y..YN85..ARL |
17306-73011 |
— | ||
|
17355
|
17355
17355-71010 Nozzle, Air Injection[08.1988 - 01.1994] 2Y..YN85..ARL |
17355-71010 |
US $12.38 |
||
|
17376
|
17376
17376-71010
Gasket, Air Tube, No.1
[08.1988 - 12.1989] 2Y..YN85..ARL |
17376-71010 |
— | ||
| replacement | |||||
|
17376
|
17376
17376-71011 Gasket, Air Tube, No.1[08.1988 - 12.1989] 2Y..YN85..ARL |
17376-71011 |
US $4.37 |
||
|
17376
|
17376
17376-71011 Gasket, Air Tube, No.1[12.1989 - 01.1994] 2Y..YN85..ARL |
17376-71011 |
US $4.37 |
||
|
9017908126
|
9017908126
90179-08126 Nut |
90179-08126 |
US $2.33 |
||
|
9046400435
|
9046400435
90464-00435 Clamp(For Ventilation Hose) |
90464-00435 |
US $3.32 |
||
|
9046728003
|
9046728003
90467-28003
Clamp Or Clip(For Turbo Oil Outlet Hose)
|
90467-28003 |
— | ||
| replacement | |||||
|
9046728003
|
9046728003
90467-28007 Clip Or Clamp(For Ventilation Hose) |
90467-28007 |
from US $3.06 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
