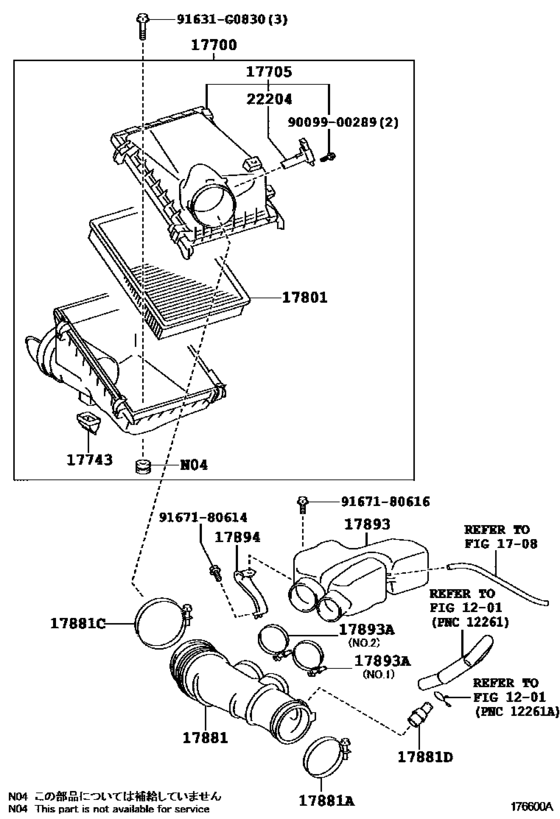

Air Cleaner ([08.2009 - ] (0908- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRN280
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- 4RUNNER
- From
- 08.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-31850
Cleaner Assy, Air
[08.2009 - 05.2011] 1GRFE..GRN28# |
17700-31850 |
— | ||
| replacement | |||||
|
17700
|
17700
17700-31852 Cleaner Assy, Air[08.2009 - 05.2011] 1GRFE..GRN28# |
17700-31852 |
US $432.86 |
||
|
17700
|
17700
17700-31851
Cleaner Assy, Air
[06.2011 - 07.2011] 1GRFE..GRN28# |
17700-31851 |
— | ||
| replacement | |||||
|
17700
|
17700
17700-31852 Cleaner Assy, Air[06.2011 - 07.2011] 1GRFE..GRN28# |
17700-31852 |
US $432.86 |
||
|
17700
|
17700
17700-31852 Cleaner Assy, Air[07.2011 - 08.2013] 1GRFE..GRN28# |
17700-31852 |
US $432.86 |
||
|
17705
|
17705
17705-31370
Cap Sub-Assy, Air Cleaner
[08.2009 - 06.2011] 1GRFE..GRN28# |
17705-31370 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-31371
Cap Sub-Assy, Air Cleaner
[08.2009 - 06.2011] 1GRFE..GRN28# |
17705-31371 |
— | ||
|
17705
|
17705
17705-31371
Cap Sub-Assy, Air Cleaner
[06.2011 - 08.2013] 1GRFE..GRN28# |
17705-31371 |
— | ||
|
17743
|
17743
17743-50010
Valve, Dust Relief
[08.2009 - 08.2013] 1GRFE..GRN28# |
17743-50010 |
— | ||
|
17801
|
17801
17801-38050
Element Sub-Assy, Air Cleaner Filter
[08.2009 - 07.2011] 1GRFE..GRN28# |
17801-38050 |
— | ||
| replacement | |||||
|
17801
|
17801
17801-38051 Element Sub-Assy, Air Cleaner Filter[08.2009 - 07.2011] 1GRFE..GRN28# |
17801-38051 |
from US $50.31 |
||
|
17801
|
17801
17801-38051 Element Sub-Assy, Air Cleaner Filter[07.2011 - 08.2013] 1GRFE..GRN28# |
17801-38051 |
from US $50.31 |
||
|
17881
|
17881
17881-31250 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [08.2009 - 08.2013] 1GRFE..GRN28# |
17881-31250 |
from US $51.19 |
||
|
17881A
|
17881A
96111-30900 Clamp(For Air Cleaner Hose, No.1)[08.2009 - 08.2013] 1GRFE..GRN28# |
96111-30900 |
from US $5.77 |
||
|
17881C
|
17881C
96111-31060 Clamp(For Air Cleaner Hose, No.1)NO.1) [08.2009 - 08.2013] 1GRFE..GRN28# |
96111-31060 |
US $0.70 |
||
|
17881D
|
17881D
90904-06008 Tube, Union(Fog Air Cleaner Hose)[08.2009 - 08.2013] 1GRFE..GRN28# |
90904-06008 |
from US $6.09 |
||
|
17893
|
17893
17893-31130 Resonator, Intake AirINTAKE AIR [08.2009 - 08.2013] 1GRFE..GRN28# |
17893-31130 |
US $49.62 |
||
|
17893A
|
17893A
96111-10650 Clamp(For Air Cleaner Inlet, No.1)[08.2009 - 02.2010] 1GRFE..GRN28# NO.1 |
96111-10650 |
from US $2.73 |
||
|
17893A
|
17893A
96111-10690 Clamp, Hose[03.2010 - 08.2013] 1GRFE..GRN28# NO.1 |
96111-10690 |
from US $2.87 |
||
|
17893A
|
17893A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[08.2009 - 08.2013] 1GRFE..GRN28# NO.2 |
96111-10750 |
from US $3.40 |
||
|
17894
|
17894
17894-31050 Bracket, ResonatorRESONATOR [08.2009 - 08.2013] 1GRFE..GRN28# |
17894-31050 |
US $7.13 |
||
|
22204
|
22204
22204-0T040 Meter Sub-Assy, Intake Air Flow[06.2011 - 08.2013] 1GRFE..GRN28# MARK 22204-0T040 |
22204-0T040 |
US $221.31 |
||
| replacement | |||||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [06.2011 - 08.2013] 1GRFE..GRN28# MARK 22204-0T040 |
22204-28010 |
from US $137.12 |
||
|
22204
|
22204
22204-0V010
Meter Sub-Assy, Intake Air Flow
[06.2011 - 08.2013] 1GRFE..GRN28# MARK 22204-0V010 |
22204-0V010 |
— | ||
|
22204
|
22204
22204-0V020 Meter Sub-Assy, Intake Air Flow[06.2011 - 08.2013] 1GRFE..GRN28# MARK 22204-0V020 |
22204-0V020 |
US $137.12 |
||
| replacement | |||||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [06.2011 - 08.2013] 1GRFE..GRN28# MARK 22204-0V020 |
22204-28010 |
from US $137.12 |
||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [06.2011 - 08.2013] 1GRFE..GRN28# MARK 22204-28010 |
22204-28010 |
from US $137.12 |
||
|
22204
|
22204
22204-37010
Meter Sub-Assy, Intake Air Flow
[08.2009 - 06.2011] 1GRFE..GRN28# |
22204-37010 |
— | ||
| replacement | |||||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [08.2009 - 06.2011] 1GRFE..GRN28# |
22204-28010 |
from US $137.12 |
||
|
91631G0830
|
91631G0830
91631-G0830 BOLT WWASHER |
91631-G0830 |
US $2.87 |
||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.66 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
