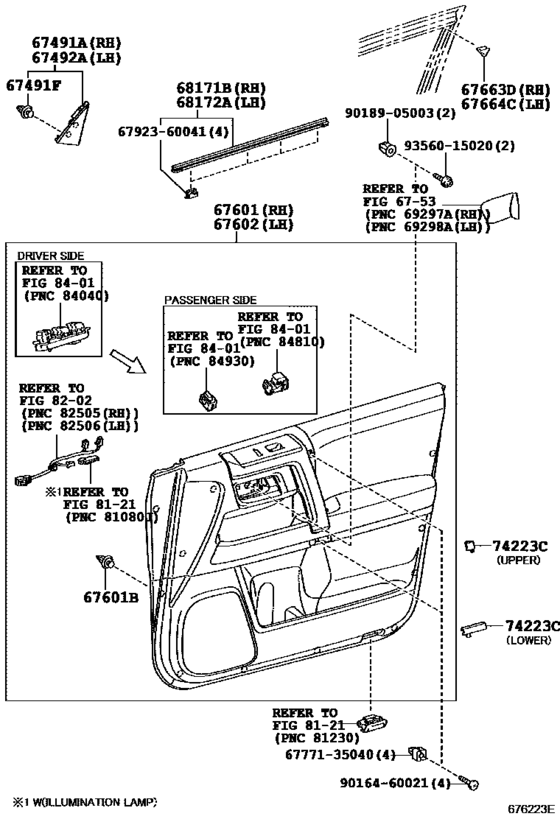

Front Door Panel & Glass ([08.2009 - ] DOOR TRIM (0908- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRN280
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- 4RUNNER
- From
- 08.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-35060-C0 Garnish, Front Door Lower Frame Bracket, RhFRONT DOOR LOWER FRAME BRACKET, RH [08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4# |
67491-35060-C0 |
US $15.72 |
||
|
67491F
|
67491F
90467-10161 Clip[08.2009 - 08.2013] GRN28# |
90467-10161 |
from US $0.90 |
||
|
67492A
|
67492A
67492-35060-C0
Garnish, Front Door Lower Frame Bracket, Lh
[08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4# |
67492-35060-C0 |
— | ||
|
67601
|
67601
67610-35B50-C0
Board Sub-Assy, Front Door Trim, Rh
[08.2013 -] GRN28# BLACK,TRIM2# |
67610-35B50-C0 |
— | ||
|
67601
|
67601
67610-35B50-C1
Board Sub-Assy, Front Door Trim, Rh
[08.2013 -] GRN28# SAND BEIGE,TRIM4# |
67610-35B50-C1 |
— | ||
|
67601
|
67601
67610-35C90-C1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
67610-35C90-C1 |
— | ||
|
67601
|
67601
67610-35C90-C2
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
67610-35C90-C2 |
— | ||
|
67601
|
67601
67610-35D60-C0
Board Sub-Assy, Front Door Trim, Rh
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/GRAY NO.205,TRIM22 |
67610-35D60-C0 |
— | ||
|
67601
|
67601
67610-35D60-C1
Board Sub-Assy, Front Door Trim, Rh
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/SADDLE TAN NO.079,TRIM24 |
67610-35D60-C1 |
— | ||
|
67601
|
67601
67610-35D60-C2
Board Sub-Assy, Front Door Trim, Rh
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
67610-35D60-C2 |
— | ||
|
67601B
|
67601B
90467-09203 Clip(For Rear Floor Mat Plate)[10.2012 - 08.2013] GRN28# BLUE |
90467-09203 |
from US $0.84 |
||
|
67601B
|
67601B
90467-09206 Clip, Front Air Shutter Seal[10.2012 - 08.2013] GRN28# NATURAL |
90467-09206 |
from US $0.47 |
||
|
67602
|
67602
67620-35C30-C1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
67620-35C30-C1 |
— | ||
|
67602
|
67602
67620-35C30-C2
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
67620-35C30-C2 |
— | ||
|
67602
|
67602
67620-35C60-C0
Board Sub-Assy, Front Door Trim, Lh
[08.2013 -] GRN28# BLACK,TRIM2# |
67620-35C60-C0 |
— | ||
|
67602
|
67602
67620-35C60-C1
Board Sub-Assy, Front Door Trim, Lh
[08.2013 -] GRN28# SAND BEIGE,TRIM4# |
67620-35C60-C1 |
— | ||
|
67602
|
67602
67620-35D10-C0
Board Sub-Assy, Front Door Trim, Lh
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/GRAY NO.205,TRIM22 |
67620-35D10-C0 |
— | ||
|
67602
|
67602
67620-35D10-C1
Board Sub-Assy, Front Door Trim, Lh
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/SADDLE TAN NO.079,TRIM24 |
67620-35D10-C1 |
— | ||
|
67602
|
67602
67620-35D10-C2
Board Sub-Assy, Front Door Trim, Lh
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
67620-35D10-C2 |
— | ||
|
67663D
|
67663D
67663-48010 Garnish, Door Frame, Upper Rh[08.2009 - 08.2013] GRN28# |
67663-48010 |
from US $2.20 |
||
|
67664C
|
67664C
67664-48010 Garnish, Door Frame, Upper Lh[08.2009 - 08.2013] GRN28# |
67664-48010 |
from US $2.11 |
||
|
68171B
|
68171B
68171-60090 Weatherstrip, Front Door Glass, Inner RhFRONT DOOR GLASS, INNER RH [08.2009 - 08.2013] GRN28# |
68171-60090 |
from US $37.95 |
||
|
68172A
|
68172A
68172-60080 Weatherstrip, Front Door Glass, Inner LhFRONT DOOR GLASS, INNER LH [08.2009 - 08.2013] GRN28# |
68172-60080 |
from US $37.64 |
||
|
74223C
|
74223C
74223-35030-C0
Cap, Door Armrest
[08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4#,RH,LOWER |
74223-35030-C0 |
— | ||
|
74223C
|
74223C
74223-35040-C0
Cap, Door Armrest
[08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4#,RH,UPPER |
74223-35040-C0 |
— | ||
|
74223C
|
74223C
74224-35060-C0 Cap, Door ArmrestDOOR ARMREST [08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4#,LH,LOWER |
74224-35060-C0 |
US $1.46 |
||
|
74223C
|
74223C
74224-35070-C0
Cap, Door Armrest
[08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4#,LH,UPPER |
74224-35070-C0 |
— | ||
|
6777135040
|
6777135040
67771-35040 Weatherstrip, Back Door Trim, Rh |
67771-35040 |
US $2.15 |
||
|
6792360041
|
6792360041
67923-60041 Clamp, Rear Door Trim |
67923-60041 |
US $3.94 |
||
|
9016460021
|
9016460021
90164-60021 SCREW BINDING |
90164-60021 |
from US $0.66 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.13 |
||
|
9356015020
|
9356015020
93560-15020 SCREW |
93560-15020 |
from US $0.52 |
