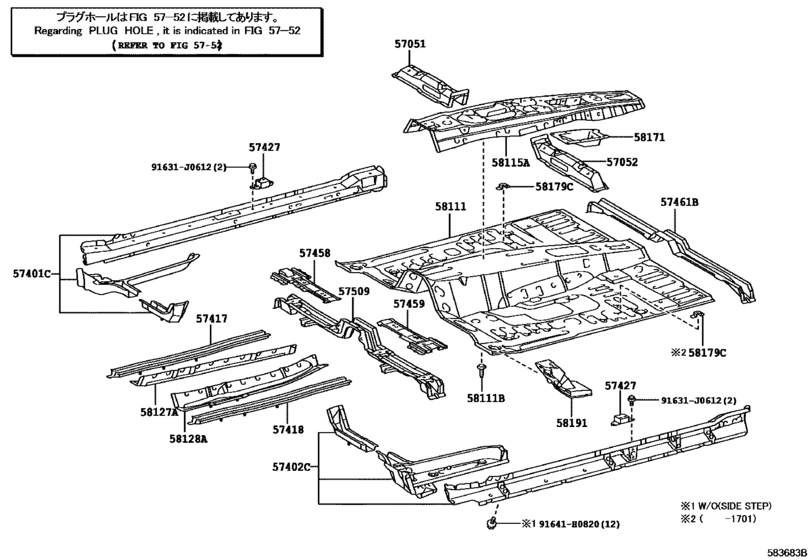

Front Floor Panel & Front Floor Member ([08.2009 - ] FLOOR PANEL (0908- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRN280
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- 4RUNNER
- From
- 08.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57051
|
57051
57051-35051 Member Sub-Assy, Front Floor Cross, Rh[08.2009 - 08.2013] GRN28# |
57051-35051 |
US $42.37 |
||
|
57052
|
57052
57052-35051 Member Sub-Assy, Front Floor Cross, Lh[08.2009 - 08.2013] GRN28# |
57052-35051 |
US $44.12 |
||
|
57401C
|
57401C
57401-60901 Member Sub-Assy, Floor Side, Inner RhFLOOR SIDE, INNER RH [08.2009 - 09.2011] GRN28# |
57401-60901 |
US $224.22 |
||
| replacement | |||||
|
57401C
|
57401C
57401-60903 Member Sub-Assy, Floor Side, Inner Rh[08.2009 - 09.2011] GRN28# |
57401-60903 |
US $199.31 |
||
|
57401C
|
57401C
57401-60903 Member Sub-Assy, Floor Side, Inner Rh[10.2011 - 08.2013] GRN28# |
57401-60903 |
US $199.31 |
||
|
57402C
|
57402C
57402-60901 Member Sub-Assy, Floor Side, Inner LhFLOOR SIDE, INNER LH [08.2009 - 09.2011] GRN28# |
57402-60901 |
US $224.22 |
||
| replacement | |||||
|
57402C
|
57402C
57402-60903 Member Sub-Assy, Floor Side, Inner Lh[08.2009 - 09.2011] GRN28# |
57402-60903 |
US $168.90 |
||
|
57402C
|
57402C
57402-60903 Member Sub-Assy, Floor Side, Inner Lh[10.2011 - 08.2013] GRN28# |
57402-60903 |
US $168.90 |
||
|
57417
|
57417
57417-35051 Reinforcement, Front Floor Under, Rh[08.2009 - 08.2013] GRN28# |
57417-35051 |
from US $36.87 |
||
|
57418
|
57418
57417-35061 Reinforcement, Front Floor Under, Lh[08.2009 - 08.2013] GRN28# |
57417-35061 |
US $36.87 |
||
|
57427
|
57427
57427-60020 Reinforcement, Front Floor To BraceFRONT FLOOR TO BRACE [08.2009 - 08.2013] GRN28# |
57427-60020 |
US $8.74 |
||
|
57458
|
57458
57458-60020 Member, Front Floor Cross, No.1FRONT FLOOR CROSS, NO.1 [08.2009 - 08.2013] GRN28# |
57458-60020 |
US $28.83 |
||
|
57459
|
57459
57459-60070 Member, Front Floor Cross, No.2FRONT FLOOR CROSS, NO.2 [08.2009 - 08.2013] GRN28# |
57459-60070 |
US $28.68 |
||
|
57461B
|
57461B
57461-35020 Member Sub-Assy, Center Floor Cross, No.1[08.2009 - 08.2013] GRN28# |
57461-35020 |
US $90.27 |
||
|
57509
|
57509
57509-60100 Reinforcement Sub-Assy, Front Floor, CenterFRONT FLOOR, CENTER [08.2009 - 08.2013] GRN28# |
57509-60100 |
US $120.85 |
||
|
58111
|
58111
58111-35431 Pan, Front FloorFRONT FLOOR [08.2009 - 08.2013] GRN28# |
58111-35431 |
US $492.13 |
||
|
58111B
|
58111B
90115-06166 Bolt, Weld(For Front Floor Pan)[08.2009 - 08.2013] GRN28# |
90115-06166 |
from US $0.94 |
||
|
58115A
|
58115A
58115-60011 Reinforcement, Front Floor Panel[08.2009 - 08.2013] GRN28# |
58115-60011 |
US $129.58 |
||
|
58127A
|
58127A
58127-35010 Reinforce, Front Cross To Front Panel Member, Rh[08.2009 - 08.2013] GRN28# |
58127-35010 |
from US $32.50 |
||
|
58128A
|
58128A
58128-35011 Reinforcement, Front Cross To Front Panel Member, Lh[08.2009 - 08.2013] GRN28# |
58128-35011 |
US $35.47 |
||
|
58171
|
58171
58171-60020 Reinforcement, Parking Brake Base[08.2009 - 08.2013] GRN28# |
58171-60020 |
US $36.40 |
||
|
58179C
|
58179C
58179-60010 Bracket, Clamp Floor[01.2017 -] GRN28# |
58179-60010 |
US $3.94 |
||
|
58191
|
58191
58190-35050
Footrest, Front Floor
[08.2009 - 08.2011] GRN28# |
58190-35050 |
— | ||
| replacement | |||||
|
58191
|
58191
58190-35051
Footrest, Front Floor
[08.2009 - 08.2011] GRN28# |
58190-35051 |
— | ||
|
58191
|
58191
58190-35051
Footrest, Front Floor
[08.2011 - 08.2013] GRN28# |
58190-35051 |
— | ||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.82 |
||
