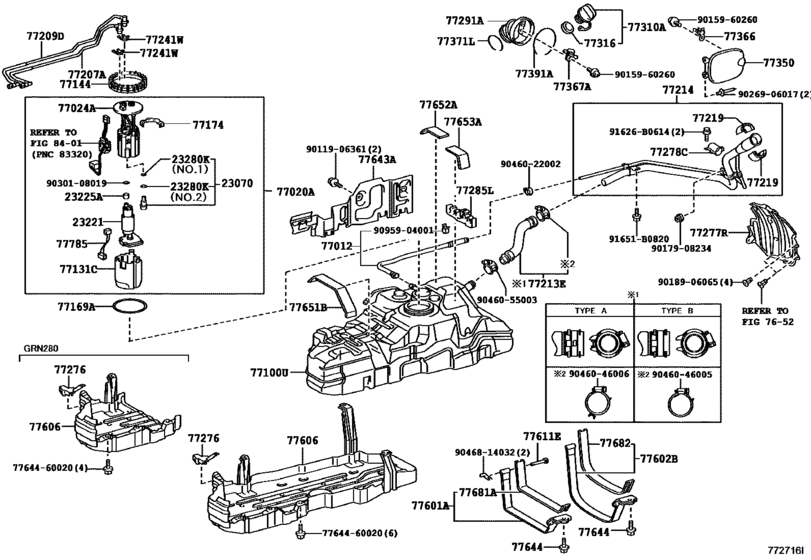

Fuel Tank & Tube ([08.2009 - ] FUEL TANK (0908- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRN280
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- 4RUNNER
- From
- 08.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23070
|
23070
23070-31010 Valve Assy, Fuel MainFUEL MAIN [08.2009 - 08.2013] 1GRFE..GRN28# |
23070-31010 |
from US $27.77 |
||
|
23221
|
23221
23220-31430 Pump Assy, Fuel W/filterFUEL [08.2009 - 08.2013] 1GRFE..GRN28# |
23220-31430 |
from US $320.31 |
||
|
23225A
|
23225A
23225-23010 Spacer, Fuel Pump[08.2009 - 08.2013] 1GRFE..GRN28# |
23225-23010 |
from US $0.72 |
||
|
23280K
|
23280K
90301-04013 Ring, O(For Fuel Pump)[08.2009 - 08.2013] 1GRFE..GRN28# NO.1:REFER ILLUST. |
90301-04013 |
from US $2.16 |
||
|
23280K
|
23280K
90301-15024 Ring, O(For Fuel Pump)[08.2009 - 08.2013] 1GRFE..GRN28# NO.2:REFER ILLUST. |
90301-15024 |
from US $2.15 |
||
|
77012
|
77012
77012-35090
Tube Sub-Assy, Fuel Tank Breather
[06.2014 -] GRN28# CHILE SPEC |
77012-35090 |
— | ||
|
77012
|
77012
77012-60200 Tube Sub-Assy, Fuel Tank BreatherFUEL TANK BREATHER [08.2009 - 08.2013] GRN28# |
77012-60200 |
US $28.39 |
||
| replacement | |||||
|
77012
|
77012
77012-60201 Tube Sub-Assy, Fuel Tank Breather[08.2009 - 08.2013] GRN28# |
77012-60201 |
US $25.77 |
||
|
77012
|
77012
77012-60201 Tube Sub-Assy, Fuel Tank Breather[06.2016 -] GRN28# |
77012-60201 |
US $25.77 |
||
|
77020A
|
77020A
77020-35151 Tube Assy, Fuel Suction W/pump & Gage[06.2014 -] GRN28# CHILE SPEC |
77020-35151 |
US $447.90 |
||
|
77020A
|
77020A
77020-60410
Tube Assy, Fuel Suction W/pump & Gage
[08.2009 - 08.2013] GRN28# |
77020-60410 |
— | ||
| replacement | |||||
|
77020A
|
77020A
77020-60411 Tube Assy, Fuel Suction W/pump & Gage[08.2009 - 08.2013] GRN28# |
77020-60411 |
from US $399.09 |
||
|
77020A
|
77020A
77020-60411 Tube Assy, Fuel Suction W/pump & Gage[10.2013 -] GRN28# |
77020-60411 |
from US $399.09 |
||
|
77024A
|
77024A
77024-35070 Plate Sub-Assy, Fuel SuctionFUEL SUCTION [06.2014 -] GRN28# CHILE SPEC |
77024-35070 |
from US $76.56 |
||
|
77024A
|
77024A
77024-60260 Plate Sub-Assy, Fuel SuctionFUEL SUCTION [08.2009 - 08.2013] GRN28# |
77024-60260 |
US $55.91 |
||
|
77100U
|
77100U
77001-35A20
Tank Sub-Assy, Fuel
[06.2014 -] GRN28# CHILE SPEC |
77001-35A20 |
— | ||
|
77100U
|
77100U
77001-35A30
Tank Sub-Assy, Fuel
[08.2009 - 08.2013] GRN28# |
77001-35A30 |
— | ||
| replacement | |||||
|
77100U
|
77100U
77001-35A31 Tank Sub-Assy, Fuel[08.2009 - 08.2013] GRN28# |
77001-35A31 |
US $518.51 |
||
|
77100U
|
77100U
77001-35A31 Tank Sub-Assy, Fuel[11.2016 -] GRN28# |
77001-35A31 |
US $518.51 |
||
|
77131C
|
77131C
77131-60090 Sub-Tank, Fuel, No.1FUEL, NO.1 [08.2009 - 08.2013] GRN28# |
77131-60090 |
from US $18.48 |
||
|
77144
|
77144
77144-35010 Retainer, Fuel Pump Gauge[08.2009 - 08.2013] GRN28# |
77144-35010 |
from US $28.74 |
||
|
77169A
|
77169A
77169-30050 Gasket, Fuel Suction Tube Set(for the fuel tank pump housing) [06.2014 -] GRN28# CHILE SPEC |
77169-30050 |
from US $4.84 |
||
|
77169A
|
77169A
77169-35010
Gasket, Fuel Suction Tube Set
[08.2009 - 01.2010] GRN28# |
77169-35010 |
— | ||
| replacement | |||||
|
77169A
|
77169A
77169-30050 Gasket, Fuel Suction Tube Set(for the fuel tank pump housing) [08.2009 - 01.2010] GRN28# |
77169-30050 |
from US $4.84 |
||
|
77169A
|
77169A
77169-47030 Gasket, Fuel Suction Tube Set[02.2010 - 08.2013] GRN28# |
77169-47030 |
from US $3.94 |
||
|
77174
|
77174
77174-60020 Support, Fuel Suction, No.1FUEL SUCTION, NO.1 [08.2009 - 08.2013] GRN28# |
77174-60020 |
US $5.53 |
||
|
77207A
|
77207A
77204-35090
Tube, Fuel Tank Return
[06.2014 -] GRN28# CHILE SPEC |
77204-35090 |
— | ||
|
77207A
|
77207A
77204-60100 Tube, Fuel Tank ReturnFUEL RETURN [08.2009 - 08.2013] GRN28# |
77204-60100 |
US $25.51 |
||
|
77209D
|
77209D
77209-35470
Tube Sub-Assy, Fuel Tank Main
[06.2014 -] GRN28# CHILE SPEC |
77209-35470 |
— | ||
|
77209D
|
77209D
77209-60530 Tube Sub-Assy, Fuel Tank MainFUEL TANK MAIN [08.2009 - 08.2013] GRN28# |
77209-60530 |
US $25.51 |
||
|
77213E
|
77213E
77213-35410
Hose, Fuel Tank To Filler Pipe
[06.2014 -] GRN28# CHILE SPEC |
77213-35410 |
— | ||
|
77213E
|
77213E
77213-60360 Hose, Fuel Tank To Filler PipeFUEL TANK TO FILLER PIPE [08.2009 - 05.2010] GRN28# |
77213-60360 |
from US $28.04 |
||
|
77213E
|
77213E
77213-60390 Hose, Fuel Tank To Filler Pipe[05.2010 - 08.2013] GRN28# TYPE B:REFER ILLUST. |
77213-60390 |
US $40.66 |
||
|
77214
|
77214
77210-35050
Pipe, Fuel Tank Filler
[06.2014 - 08.2014] GRN28# CHILE SPEC |
77210-35050 |
— | ||
| replacements | |||||
|
77214
|
77214
77210-35080
Pipe, Fuel Tank Filler
[06.2014 - 08.2014] GRN28# CHILE SPEC |
77210-35080 |
— | ||
|
77214
|
77214
77300-53020 Cap Assy, Fuel Tank[06.2014 - 08.2014] GRN28# CHILE SPEC |
77300-53020 |
US $31.80 |
||
|
77214
|
77214
77210-35080
Pipe, Fuel Tank Filler
[08.2014 -] GRN28# CHILE SPEC |
77210-35080 |
— | ||
|
77214
|
77214
77210-60140 Pipe, Fuel Tank FillerFUEL TANK FILLER [08.2009 - 08.2013] GRN28# |
77210-60140 |
US $148.80 |
||
|
77219
|
77219
77219-48030
Cover, Fuel Tank Filler Pipe
[06.2014 -] GRN28# CHILE SPEC |
77219-48030 |
— | ||
|
77219
|
77219
77219-52040 Cover, Fuel Tank Filler Pipe[08.2009 - 08.2013] GRN28# |
77219-52040 |
US $4.68 |
||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[12.2009 - 08.2013] GRN28# |
77241-33011 |
from US $0.86 |
||
|
77241W
|
77241W
77241-60320 Clip, Tube Joint[08.2009 - 11.2009] GRN28# |
77241-60320 |
from US $0.86 |
||
|
77276
|
77276
77276-35040 Protector, Fuel Hose[08.2009 - 08.2013] GRN28# |
77276-35040 |
US $5.82 |
||
|
77277R
|
77277R
77277-35040
Protector, Fuel Tank Filler Pipe
[08.2009 - 08.2013] GRN28# |
77277-35040 |
— | ||
|
77278C
|
77278C
77277-35050
Protector, Fuel Tank Filler Pipe, No.2
[06.2014 -] GRN28# CHILE SPEC |
77277-35050 |
— | ||
|
77278C
|
77278C
77277-52020 Protector, Fuel Tank Filler Pipe[08.2009 - 11.2009] GRN28# |
77277-52020 |
US $8.44 |
||
|
77278C
|
77278C
77277-60190 Protector, Fuel Tank Filler Pipe, No.2FUEL TANK FILLER PIPE, NO.2 [12.2009 - 08.2013] GRN28# |
77277-60190 |
US $9.90 |
||
|
77285L
|
77285L
77285-35610 Clamp, Fuel Tube, No.1[06.2014 -] GRN28# CHILE SPEC |
77285-35610 |
US $6.64 |
||
|
77285L
|
77285L
77285-35620 Clamp, Fuel Tube, No.1[08.2009 - 04.2013] GRN28# |
77285-35620 |
from US $9.43 |
||
|
77285L
|
77285L
77285-35770 Clamp, Fuel Tube, No.1FUEL TUBE, NO.1 [05.2013 - 08.2013] GRN28# |
77285-35770 |
US $6.12 |
||
|
77291A
|
77291A
77291-35150
Shield, Fuel Tank Filler Pipe
[08.2009 - 08.2013] GRN28# |
77291-35150 |
— | ||
|
77310A
|
77310A
77300-52030 Cap Assy, Fuel Tank[08.2009 - 08.2013] GRN28# |
77300-52030 |
from US $26.21 |
||
|
77310A
|
77310A
77300-52040 Cap Assy, Fuel TankFUEL TANK [06.2014 - 08.2014] GRN28# CHILE SPEC |
77300-52040 |
from US $26.64 |
||
|
77310A
|
77310A
77300-53020 Cap Assy, Fuel Tank[08.2014 -] GRN28# CHILE SPEC |
77300-53020 |
US $31.80 |
||
|
77316
|
77316
77316-52040 Gasket, Fuel Tank Cap[08.2009 - 08.2013] GRN28# |
77316-52040 |
from US $4.12 |
||
|
77350
|
77350
77350-35070
Lid Assy, Fuel Filler Opening
[08.2009 - 10.2011] GRN28# |
77350-35070 |
— | ||
| replacement | |||||
|
77350
|
77350
77350-35071
Lid Assy, Fuel Filler Opening
[08.2009 - 10.2011] GRN28# |
77350-35071 |
— | ||
|
77350
|
77350
77350-35071
Lid Assy, Fuel Filler Opening
[11.2011 - 08.2013] GRN28# |
77350-35071 |
— | ||
|
77366
|
77366
77366-35030 Spring, Fuel Filler Opening Lid HingeFUEL FILLER OPENING LID HINGE [08.2009 - 08.2013] GRN28# |
77366-35030 |
from US $0.70 |
||
|
77367A
|
77367A
77367-35020 Clamp, Fuel Filler Lid Pin, No.1FUEL FILLER LID PIN, NO.1 [08.2009 - 08.2013] GRN28# |
77367-35020 |
from US $2.59 |
||
|
77371L
|
77371L
77371-35010 Ring, Fuel Tank Filler Pipe Shield[08.2009 - 08.2013] GRN28# |
77371-35010 |
from US $1.79 |
||
|
77391A
|
77391A
77391-12060 Ring, Fuel Inlet Box[08.2009 - 08.2013] GRN28# |
77391-12060 |
US $3.20 |
||
|
77601A
|
77601A
77601-60340
Band Sub-Assy, Fuel Tank, No.1
[08.2009 - 08.2013] GRN28# |
77601-60340 |
— | ||
| replacement | |||||
|
77601A
|
77601A
77601-60420 Band Sub-Assy, Fuel Tank, No.1[08.2009 - 08.2013] GRN28# |
77601-60420 |
US $43.01 |
||
|
77601A
|
77601A
77601-60420 Band Sub-Assy, Fuel Tank, No.1[07.2016 -] GRN28# |
77601-60420 |
US $43.01 |
||
|
77602B
|
77602B
77602-60120 Band Sub-Assy, Fuel Tank, No.1 LhFUEL TANK, NO.1 LH [08.2009 - 08.2013] GRN28# |
77602-60120 |
US $43.01 |
||
|
77606
|
77606
77606-60200 Protector Sub-Assy, Fuel Tank, No.1FUEL TANK, NO.1 [08.2009 - 08.2013] GRN280 |
77606-60200 |
US $99.59 |
||
|
77611E
|
77611E
77653-35040 Pin (For Fuel Tank Band)[08.2009 - 08.2013] GRN28# |
77653-35040 |
US $8.06 |
||
|
77643A
|
77643A
77643-35020 Protector, Fuel Tank, No.3[08.2009 - 08.2013] GRN28# |
77643-35020 |
US $26.06 |
||
| replacement | |||||
|
77643A
|
77643A
77643-35040 Protector, Fuel Tank, No.3[08.2009 - 08.2013] GRN28# |
77643-35040 |
US $27.26 |
||
|
77643A
|
77643A
77643-35040 Protector, Fuel Tank, No.3[02.2016 -] GRN28# |
77643-35040 |
US $27.26 |
||
|
77644
|
77644
77644-35030 Bolt, Fuel Tank[08.2009 - 08.2013] GRN28# |
77644-35030 |
from US $1.44 |
||
|
77651B
|
77651B
77651-35070 Cushion, Fuel Tank[08.2009 - 08.2013] GRN28# |
77651-35070 |
US $17.74 |
||
|
77651B
|
77651B
77651-35080
Cushion, Fuel Tank
[06.2014 -] GRN28# CHILE SPEC |
77651-35080 |
— | ||
|
77652A
|
77652A
77652-35060 Cushion, Fuel Tank, No.2[08.2009 - 08.2013] GRN28# |
77652-35060 |
US $8.96 |
||
|
77653A
|
77653A
77653-35050 Cushion, Fuel Tank, No.3[08.2009 - 08.2013] GRN28# |
77653-35050 |
US $11.65 |
||
|
77681A
|
77681A
77681-60210 Seat, Fuel Tank Band[08.2009 - 08.2013] GRN28# |
77681-60210 |
US $11.36 |
||
|
77682
|
77682
77681-35041 Seat, Fuel Tank Band[08.2009 - 08.2013] GRN28# |
77681-35041 |
US $17.65 |
||
|
77785
|
77785
77785-60020
Harness, Fuel Pump
[08.2009 - 08.2013] GRN28# |
77785-60020 |
— | ||
| replacement | |||||
|
77785
|
77785
77785-60021 HARNESS FUEL PUMP[08.2009 - 08.2013] GRN28# |
77785-60021 |
from US $13.67 |
||
|
91626B0614
|
91626B0614
91626-B0614 BOLT, W/WASHER |
91626-B0614 |
US $1.08 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
7764460020
|
7764460020
77644-60020 Bolt, Fuel Tank |
77644-60020 |
US $1.79 |
||
|
9011906361
|
9011906361
90119-06361 BOLT WWASHER |
90119-06361 |
US $1.43 |
||
|
9015960260
|
9015960260
90159-60260 SCREW |
90159-60260 |
US $1.61 |
||
|
9017908234
|
9017908234
90179-08234 NUT |
90179-08234 |
from US $0.82 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.76 |
||
|
9026906017
|
9026906017
90269-06017 RIVET |
90269-06017 |
from US $1.17 |
||
|
9030108019
|
9030108019
90301-08019 Ring, O(For Fuel Pressure Regulator) |
90301-08019 |
from US $2.28 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.23 |
||
|
9046046005
|
9046046005
90460-46005 Clamp (For Fuel Filler Pipe) |
90460-46005 |
from US $2.69 |
||
|
9046046006
|
9046046006
90460-46006 Clamp (For Fuel Filler Pipe) |
90460-46006 |
from US $4.02 |
||
|
9046055003
|
9046055003
90460-55003 Clamp Or Clip(For Air Hose, No.1) |
90460-55003 |
from US $4.84 |
||
|
9046814032
|
9046814032
90468-14032 CLIP |
90468-14032 |
US $1.61 |
||
|
9095904001
|
9095904001
90959-04001 Clip, Fuel Hose |
90959-04001 |
from US $4.30 |
||
