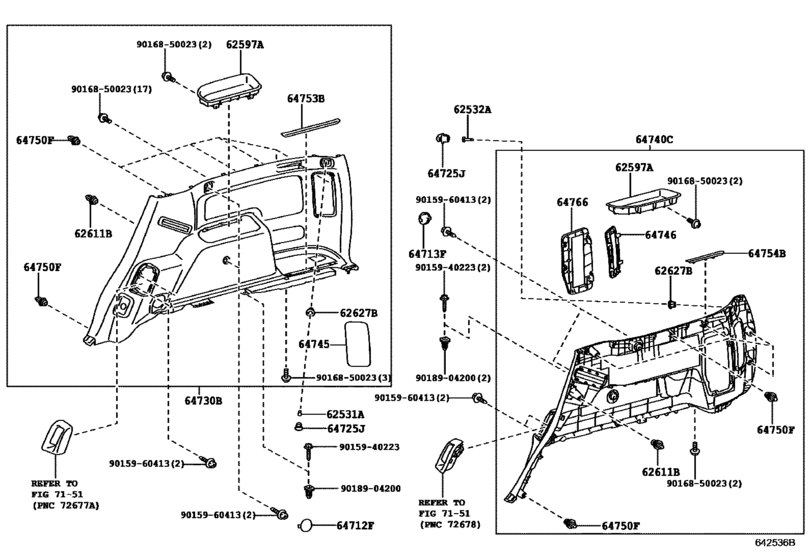

Inside Trim Board ([08.2009 - ] W/O(REAR NO.2 SEAT) (0908- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRN280
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- 4RUNNER
- From
- 08.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62531A
|
62531A
62531-60020 Spacer, Quarter TrimQUARTER TRIM [08.2009 - 08.2013] GRN28# |
62531-60020 |
US $2.62 |
||
|
62532A
|
62532A
62531-60020 Spacer, Quarter TrimQUARTER TRIM [08.2009 - 08.2013] GRN28# |
62531-60020 |
US $2.62 |
||
|
62597A
|
62597A
62597-35040-C0
Box, Side Trim
[08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4#,RH |
62597-35040-C0 |
— | ||
|
62597A
|
62597A
62599-35020-C0
Box, Side Trim
[08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4#,LH |
62599-35020-C0 |
— | ||
|
62611B
|
62611B
63395-12150 Clip (For Center Pillar Garnish Panel, Upper)[09.2009 - 08.2013] GRN28# |
63395-12150 |
from US $0.90 |
||
|
62627B
|
62627B
62627-60010-C0 Cover, Quarter TrimQUARTER TRIM [08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4# |
62627-60010-C0 |
from US $6.36 |
||
|
64712F
|
64712F
64712-60020-C0 Cover, Deck Side Trim, Front RhDECK SIDE TRIM, FRONT RH [08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4# |
64712-60020-C0 |
US $2.06 |
||
|
64713F
|
64713F
64712-60020-C0 Cover, Deck Side Trim, Front RhDECK SIDE TRIM, FRONT RH [08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4# |
64712-60020-C0 |
US $2.06 |
||
|
64725J
|
64725J
64725-60020-C0 Hook, Luggage Compartment Trim, No.1LUGGAGE COMPARTMENT TRIM, NO.1 [08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4# |
64725-60020-C0 |
from US $5.11 |
||
|
64730B
|
64730B
64730-35130-C0
Panel Assy, Deck Trim Side, Rh
[08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4# |
64730-35130-C0 |
— | ||
|
64730B
|
64730B
64730-35170-C0
Panel Assy, Deck Trim Side, Rh
[08.2009 - 08.2013] GRN28# LIMITED PACKAGE&REAR NO.2 SEAT-WITH(50:50)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1 #,4#; GRN28# LIMITED PACKAGE&REAR NO.2 SEAT-WITH(50:50)&SEAT COVER MATERIAL-FABRIC(POWER SEAT), BLACK,TRIM1#,4#; GRN28# SR5 PACKAGE&REAR NO.2 SEA |
64730-35170-C0 |
— | ||
|
64740C
|
64740C
64740-35100-C0 Panel Assy, Deck Trim Side, LhDECK TRIM SIDE, LH [08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4# |
64740-35100-C0 |
US $297.02 |
||
|
64740C
|
64740C
64740-35120-C0
Panel Assy, Deck Trim Side, Lh
[08.2009 - 08.2013] GRN28# LIMITED PACKAGE&REAR NO.2 SEAT-WITH(50:50)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1 #,4#; GRN28# LIMITED PACKAGE&REAR NO.2 SEAT-WITH(50:50)&SEAT COVER MATERIAL-FABRIC(POWER SEAT), BLACK,TRIM1#,4#; GRN28# SR5 PACKAGE&REAR NO.2 SEA |
64740-35120-C0 |
— | ||
|
64745
|
64745
64745-35040-C0
Cover, Rear Combination Lamp Service, Rh
[08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4# |
64745-35040-C0 |
— | ||
|
64746
|
64746
64746-35030-C0
Cover, Rear Combination Lamp Service, Lh
[08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4# |
64746-35030-C0 |
— | ||
|
64750F
|
64750F
90467-10161 Clip[09.2009 - 08.2013] GRN28# |
90467-10161 |
from US $0.90 |
||
|
64753B
|
64753B
64753-35040-C0
Plate, Rear Floor Finish Side, Rh
[08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4# |
64753-35040-C0 |
— | ||
|
64754B
|
64754B
64754-35010-C0
Plate, Rear Floor Finish Side, Lh
[08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4# |
64754-35010-C0 |
— | ||
|
64766
|
64766
64766-35030-C0
Cover Sub-Assy, Quarter Trim Jack
[08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4# |
64766-35030-C0 |
— | ||
|
64766
|
64766
64766-35040-C0
Cover Sub-Assy, Quarter Trim Jack
[08.2009 - 08.2013] GRN28# LIMITED PACKAGE&REAR NO.2 SEAT-WITH(50:50)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1 #,4#; GRN28# LIMITED PACKAGE&REAR NO.2 SEAT-WITH(50:50)&SEAT COVER MATERIAL-FABRIC(POWER SEAT), BLACK,TRIM1#,4#; GRN28# SR5 PACKAGE&REAR NO.2 SEA |
64766-35040-C0 |
— | ||
|
9015940223
|
9015940223
90159-40223 SCREW WWASHER |
90159-40223 |
from US $0.70 |
||
|
9015960413
|
9015960413
90159-60413 SCREW WWASHER |
90159-60413 |
US $2.15 |
||
|
9016850023
|
9016850023
90168-50023 SCREW |
90168-50023 |
US $1.97 |
||
|
9018904200
|
9018904200
90189-04200 GROMMET SCREW |
90189-04200 |
from US $0.66 |
