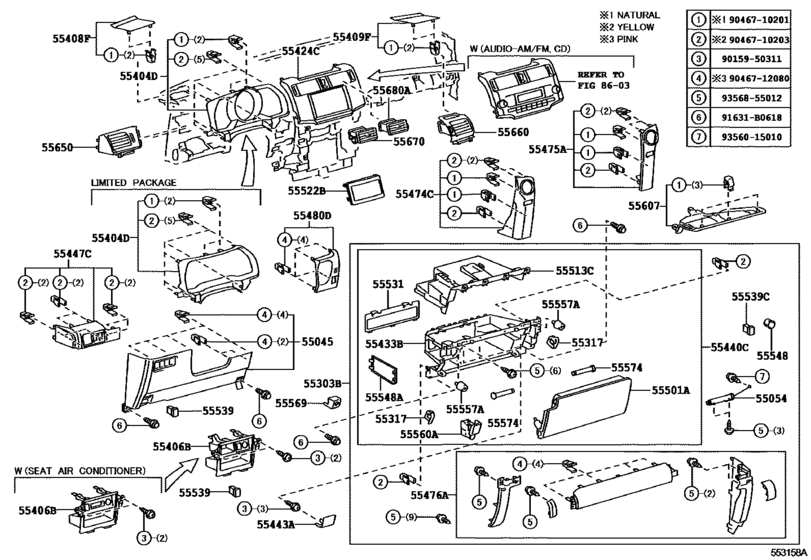

Instrument Panel & Glove Compartment ([08.2013 - ] (1308- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRN280
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- 4RUNNER
- From
- 08.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55045
|
55045
55045-35150-B0
Panel Sub-Assy, Instrument Panel Finish, Lower
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
55045-35150-B0 |
— | ||
|
55045
|
55045
55045-35150-C0
Panel Sub-Assy, Instrument Panel Finish, Lower
[08.2013 -] GRN28# BLACK,TRIM2#,4# |
55045-35150-C0 |
— | ||
|
55045
|
55045
55045-35150-E0
Panel Sub-Assy, Instrument Panel Finish, Lower
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
55045-35150-E0 |
— | ||
|
55054
|
55054
55054-35030
Stopper Sub-Assy, Glove Compartment Door
[08.2009 - 08.2013] GRN28# |
55054-35030 |
— | ||
|
55303B
|
55303B
55303-35050-B0
Panel Sub-Assy, Instrument, Lower
[08.2009 - 05.2011] GRN28# GRAY,TRIM1# |
55303-35050-B0 |
— | ||
|
55303B
|
55303B
55303-35050-E0
Panel Sub-Assy, Instrument, Lower
[08.2009 - 05.2011] GRN28# SAND BEIGE,TRIM4# |
55303-35050-E0 |
— | ||
|
55303B
|
55303B
55303-35051-B0
Panel Sub-Assy, Instrument, Lower
[06.2011 - 08.2013] GRN28# GRAY,TRIM1# |
55303-35051-B0 |
— | ||
|
55303B
|
55303B
55303-35051-E0
Panel Sub-Assy, Instrument, Lower
[06.2011 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
55303-35051-E0 |
— | ||
|
55303B
|
55303B
55303-35080-C0
Panel Sub-Assy, Instrument, Lower
[08.2013 -] GRN28# LIMITED PACKAGE,BLACK,TRIM2#,4# |
55303-35080-C0 |
— | ||
|
55303B
|
55303B
55303-35090-C0
Panel Sub-Assy, Instrument, Lower
[08.2013 -] GRN28# BLACK,TRIM2#,4# |
55303-35090-C0 |
— | ||
|
55317
|
55317
55315-35050
Patch, Instrument Panel
[08.2009 - 08.2013] GRN28# RH |
55315-35050 |
— | ||
|
55317
|
55317
55316-35060
Patch, Instrument Panel
[08.2009 - 08.2013] GRN28# LH |
55316-35060 |
— | ||
|
55404D
|
55404D
55404-35320
Panel Sub-Assy, Instrument Cluster Finish
[08.2009 - 08.2013] GRN28# |
55404-35320 |
— | ||
|
55404D
|
55404D
55404-35340
Panel Sub-Assy, Instrument Cluster Finish
[08.2013 -] GRN28# LIMITED PACKAGE |
55404-35340 |
— | ||
|
55406B
|
55406B
55406-35050 Panel Sub-Assy, Instrument Cluster Finish, Lower CenterINSTRUMENT CLUSTER FINISH, LOWER CENTER [08.2009 - 08.2013] GRN28# |
55406-35050 |
US $71.93 |
||
|
55406B
|
55406B
55406-35070
Panel Sub-Assy, Instrument Cluster Finish, Lower Center
[08.2013 -] GRN28# |
55406-35070 |
— | ||
|
55406B
|
55406B
55406-35080
Panel Sub-Assy, Instrument Cluster Finish, Lower Center
[08.2013 -] GRN28# LIMITED PACKAGE |
55406-35080 |
— | ||
|
55408F
|
55408F
55472-35010-C0
Panel Sub-Assy, Instrument Panel Speaker, No.1
[08.2009 - 11.2011] GRN28# BLACK,TRIM1#,4# |
55472-35010-C0 |
— | ||
| replacement | |||||
|
55408F
|
55408F
55472-35011-C0 Panel Sub-Assy, Instrument Panel Speaker, No.1[08.2009 - 11.2011] GRN28# BLACK,TRIM1#,4# |
55472-35011-C0 |
US $15 |
||
|
55408F
|
55408F
55472-35011-C0 Panel Sub-Assy, Instrument Panel Speaker, No.1[12.2011 - 08.2013] GRN28# BLACK,TRIM1#,4# |
55472-35011-C0 |
US $15 |
||
|
55409F
|
55409F
55473-35030-C0
Panel Sub-Assy, Instrument Panel Speaker, No.2
[08.2009 - 11.2011] GRN28# BLACK,TRIM1#,4# |
55473-35030-C0 |
— | ||
| replacement | |||||
|
55409F
|
55409F
55473-35031-C0 Panel Sub-Assy, Instrument Panel Speaker, No.2[08.2009 - 11.2011] GRN28# BLACK,TRIM1#,4# |
55473-35031-C0 |
US $16.45 |
||
|
55409F
|
55409F
55473-35031-C0 Panel Sub-Assy, Instrument Panel Speaker, No.2[12.2011 - 08.2013] GRN28# BLACK,TRIM1#,4# |
55473-35031-C0 |
US $16.45 |
||
|
55424C
|
55424C
55424-35010
Panel, Radio Tuner Finish
[08.2013 -] GRN28#; GRN28# AUDIO-*DA |
55424-35010 |
— | ||
|
55424C
|
55424C
55424-35021
Panel, Radio Tuner Finish
[08.2009 - 08.2013] GRN28#; GRN28# AUDIO-AM/FM,CD,SATELLITE,BLUETOOTH,8SPEAKER; GRN28# AUDIO-AM/FM,CD,BLUETOOTH,8SPEAKER |
55424-35021 |
— | ||
|
55433B
|
55433B
55433-35110
Panel, Instrument Panel Finish, Lower No.2
[08.2009 - 08.2013] GRN28# |
55433-35110 |
— | ||
|
55440C
|
55440C
55440-35050-B0
Box Assy, Instrument Panel
[08.2009 - 05.2011] GRN28# GRAY,TRIM1# |
55440-35050-B0 |
— | ||
| replacement | |||||
|
55440C
|
55440C
55440-35051-B0
Box Assy, Instrument Panel
[08.2009 - 05.2011] GRN28# GRAY,TRIM1# |
55440-35051-B0 |
— | ||
|
55440C
|
55440C
55440-35050-E0
Box Assy, Instrument Panel
[08.2009 - 05.2011] GRN28# SAND BEIGE,TRIM4# |
55440-35050-E0 |
— | ||
| replacement | |||||
|
55440C
|
55440C
55440-35051-E0
Box Assy, Instrument Panel
[08.2009 - 05.2011] GRN28# SAND BEIGE,TRIM4# |
55440-35051-E0 |
— | ||
|
55440C
|
55440C
55440-35051-B0
Box Assy, Instrument Panel
[06.2011 - 08.2013] GRN28# GRAY,TRIM1# |
55440-35051-B0 |
— | ||
|
55440C
|
55440C
55440-35051-E0
Box Assy, Instrument Panel
[06.2011 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
55440-35051-E0 |
— | ||
|
55440C
|
55440C
55440-35070-C0
Box Assy, Instrument Panel
[08.2013 -] GRN28# BLACK,TRIM2#,4# |
55440-35070-C0 |
— | ||
|
55443A
|
55443A
55443-35030
Cover, Instrument Panel Box Door
[08.2009 - 08.2013] GRN28# |
55443-35030 |
— | ||
|
55447C
|
55447C
55447-35010-B0
Base, Switch Hole, No.2
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
55447-35010-B0 |
— | ||
|
55447C
|
55447C
55447-35010-C0
Base, Switch Hole, No.2
[08.2013 -] GRN28# BLACK,TRIM2#,4# |
55447-35010-C0 |
— | ||
|
55447C
|
55447C
55447-35010-E0
Base, Switch Hole, No.2
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
55447-35010-E0 |
— | ||
|
55474C
|
55474C
55011-35020-B0
Garnish, Instrument Cluster Finish Panel, No.1
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
55011-35020-B0 |
— | ||
|
55474C
|
55474C
55011-35020-E0
Garnish, Instrument Cluster Finish Panel, No.1
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
55011-35020-E0 |
— | ||
|
55474C
|
55474C
55011-35040-C0
Garnish, Instrument Cluster Finish Panel, No.1
[08.2013 -] GRN28# BLACK,TRIM2#,4# |
55011-35040-C0 |
— | ||
|
55475A
|
55475A
55012-35020-B0
Garnish, Instrument Cluster Finish Panel, No.2
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
55012-35020-B0 |
— | ||
|
55475A
|
55475A
55012-35020-E0
Garnish, Instrument Cluster Finish Panel, No.2
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
55012-35020-E0 |
— | ||
|
55475A
|
55475A
55012-35040-C0
Garnish, Instrument Cluster Finish Panel, No.2
[08.2013 -] GRN28# BLACK,TRIM2#,4# |
55012-35040-C0 |
— | ||
|
55476A
|
55476A
55470-35030-C0
Garnish, Instrument Cluster Finish Panel, No.3
[08.2013 -] GRN28# LIMITED PACKAGE,BLACK,TRIM2#,4# |
55470-35030-C0 |
— | ||
|
55476A
|
55476A
55470-35040-C0
Garnish, Instrument Cluster Finish Panel, No.3
[08.2013 -] GRN28# BLACK,TRIM2#,4# |
55470-35040-C0 |
— | ||
|
55476A
|
55476A
55476-35010-B0
Garnish, Instrument Cluster Finish Panel, No.3
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
55476-35010-B0 |
— | ||
|
55476A
|
55476A
55476-35010-E0
Garnish, Instrument Cluster Finish Panel, No.3
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
55476-35010-E0 |
— | ||
|
55480D
|
55480D
55480-35020-B0
Panel Assy, Instrument Panel Finish, Lwr
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
55480-35020-B0 |
— | ||
|
55480D
|
55480D
55480-35020-C0
Panel Assy, Instrument Panel Finish, Lwr
[08.2013 -] GRN28# BLACK,TRIM2#,4# |
55480-35020-C0 |
— | ||
|
55480D
|
55480D
55480-35020-E0
Panel Assy, Instrument Panel Finish, Lwr
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
55480-35020-E0 |
— | ||
|
55501A
|
55501A
55501-35010-B0
Door Sub-Assy, Glove Compartment
[08.2009 - 05.2011] GRN28# GRAY,TRIM1# |
55501-35010-B0 |
— | ||
| replacement | |||||
|
55501A
|
55501A
55501-35011-B0
Door Sub-Assy, Glove Compartment
[08.2009 - 05.2011] GRN28# GRAY,TRIM1# |
55501-35011-B0 |
— | ||
|
55501A
|
55501A
55501-35010-E0
Door Sub-Assy, Glove Compartment
[08.2009 - 05.2011] GRN28# SAND BEIGE,TRIM4# |
55501-35010-E0 |
— | ||
| replacement | |||||
|
55501A
|
55501A
55501-35011-E0
Door Sub-Assy, Glove Compartment
[08.2009 - 05.2011] GRN28# SAND BEIGE,TRIM4# |
55501-35011-E0 |
— | ||
|
55501A
|
55501A
55501-35011-B0
Door Sub-Assy, Glove Compartment
[06.2011 - 08.2013] GRN28# GRAY,TRIM1# |
55501-35011-B0 |
— | ||
|
55501A
|
55501A
55501-35011-C0
Door Sub-Assy, Glove Compartment
[08.2013 - 01.2017] GRN28# BLACK,TRIM2#,4# |
55501-35011-C0 |
— | ||
|
55501A
|
55501A
55501-35011-E0
Door Sub-Assy, Glove Compartment
[06.2011 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
55501-35011-E0 |
— | ||
|
55501A
|
55501A
55501-35012-C0
Door Sub-Assy, Glove Compartment
[01.2017 -] GRN28# TRIM2#,4# |
55501-35012-C0 |
— | ||
|
55513C
|
55513C
55513-35010
Plate, Radio Tuner Finish
[08.2009 - 08.2013] GRN28# |
55513-35010 |
— | ||
|
55522B
|
55522B
55522-52020 Cover, Stereo Opening[08.2009 - 08.2013] GRN28#; GRN28# AUDIO-AM/FM,CD,SATELLITE,BLUETOOTH,8SPEAKER; GRN28# AUDIO-AM/FM,CD,BLUETOOTH,8SPEAKER |
55522-52020 |
from US $14.14 |
||
|
55531
|
55531
55531-35020
Panel, Glove Compartment
[08.2009 - 05.2012] GRN28# |
55531-35020 |
— | ||
|
55531
|
55531
55531-35030
Panel, Glove Compartment
[06.2012 - 08.2013] GRN28# |
55531-35030 |
— | ||
| replacement | |||||
|
55531
|
55531
55531-35020
Panel, Glove Compartment
[06.2012 - 08.2013] GRN28# |
55531-35020 |
— | ||
|
55539
|
55539
55539-58060-C0 Cover, Spare Switch Hole[08.2009 - 08.2013] GRN28# BLACK |
55539-58060-C0 |
from US $4.88 |
||
|
55539C
|
55539C
55539-52060-C0 Cover, Spare Switch Hole[08.2013 - 01.2017] GRN28# BLACK |
55539-52060-C0 |
from US $3.43 |
||
|
55539C
|
55539C
55539-52060-C4 Cover, Spare Switch Hole[01.2017 -] GRN28# BLACK |
55539-52060-C4 |
from US $3.24 |
||
|
55548
|
55548
55548-60070 Cover, Deck Trim Service HoleINSTRUMENT PANEL HOLE, NO.2 [08.2013 -] GRN28# |
55548-60070 |
US $2.91 |
||
|
55548A
|
55548A
55548-35020
Cover, Instrument Panel Hole
[08.2009 - 08.2013] GRN28# |
55548-35020 |
— | ||
|
55557A
|
55557A
55557-60050 Cushion, Glove Compartment Door CheckGLOVE COMPARTMENT DOOR CHECK [08.2009 - 08.2013] GRN28# |
55557-60050 |
from US $0.82 |
||
|
55560A
|
55560A
55560-35010-B0
Lock Assy, Glove Compartment Door
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
55560-35010-B0 |
— | ||
|
55560A
|
55560A
55560-35010-C0
Lock Assy, Glove Compartment Door
[08.2013 -] GRN28# BLACK,TRIM2#,4# |
55560-35010-C0 |
— | ||
|
55560A
|
55560A
55560-35010-E0
Lock Assy, Glove Compartment Door
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
55560-35010-E0 |
— | ||
|
55569
|
55569
55569-35010-B0
Cover, Glove Compartment Door Lock
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
55569-35010-B0 |
— | ||
|
55569
|
55569
55569-35010-C0
Cover, Glove Compartment Door Lock
[08.2013 -] GRN28# BLACK,TRIM2#,4# |
55569-35010-C0 |
— | ||
|
55569
|
55569
55569-35010-E0
Cover, Glove Compartment Door Lock
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
55569-35010-E0 |
— | ||
|
55574
|
55574
55574-35030 Shaft, Glove Compartment Door HingeGLOVE COMPARTMENT DOOR HINGE [08.2009 - 08.2013] GRN28# |
55574-35030 |
US $1.75 |
||
|
55607
|
55607
55607-35070
Cover Sub-Assy, Instrument Panel Under, No.2
[08.2009 - 08.2013] GRN28# |
55607-35070 |
— | ||
|
55650
|
55650
55650-35090-C0
Register Assy, Instrument Panel, No.1
[08.2013 - 03.2015] GRN28# BLACK,TRIM2#,4# |
55650-35090-C0 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-35092-C0
Register Assy, Instrument Panel, No.1
[08.2013 - 03.2015] GRN28# BLACK,TRIM2#,4# |
55650-35092-C0 |
— | ||
|
55650
|
55650
55650-35091-C0
Register Assy, Instrument Panel, No.1
[04.2015 - 03.2016] GRN28# BLACK,TRIM2#,4# |
55650-35091-C0 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-35092-C0
Register Assy, Instrument Panel, No.1
[04.2015 - 03.2016] GRN28# BLACK,TRIM2#,4# |
55650-35092-C0 |
— | ||
|
55650
|
55650
55650-35092-C0
Register Assy, Instrument Panel, No.1
[04.2016 -] GRN28# BLACK,TRIM2#,4# |
55650-35092-C0 |
— | ||
|
55650
|
55650
55650-35100-C0
Register Assy, Instrument Panel, No.1
[08.2009 - 08.2012] GRN28# BLACK,TRIM1#,4# |
55650-35100-C0 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-35092-C0
Register Assy, Instrument Panel, No.1
[08.2009 - 08.2012] GRN28# BLACK,TRIM1#,4# |
55650-35092-C0 |
— | ||
|
55650
|
55650
55650-35101-C0
Register Assy, Instrument Panel, No.1
[09.2012 - 08.2013] GRN28# BLACK,TRIM1#,4# |
55650-35101-C0 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-35092-C0
Register Assy, Instrument Panel, No.1
[09.2012 - 08.2013] GRN28# BLACK,TRIM1#,4# |
55650-35092-C0 |
— | ||
|
55660
|
55660
55660-35120-C0 Register Assy, Instrument Panel, No.2[08.2013 - 03.2015] GRN28# BLACK,TRIM2#,4# |
55660-35120-C0 |
US $85.90 |
||
| replacement | |||||
|
55660
|
55660
55660-35122-C0
Register Assy, Instrument Panel, No.2
[08.2013 - 03.2015] GRN28# BLACK,TRIM2#,4# |
55660-35122-C0 |
— | ||
|
55660
|
55660
55660-35121-C0
Register Assy, Instrument Panel, No.2
[04.2015 - 03.2016] GRN28# BLACK,TRIM2#,4# |
55660-35121-C0 |
— | ||
| replacement | |||||
|
55660
|
55660
55660-35122-C0
Register Assy, Instrument Panel, No.2
[04.2015 - 03.2016] GRN28# BLACK,TRIM2#,4# |
55660-35122-C0 |
— | ||
|
55660
|
55660
55660-35122-C0
Register Assy, Instrument Panel, No.2
[04.2016 -] GRN28# BLACK,TRIM2#,4# |
55660-35122-C0 |
— | ||
|
55660
|
55660
55660-35140-C0
Register Assy, Instrument Panel, No.2
[08.2009 - 08.2012] GRN28# BLACK,TRIM1#,4# |
55660-35140-C0 |
— | ||
| replacement | |||||
|
55660
|
55660
55660-35122-C0
Register Assy, Instrument Panel, No.2
[08.2009 - 08.2012] GRN28# BLACK,TRIM1#,4# |
55660-35122-C0 |
— | ||
|
55660
|
55660
55660-35141-C0
Register Assy, Instrument Panel, No.2
[09.2012 - 08.2013] GRN28# BLACK,TRIM1#,4# |
55660-35141-C0 |
— | ||
| replacement | |||||
|
55660
|
55660
55660-35122-C0
Register Assy, Instrument Panel, No.2
[09.2012 - 08.2013] GRN28# BLACK,TRIM1#,4# |
55660-35122-C0 |
— | ||
|
55670
|
55670
55670-35040
Register Assy, Instrument Panel, No.3
[08.2009 - 08.2012] GRN28# |
55670-35040 |
— | ||
| replacement | |||||
|
55670
|
55670
55670-35041
Register Assy, Instrument Panel, No.3
[08.2009 - 08.2012] GRN28# |
55670-35041 |
— | ||
|
55670
|
55670
55670-35041
Register Assy, Instrument Panel, No.3
[09.2012 - 08.2013] GRN28# |
55670-35041 |
— | ||
|
55670
|
55670
55670-35050
Register Assy, Instrument Panel, No.3
[08.2013 - 03.2015] GRN28# |
55670-35050 |
— | ||
| replacement | |||||
|
55670
|
55670
55670-35052
Register Assy, Instrument Panel, No.3
[08.2013 - 03.2015] GRN28# |
55670-35052 |
— | ||
|
55670
|
55670
55670-35051
Register Assy, Instrument Panel, No.3
[04.2015 - 03.2016] GRN28# |
55670-35051 |
— | ||
| replacement | |||||
|
55670
|
55670
55670-35052
Register Assy, Instrument Panel, No.3
[04.2015 - 03.2016] GRN28# |
55670-35052 |
— | ||
|
55670
|
55670
55670-35052
Register Assy, Instrument Panel, No.3
[04.2016 -] GRN28# |
55670-35052 |
— | ||
|
55680A
|
55680A
55680-35010
Register Assy, Instrument Panel, No.4
[08.2009 - 08.2012] GRN28# |
55680-35010 |
— | ||
| replacement | |||||
|
55680A
|
55680A
55680-35011
Register Assy, Instrument Panel, No.4
[08.2009 - 08.2012] GRN28# |
55680-35011 |
— | ||
|
55680A
|
55680A
55680-35011
Register Assy, Instrument Panel, No.4
[09.2012 - 08.2013] GRN28# |
55680-35011 |
— | ||
|
55680A
|
55680A
55680-35020
Register Assy, Instrument Panel, No.4
[08.2013 - 03.2015] GRN28# |
55680-35020 |
— | ||
| replacement | |||||
|
55680A
|
55680A
55680-35022
Register Assy, Instrument Panel, No.4
[08.2013 - 03.2015] GRN28# |
55680-35022 |
— | ||
|
55680A
|
55680A
55680-35021
Register Assy, Instrument Panel, No.4
[04.2015 - 03.2016] GRN28# |
55680-35021 |
— | ||
| replacement | |||||
|
55680A
|
55680A
55680-35022
Register Assy, Instrument Panel, No.4
[04.2015 - 03.2016] GRN28# |
55680-35022 |
— | ||
|
55680A
|
55680A
55680-35022
Register Assy, Instrument Panel, No.4
[04.2016 -] GRN28# |
55680-35022 |
— | ||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.66 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $1.07 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.76 |
||
|
9356015010
|
9356015010
93560-15010 New Genuine Part |
93560-15010 |
US $1.43 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
