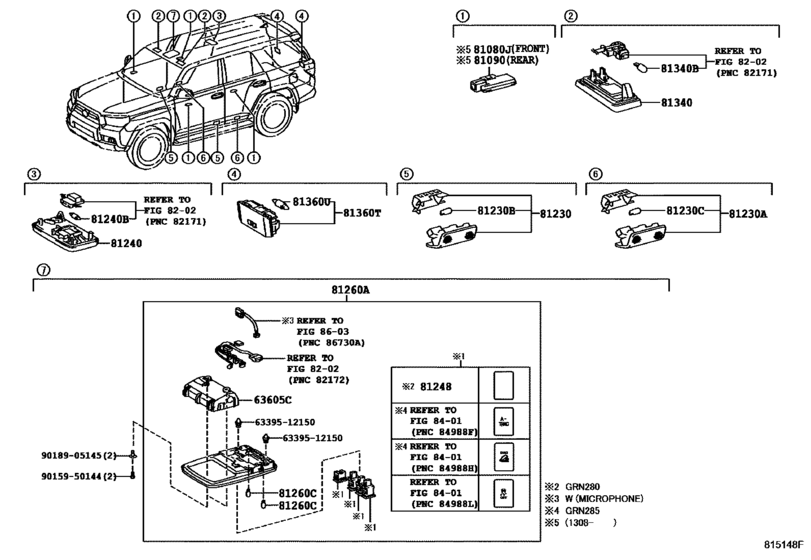

Interior Lamp ([08.2009 - ] (0908- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRN280
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- 4RUNNER
- From
- 08.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63605C
|
63605C
63605-35010-B0
Box Sub-Assy, Roof Console
[08.2009 - 08.2013] GRN28# LT.GRAY,TRIM1# |
63605-35010-B0 |
— | ||
|
63605C
|
63605C
63605-35010-E0
Box Sub-Assy, Roof Console
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
63605-35010-E0 |
— | ||
|
81080J
|
81080J
81080-35010 Lamp Assy, Interior Illumination, No.1 Rh[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RH |
81080-35010 |
US $18.93 |
||
|
81080J
|
81080J
81080-35020 Lamp Assy, Interior Illumination, No.1 Lh[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,LH |
81080-35020 |
US $18.93 |
||
|
81090
|
81090
81080-35010 Lamp Assy, Interior Illumination, No.1 Rh[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RH |
81080-35010 |
US $18.93 |
||
|
81090
|
81090
81080-35020 Lamp Assy, Interior Illumination, No.1 Lh[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,LH |
81080-35020 |
US $18.93 |
||
|
81230
|
81230
81230-30200 Lamp Assy, Courtesy[08.2013 -] GRN28# |
81230-30200 |
from US $12.93 |
||
|
81230
|
81230
81230-47010
Lamp Assy, Courtesy
[08.2009 - 07.2013] GRN28# |
81230-47010 |
— | ||
| replacement | |||||
|
81230
|
81230
81230-30200 Lamp Assy, Courtesy[08.2009 - 07.2013] GRN28# |
81230-30200 |
from US $12.93 |
||
|
81230A
|
81230A
81230-30200 Lamp Assy, Courtesy[08.2013 -] GRN28# |
81230-30200 |
from US $12.93 |
||
|
81230A
|
81230A
81230-47010
Lamp Assy, Courtesy
[08.2009 - 07.2013] GRN28# |
81230-47010 |
— | ||
| replacement | |||||
|
81230A
|
81230A
81230-30200 Lamp Assy, Courtesy[08.2009 - 07.2013] GRN28# |
81230-30200 |
from US $12.93 |
||
|
81230B
|
81230B
90981-12010 Bulb (For Lower Back Finish Panel Emblem)[08.2009 - 08.2013] GRN28# 12V 5W |
90981-12010 |
from US $1.97 |
||
|
81230C
|
81230C
90981-12010 Bulb (For Lower Back Finish Panel Emblem)[08.2009 - 08.2013] GRN28# 12V 5W |
90981-12010 |
from US $1.97 |
||
|
81240
|
81240
81240-35020-B0 Lamp Assy, Room, No.1ROOM, NO.1 [08.2009 - 08.2013] GRN28# LT.GRAY,TRIM1# |
81240-35020-B0 |
US $29.18 |
||
|
81240
|
81240
81240-35020-E0
Lamp Assy, Room, No.1
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
81240-35020-E0 |
— | ||
|
81240B
|
81240B
90981-14011 Bulb, Room Lamp, No.1[08.2009 - 08.2013] GRN28# 12V 8W |
90981-14011 |
from US $1.89 |
||
|
81248
|
81248
55539-58060-C0 Cover, Spare Switch Hole[08.2009 - 08.2013] GRN280 BLACK |
55539-58060-C0 |
from US $4.88 |
||
|
81260A
|
81260A
81260-35070-B0
Lamp Assy, Map
[08.2009 - 08.2013] GRN280 LT.GRAY,TRIM1# |
81260-35070-B0 |
— | ||
|
81260A
|
81260A
81260-35070-E0
Lamp Assy, Map
[08.2009 - 08.2013] GRN280 SAND BEIGE,TRIM4# |
81260-35070-E0 |
— | ||
|
81260A
|
81260A
81260-35080-B0
Lamp Assy, Map
[08.2009 - 08.2013] GRN280 AUDIO-AM/FM,CD,BLUETOOTH,8SPEAKER,LT.GRAY,TRIM1# |
81260-35080-B0 |
— | ||
|
81260A
|
81260A
81260-35080-E0
Lamp Assy, Map
[08.2009 - 08.2013] GRN280 AUDIO-AM/FM,CD,BLUETOOTH,8SPEAKER,SAND BEIGE,TRIM4# |
81260-35080-E0 |
— | ||
|
81260A
|
81260A
81260-35110-B0
Lamp Assy, Map
[08.2009 - 08.2013] GRN280 MOON ROOF-WITH(TILT UP & SLIDE),LT.GRAY,TRIM1# |
81260-35110-B0 |
— | ||
|
81260A
|
81260A
81260-35110-E0
Lamp Assy, Map
[08.2009 - 08.2013] GRN280 MOON ROOF-WITH(TILT UP & SLIDE),SAND BEIGE,TRIM4# |
81260-35110-E0 |
— | ||
|
81260A
|
81260A
81260-35450-B0
Lamp Assy, Map
[08.2009 - 08.2013] GRN280 MOON ROOF-WITH(TILT UP & SLIDE)&AUDIO-AM/FM,CD,BLUETOOTH,8SPEAKER,LT.GRAY,TRIM1# |
81260-35450-B0 |
— | ||
|
81260A
|
81260A
81260-35450-E0
Lamp Assy, Map
[08.2009 - 08.2013] GRN280 MOON ROOF-WITH(TILT UP & SLIDE)&AUDIO-AM/FM,CD,BLUETOOTH,8SPEAKER,SAND BEIGE,TRIM4 # |
81260-35450-E0 |
— | ||
|
81260A
|
81260A
81260-35510-B0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 LT.GRAY,TRIM2# |
81260-35510-B0 |
— | ||
| replacement | |||||
|
81260A
|
81260A
81260-35511-B0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 LT.GRAY,TRIM2# |
81260-35511-B0 |
— | ||
|
81260A
|
81260A
81260-35510-E0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 SAND BEIGE,TRIM4# |
81260-35510-E0 |
— | ||
| replacement | |||||
|
81260A
|
81260A
81260-35511-E0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 SAND BEIGE,TRIM4# |
81260-35511-E0 |
— | ||
|
81260A
|
81260A
81260-35511-B0
Lamp Assy, Map
[01.2015 -] GRN280 LT.GRAY,TRIM2# |
81260-35511-B0 |
— | ||
|
81260A
|
81260A
81260-35511-E0
Lamp Assy, Map
[01.2015 -] GRN280 SAND BEIGE,TRIM4# |
81260-35511-E0 |
— | ||
|
81260A
|
81260A
81260-35520-B0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 AUDIO-*DA,LT.GRAY,TRIM2# |
81260-35520-B0 |
— | ||
| replacement | |||||
|
81260A
|
81260A
81260-35521-B0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 AUDIO-*DA,LT.GRAY,TRIM2# |
81260-35521-B0 |
— | ||
|
81260A
|
81260A
81260-35520-E0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 AUDIO-*DA,SAND BEIGE,TRIM4# |
81260-35520-E0 |
— | ||
| replacement | |||||
|
81260A
|
81260A
81260-35521-E0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 AUDIO-*DA,SAND BEIGE,TRIM4# |
81260-35521-E0 |
— | ||
|
81260A
|
81260A
81260-35521-B0
Lamp Assy, Map
[01.2015 -] GRN280 AUDIO-*DA,LT.GRAY,TRIM2# |
81260-35521-B0 |
— | ||
|
81260A
|
81260A
81260-35521-E0
Lamp Assy, Map
[01.2015 -] GRN280 AUDIO-*DA,SAND BEIGE,TRIM4# |
81260-35521-E0 |
— | ||
|
81260A
|
81260A
81260-35540-B0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 MOON ROOF-WITH(TILT UP & SLIDE),LT.GRAY,TRIM2# |
81260-35540-B0 |
— | ||
| replacement | |||||
|
81260A
|
81260A
81260-35541-B0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 MOON ROOF-WITH(TILT UP & SLIDE),LT.GRAY,TRIM2# |
81260-35541-B0 |
— | ||
|
81260A
|
81260A
81260-35540-E0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 MOON ROOF-WITH(TILT UP & SLIDE),SAND BEIGE,TRIM4# |
81260-35540-E0 |
— | ||
| replacement | |||||
|
81260A
|
81260A
81260-35541-E0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 MOON ROOF-WITH(TILT UP & SLIDE),SAND BEIGE,TRIM4# |
81260-35541-E0 |
— | ||
|
81260A
|
81260A
81260-35541-B0
Lamp Assy, Map
[01.2015 -] GRN280 MOON ROOF-WITH(TILT UP & SLIDE),LT.GRAY,TRIM2# |
81260-35541-B0 |
— | ||
|
81260A
|
81260A
81260-35541-E0
Lamp Assy, Map
[01.2015 -] GRN280 MOON ROOF-WITH(TILT UP & SLIDE),SAND BEIGE,TRIM4# |
81260-35541-E0 |
— | ||
|
81260A
|
81260A
81260-35550-B0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 MOON ROOF-WITH(TILT UP & SLIDE)&AUDIO-*DA,LT.GRAY,TRIM2# |
81260-35550-B0 |
— | ||
| replacement | |||||
|
81260A
|
81260A
81260-35551-B0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 MOON ROOF-WITH(TILT UP & SLIDE)&AUDIO-*DA,LT.GRAY,TRIM2# |
81260-35551-B0 |
— | ||
|
81260A
|
81260A
81260-35550-E0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 MOON ROOF-WITH(TILT UP & SLIDE)&AUDIO-*DA,SAND BEIGE,TRIM4# |
81260-35550-E0 |
— | ||
| replacement | |||||
|
81260A
|
81260A
81260-35551-E0
Lamp Assy, Map
[08.2013 - 12.2014] GRN280 MOON ROOF-WITH(TILT UP & SLIDE)&AUDIO-*DA,SAND BEIGE,TRIM4# |
81260-35551-E0 |
— | ||
|
81260A
|
81260A
81260-35551-B0
Lamp Assy, Map
[01.2015 -] GRN280 MOON ROOF-WITH(TILT UP & SLIDE)&AUDIO-*DA,LT.GRAY,TRIM2# |
81260-35551-B0 |
— | ||
|
81260A
|
81260A
81260-35551-E0
Lamp Assy, Map
[01.2015 -] GRN280 MOON ROOF-WITH(TILT UP & SLIDE)&AUDIO-*DA,SAND BEIGE,TRIM4# |
81260-35551-E0 |
— | ||
|
81260C
|
81260C
90084-81002 Bulb(For Map Lamp)[08.2009 - 08.2013] GRN28# 12V 5W |
90084-81002 |
from US $1.60 |
||
|
81340
|
81340
81340-30100-B0 Lamp Assy, Vanity[08.2009 - 08.2013] GRN28# LT.GRAY,TRIM1# |
81340-30100-B0 |
US $37.46 |
||
|
81340
|
81340
81340-30100-E2 Lamp Assy, Vanity[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
81340-30100-E2 |
US $24.90 |
||
|
81340
|
81340
81340-30110 Lamp Assy, Vanity[08.2013 -] GRN28# |
81340-30110 |
from US $22.07 |
||
|
81340B
|
81340B
90981-11062 Bulb, Room Lamp, No.1[08.2009 - 08.2013] GRN28# 12V 8W |
90981-11062 |
from US $2.26 |
||
|
81360T
|
81360T
81360-35010-B0
Lamp Assy, Spot
[08.2009 - 08.2013] GRN28# LT.GRAY,TRIM1#,4# |
81360-35010-B0 |
— | ||
|
81360U
|
81360U
90981-14011 Bulb, Room Lamp, No.1[08.2009 - 08.2013] GRN28# |
90981-14011 |
from US $1.89 |
||
|
6339512150
|
6339512150
63395-12150 Clip (For Center Pillar Garnish Panel, Upper) |
63395-12150 |
from US $0.90 |
||
|
9015950144
|
9015950144
90159-50144 SCREW |
90159-50144 |
US $1.25 |
||
|
9018905145
|
9018905145
90189-05145 GROMMET SCREW |
90189-05145 |
from US $0.76 |
||
