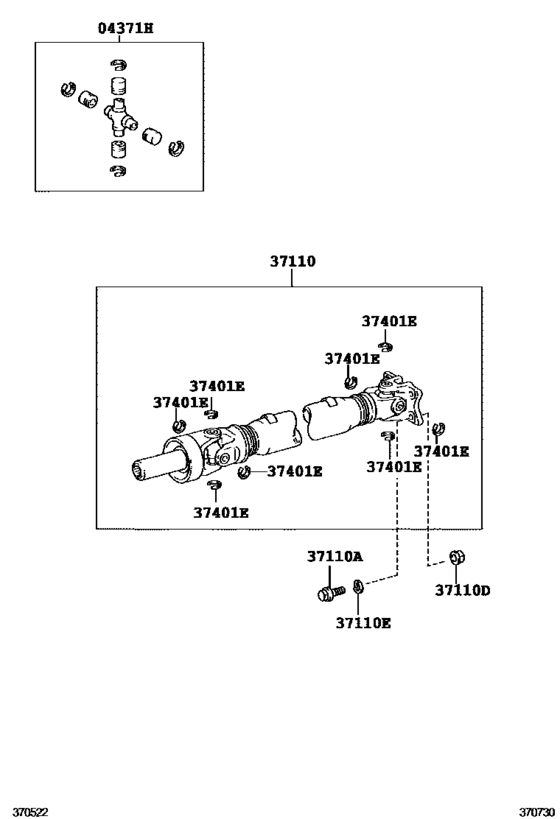

Propeller Shaft & Universal Joint ([08.2009 - ] (0908- )GRN280) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRN280
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- 4RUNNER
- From
- 08.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04371H
|
04371H
04371-60070 Spider Kit, Propeller Shaft Universal Joint[08.2013 -] GRN28# |
04371-60070 |
from US $48.65 |
||
|
04371H
|
04371H
04371-60100 Spider Kit, Universal Joint(For Propeller Shaft)[08.2009 - 08.2013] GRN280 |
04371-60100 |
from US $49.16 |
||
|
37110
|
37110
37110-3D510 Shaft Assy, Propeller[08.2009 - 08.2013] GRN280 |
37110-3D510 |
US $570.75 |
||
|
37110A
|
37110A
90105-11044 Bolt, No.1 (For Propeller Shaft & Differential Setting)[08.2009 - 08.2013] GRN28# *11-1.00PX28-16 |
90105-11044 |
from US $1.13 |
||
|
37110D
|
37110D
90178-11001 Nut, No.1 (For Propeller Shaft & Differential Setting)[08.2009 - 08.2013] GRN280 |
90178-11001 |
from US $0.92 |
||
|
37110E
|
37110E
90201-11013 Washer, No.1 (For Propeller Shaft & Differential Setting)[08.2009 - 08.2013] GRN280 |
90201-11013 |
from US $0.68 |
||
|
37401E
|
37401E
90520-25039 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.29,MARK 1; GRN280 T=2.29,MARK 1 |
90520-25039 |
US $1.61 |
||
|
37401E
|
37401E
90520-25040 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.31,MARK 2; GRN280 T=2.31,MARK 2 |
90520-25040 |
US $1.16 |
||
|
37401E
|
37401E
90520-25041 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.33,NO MARK; GRN280 T=2.33,NO MARK |
90520-25041 |
US $1.10 |
||
|
37401E
|
37401E
90520-25042 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.35,BROWN; GRN280 T=2.35,BROWN |
90520-25042 |
US $1.61 |
||
|
37401E
|
37401E
90520-25043 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.37,BLUE; GRN280 T=2.37,BLUE |
90520-25043 |
US $1.61 |
||
|
37401E
|
37401E
90520-25044 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.39,MARK 6; GRN280 T=2.39,MARK 6 |
90520-25044 |
US $1.16 |
||
|
37401E
|
37401E
90520-25045 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.41,MARK 7; GRN280 T=2.41,MARK 7 |
90520-25045 |
US $1.61 |
||
|
37401E
|
37401E
90520-25046 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.43,MARK 8; GRN280 T=2.43,MARK 8 |
90520-25046 |
US $1.61 |
||
|
37401E
|
37401E
90520-25047 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.45,MARK 9; GRN280 T=2.45,MARK 9 |
90520-25047 |
US $1.61 |
||
|
37401E
|
37401E
90520-25048 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.47,MARK 10; GRN280 T=2.47,MARK 10 |
90520-25048 |
US $1.16 |
||
|
37401E
|
37401E
90520-25049 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.49,MARK A; GRN280 T=2.49,MARK A |
90520-25049 |
US $1.16 |
||
|
37401E
|
37401E
90520-25050 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.51,MARK B; GRN280 T=2.51,MARK B |
90520-25050 |
US $1.61 |
||
|
37401E
|
37401E
90520-25051 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.53,MARK C; GRN280 T=2.53,MARK C |
90520-25051 |
US $1.16 |
||
|
37401E
|
37401E
90520-25052 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.55,MARK D; GRN280 T=2.55,MARK D |
90520-25052 |
US $1.61 |
||
|
37401E
|
37401E
90520-25053 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.57,MARK E; GRN280 T=2.57,MARK E |
90520-25053 |
US $1.61 |
||
|
37401E
|
37401E
90520-25054 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.19,MARK D; GRN280 T=2.19,MARK D |
90520-25054 |
US $0.44 |
||
|
37401E
|
37401E
90520-25055 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.21,MARK E; GRN280 T=2.21,MARK E |
90520-25055 |
US $0.73 |
||
|
37401E
|
37401E
90520-25056 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.23,MARK F; GRN280 T=2.23,MARK F |
90520-25056 |
US $0.69 |
||
|
37401E
|
37401E
90520-25057 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.25,MARK G; GRN280 T=2.25,MARK G |
90520-25057 |
US $0.69 |
||
|
37401E
|
37401E
90520-25058 Ring, Hole Snap (For Spider Bearing)[08.2009 - 08.2013] GRN285 T=2.27,MARK H; GRN280 T=2.27,MARK H |
90520-25058 |
US $0.69 |
