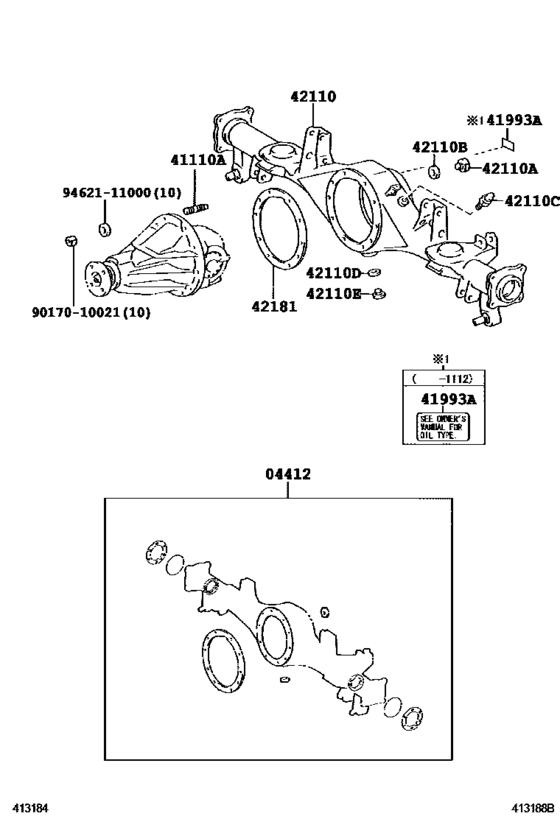

Rear Axle Housing & Differential ([08.2009 - ] (0908- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRN280
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- 4RUNNER
- From
- 08.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04412
|
04412
04412-60500 Gasket Kit, Rear Differential CarrierREAR DIFFERENTIAL CARRIER [08.2009 - 04.2011] GRN28# |
04412-60500 |
US $30.43 |
||
| replacement | |||||
|
04412
|
04412
04412-60501 Gasket Kit, Rear Differential Carrier[08.2009 - 04.2011] GRN28# |
04412-60501 |
from US $24.57 |
||
|
04412
|
04412
04412-60501 Gasket Kit, Rear Differential Carrier[05.2011 - 08.2013] GRN28# |
04412-60501 |
from US $24.57 |
||
|
41110A
|
41110A
90116-10074 Bolt, Stud (For Power Take-Off Case)[08.2009 - 08.2013] GRN28# S=16 & 12.5,L=40.5 |
90116-10074 |
from US $0.90 |
||
|
41993A
|
41993A
41993-34010 Caution Plate, Rear Differential[08.2009 - 12.2011] GRN28# |
41993-34010 |
US $2.45 |
||
|
42110
|
42110
42110-60A80 Housing Assy, Rear AxleREAR AXLE [08.2009 - 12.2012] GRN28# |
42110-60A80 |
US $649.38 |
||
| replacement | |||||
|
42110
|
42110
42110-60A81 Housing Assy, Rear Axle[08.2009 - 12.2012] GRN28# |
42110-60A81 |
from US $751.92 |
||
|
42110
|
42110
42110-60A81 Housing Assy, Rear Axle[01.2013 - 08.2013] GRN28# |
42110-60A81 |
from US $751.92 |
||
|
42110
|
42110
42110-60A90 Housing Assy, Rear AxleREAR AXLE [08.2009 - 12.2012] GRN28# LIMITED PACKAGE |
42110-60A90 |
US $649.38 |
||
| replacement | |||||
|
42110
|
42110
42110-60A91 Housing Assy, Rear Axle[08.2009 - 12.2012] GRN28# LIMITED PACKAGE |
42110-60A91 |
from US $663.23 |
||
|
42110
|
42110
42110-60A91 Housing Assy, Rear Axle[01.2013 - 08.2013] GRN28# LIMITED PACKAGE |
42110-60A91 |
from US $663.23 |
||
|
42110A
|
42110A
90341-18006 Plug (No magnet)[08.2009 - 08.2013] GRN28# |
90341-18006 |
from US $3.23 |
||
|
42110B
|
42110B
12157-10010 Gasket (For Drain Plug)[08.2009 - 08.2013] GRN28# |
12157-10010 |
from US $0.74 |
||
|
42110C
|
42110C
90930-03031 Plug, Breather(For Parking Cover)[08.2009 - 08.2013] GRN28# |
90930-03031 |
from US $6.34 |
||
|
42110D
|
42110D
12157-10010 Gasket (For Drain Plug)[08.2009 - 08.2013] GRN28# |
12157-10010 |
from US $0.74 |
||
|
42110E
|
42110E
90341-18057 Drain Plug (with Magnet)[08.2009 - 08.2013] GRN28# |
90341-18057 |
from US $6.27 |
||
|
42181
|
42181
42181-60140 Gasket, Rear Differential CarrierREAR DIFFERENTIAL CARRIER [08.2009 - 08.2013] GRN28# |
42181-60140 |
from US $5.62 |
||
|
9017010021
|
9017010021
90170-10021 Nut(For Steering Center Arm) |
90170-10021 |
from US $0.62 |
||
|
9462111000
|
9462111000
94621-11000 Washer, Spring(For Steering Center Arm) |
94621-11000 |
from US $1.03 |
||
