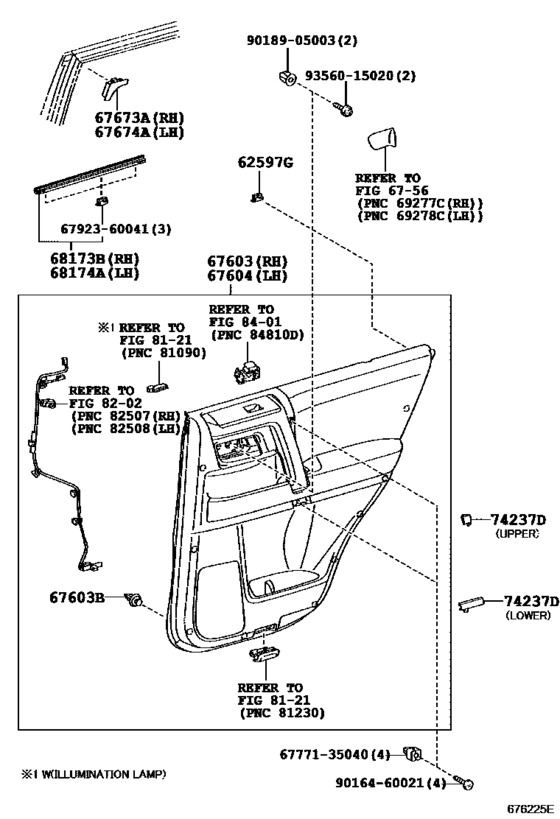

Rear Door Panel & Glass ([08.2009 - ] DOOR TRIM (0908- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRN280
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- 4RUNNER
- From
- 08.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62597G
|
62597G
67923-22070 Clamp, Rear Door Trim[08.2009 - 01.2010] GRN28# |
67923-22070 |
US $2.77 |
||
|
62597G
|
62597G
67923-60041 Clamp, Rear Door Trim[01.2010 - 08.2013] GRN28# |
67923-60041 |
US $3.94 |
||
|
67603
|
67603
67630-35C20-C3
Board Sub-Assy, Rear Door Trim, Rh
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
67630-35C20-C3 |
— | ||
|
67603
|
67603
67630-35C20-C4
Board Sub-Assy, Rear Door Trim, Rh
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
67630-35C20-C4 |
— | ||
|
67603
|
67603
67630-35C40-C0
Board Sub-Assy, Rear Door Trim, Rh
[08.2013 -] GRN28# BLACK,TRIM2# |
67630-35C40-C0 |
— | ||
|
67603
|
67603
67630-35C40-C1
Board Sub-Assy, Rear Door Trim, Rh
[08.2013 -] GRN28# SAND BEIGE,TRIM4# |
67630-35C40-C1 |
— | ||
|
67603
|
67603
67630-35C60-C0
Board Sub-Assy, Rear Door Trim, Rh
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/GRAY NO.205,TRIM22 |
67630-35C60-C0 |
— | ||
|
67603
|
67603
67630-35C60-C1
Board Sub-Assy, Rear Door Trim, Rh
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/SADDLE TAN NO.079,TRIM24 |
67630-35C60-C1 |
— | ||
|
67603
|
67603
67630-35C60-C2
Board Sub-Assy, Rear Door Trim, Rh
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
67630-35C60-C2 |
— | ||
|
67603B
|
67603B
90467-09206 Clip, Front Air Shutter Seal[08.2009 - 08.2013] GRN28# |
90467-09206 |
from US $0.47 |
||
|
67604
|
67604
67640-35B40-C0
Board Sub-Assy, Rear Door Trim, Lh
[08.2013 -] GRN28# BLACK,TRIM2# |
67640-35B40-C0 |
— | ||
|
67604
|
67604
67640-35B40-C1
Board Sub-Assy, Rear Door Trim, Lh
[08.2013 -] GRN28# SAND BEIGE,TRIM4# |
67640-35B40-C1 |
— | ||
|
67604
|
67604
67640-35C20-C3
Board Sub-Assy, Rear Door Trim, Lh
[08.2009 - 08.2013] GRN28# GRAY,TRIM1# |
67640-35C20-C3 |
— | ||
|
67604
|
67604
67640-35C20-C4
Board Sub-Assy, Rear Door Trim, Lh
[08.2009 - 08.2013] GRN28# SAND BEIGE,TRIM4# |
67640-35C20-C4 |
— | ||
|
67604
|
67604
67640-35C40-C0
Board Sub-Assy, Rear Door Trim, Lh
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/GRAY NO.205,TRIM22 |
67640-35C40-C0 |
— | ||
|
67604
|
67604
67640-35C40-C1
Board Sub-Assy, Rear Door Trim, Lh
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/SADDLE TAN NO.079,TRIM24 |
67640-35C40-C1 |
— | ||
|
67604
|
67604
67640-35C40-C2
Board Sub-Assy, Rear Door Trim, Lh
[08.2013 -] GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
67640-35C40-C2 |
— | ||
|
67673A
|
67673A
67673-48010 Garnish, Rear Door Frame, Rh[08.2009 - 08.2013] GRN28# |
67673-48010 |
from US $2.20 |
||
|
67674A
|
67674A
67674-48010 Garnish, Rear Door Frame, Lh[08.2009 - 08.2013] GRN28# |
67674-48010 |
from US $2.13 |
||
|
68173B
|
68173B
68173-60060 Weatherstrip, Rear Door Glass, Inner RhREAR DOOR GLASS, INNER RH [08.2009 - 08.2013] GRN28# |
68173-60060 |
from US $28.67 |
||
|
68174A
|
68174A
68174-60060 Weatherstrip, Rear Door Glass, Inner LhREAR DOOR GLASS, INNER LH [08.2009 - 08.2013] GRN28# |
68174-60060 |
from US $28.67 |
||
|
74237D
|
74237D
74225-35020-C0 Cap, Rear Door Armrest BaseREAR DOOR ARMREST BASE [08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4#,RH,LOWER |
74225-35020-C0 |
US $1.31 |
||
|
74237D
|
74237D
74225-35030-C0 Cap, Rear Door Armrest BaseREAR DOOR ARMREST BASE [08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4#,RH,UPPER |
74225-35030-C0 |
US $2.91 |
||
|
74237D
|
74237D
74226-35020-C0
Cap, Rear Door Armrest Base
[08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4#,LH,LOWER |
74226-35020-C0 |
— | ||
|
74237D
|
74237D
74226-35030-C0
Cap, Rear Door Armrest Base
[08.2009 - 08.2013] GRN28# BLACK,TRIM1#,4#,LH,UPPER |
74226-35030-C0 |
— | ||
|
6777135040
|
6777135040
67771-35040 Weatherstrip, Back Door Trim, Rh |
67771-35040 |
US $2.15 |
||
|
6792360041
|
6792360041
67923-60041 Clamp, Rear Door Trim |
67923-60041 |
US $3.94 |
||
|
9016460021
|
9016460021
90164-60021 SCREW BINDING |
90164-60021 |
from US $0.66 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.13 |
||
|
9356015020
|
9356015020
93560-15020 SCREW |
93560-15020 |
from US $0.52 |
