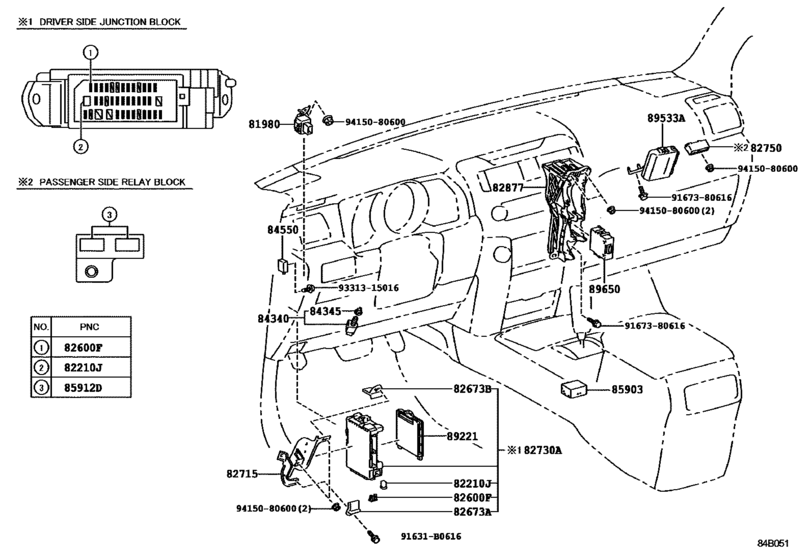

Switch & Relay & Computer ([08.2009 - 08.2013] COWL (0908-1308)) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRN280
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- 4RUNNER
- From
- 08.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- 4Runner
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-60130
Flasher Assy, Turn Signal
[08.2009 - 08.2013] GRN28# |
81980-60130 |
— | ||
|
82210J
|
82210J
90982-08286 Fusible Link[08.2009 - 08.2013] GRN28# 140A,TERMINAL:MALE |
90982-08286 |
from US $8.60 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[08.2009 - 08.2013] GRN28# 30A,TERMINAL:FEMALE,ENGINE ROOM R/B |
90982-08295 |
from US $6.99 |
||
|
82210J
|
82210J
90982-08302 Fusible Link[08.2009 - 08.2013] GRN28# 50A-30A-50A,FEMALE |
90982-08302 |
from US $6.99 |
||
|
82210J
|
82210J
90982-08305 Fusible Link[08.2009 - 08.2013] GRN28# 80A,TERMINAL:FEMALE |
90982-08305 |
from US $6.99 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[08.2009 - 08.2013] GRN28# 30A,TERMINAL:FEMALE,DRIVER SIDE J/B |
90982-08306 |
from US $6.99 |
||
|
82210J
|
82210J
90982-08307 Fusible Link[10.2011 - 08.2013] GRN28# 50A,TERMINAL:FEMALE |
90982-08307 |
from US $4.95 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[08.2009 - 08.2013] GRN28# 7.5A,MINI FUSE |
90982-09020 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[08.2009 - 08.2013] GRN28# 10A,MINI FUSE |
90982-09021 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[08.2009 - 08.2013] GRN28# 15A,MINI FUSE |
90982-09022 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[08.2009 - 08.2013] GRN28# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[08.2009 - 08.2013] GRN28# 25A,MINI FUSE |
90982-09024 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[08.2009 - 08.2013] GRN28# 30A,MINI FUSE |
90982-09025 |
from US $0.76 |
||
|
82673A
|
82673A
82673-48030
Bracket, Junction Block
[08.2009 - 08.2013] GRN28# |
82673-48030 |
— | ||
|
82673B
|
82673B
82673-60070 Bracket, Junction BlockJUNCTION BLOCK [08.2009 - 08.2013] GRN28# |
82673-60070 |
US $5.68 |
||
|
82715
|
82715
82715-6A110
Bracket,wiring Harness Clamp
[08.2009 - 08.2013] GRN28# |
82715-6A110 |
— | ||
|
82730A
|
82730A
82730-35410 Block Assy, Driver Side JunctionDRIVER SIDE JUNCTION [08.2009 - 08.2013] GRN28# |
82730-35410 |
US $164.53 |
||
|
82750
|
82750
82750-35010
Block Assy, Passenger Side Relay
[08.2009 - 08.2013] GRN28# |
82750-35010 |
— | ||
|
82877
|
82877
82877-60010
Box, Computer Integration, Rh
[08.2009 - 08.2013] GRN28# |
82877-60010 |
— | ||
|
84340
|
84340
84340-19025
Switch Assy, Stop Lamp
[08.2009 - 08.2013] GRN28# |
84340-19025 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-19026 SWITCH ASSY, STOP[08.2009 - 08.2013] GRN28# |
84340-19026 |
from US $20.81 |
||
|
84340
|
84340
84340-59635 Switch Assy, Stop Lamp[08.2013 -] GRN28# |
84340-59635 |
from US $26.77 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[08.2009 - 08.2013] GRN28# |
84345-51010 |
from US $3.45 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[08.2009 - 08.2013] GRN28# |
84550-30080 |
from US $20.33 |
||
|
85903
|
85903
85903-35010
Computer Sub-Assy, Shift Lock Control
[08.2009 - 04.2011] GRN28# |
85903-35010 |
— | ||
| replacement | |||||
|
85903
|
85903
85903-52010 Computer Sub-Assy, Shift Lock Control[08.2009 - 04.2011] GRN28# |
85903-52010 |
US $41.41 |
||
|
85903
|
85903
85903-52010 Computer Sub-Assy, Shift Lock Control[05.2011 - 08.2013] GRN28# |
85903-52010 |
US $41.41 |
||
|
85912D
|
85912D
90987-04004 Relay, Starter Cut[08.2009 - 08.2013] GRN28# |
90987-04004 |
from US $47.21 |
||
|
89221
|
89221
89220-35040
Computer, Multiplex Network Body
[08.2009 - 10.2011] GRN28# LIMITED PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89220-35040 |
— | ||
|
89221
|
89221
89220-35041
Computer, Multiplex Network Body
[10.2011 - 08.2012] GRN28# LIMITED PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89220-35041 |
— | ||
|
89221
|
89221
89220-35042
Computer, Multiplex Network Body
[08.2012 - 08.2013] GRN28# LIMITED PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89220-35042 |
— | ||
|
89221
|
89221
89220-35050
Computer, Multiplex Network Body
[08.2009 - 10.2011] GRN28# SR5 PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89220-35050 |
— | ||
|
89221
|
89221
89220-35051
Computer, Multiplex Network Body
[10.2011 - 08.2012] GRN28# SR5 PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89220-35051 |
— | ||
|
89221
|
89221
89220-35052
Computer, Multiplex Network Body
[08.2012 - 08.2013] GRN28# SR5 PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89220-35052 |
— | ||
|
89221
|
89221
89220-35060
Computer, Multiplex Network Body
[08.2009 - 10.2011] GRN28# |
89220-35060 |
— | ||
|
89221
|
89221
89220-35061
Computer, Multiplex Network Body
[10.2011 - 08.2012] GRN28# |
89220-35061 |
— | ||
|
89221
|
89221
89220-35062
Computer, Multiplex Network Body
[08.2012 - 08.2013] GRN28# |
89220-35062 |
— | ||
|
89221
|
89221
89220-35120
Computer, Multiplex Network Body
[08.2009 - 10.2011] GRN28# CHILI SPEC&LIMITED PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89220-35120 |
— | ||
|
89221
|
89221
89220-35121
Computer, Multiplex Network Body
[10.2011 - 08.2012] GRN28# CHILI SPEC&LIMITED PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89220-35121 |
— | ||
|
89221
|
89221
89220-35122
Computer, Multiplex Network Body
[08.2012 - 08.2013] GRN28# CHILI SPEC&LIMITED PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89220-35122 |
— | ||
|
89221
|
89221
89220-35130
Computer, Multiplex Network Body
[08.2009 - 10.2011] GRN28# CHILI SPEC&SR5 PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89220-35130 |
— | ||
|
89221
|
89221
89220-35131
Computer, Multiplex Network Body
[10.2011 - 08.2012] GRN28# CHILI SPEC&SR5 PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89220-35131 |
— | ||
|
89221
|
89221
89220-35132
Computer, Multiplex Network Body
[08.2012 - 08.2013] GRN28# CHILI SPEC&SR5 PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89220-35132 |
— | ||
|
89221
|
89221
89220-35140
Computer, Multiplex Network Body
[08.2009 - 10.2011] GRN28# CHILI SPEC |
89220-35140 |
— | ||
|
89221
|
89221
89220-35141
Computer, Multiplex Network Body
[10.2011 - 08.2012] GRN28# CHILI SPEC |
89220-35141 |
— | ||
|
89221
|
89221
89220-35142
Computer, Multiplex Network Body
[08.2012 - 08.2013] GRN28# CHILI SPEC |
89220-35142 |
— | ||
|
89221
|
89221
89220-35360
Computer, Multiplex Network Body
[08.2013 -] GRN28# LIMITED PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SEAT COVER MATERIAL-LE ATHER |
89220-35360 |
— | ||
|
89221
|
89221
89220-35370
Computer, Multiplex Network Body
[08.2013 -] GRN28# SR5 PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89220-35370 |
— | ||
|
89221
|
89221
89220-35380
Computer, Multiplex Network Body
[08.2013 -] GRN28# |
89220-35380 |
— | ||
|
89221
|
89221
89220-35390
Computer, Multiplex Network Body
[08.2013 -] GRN28# CHILE SPEC&LIMITED PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SEAT COVER MATERIAL-LEATHER |
89220-35390 |
— | ||
|
89221
|
89221
89220-35400
Computer, Multiplex Network Body
[08.2013 -] GRN28# CHILE SPEC&SR5 PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89220-35400 |
— | ||
|
89221
|
89221
89220-35410
Computer, Multiplex Network Body
[08.2013 -] GRN28# CHILE SPEC |
89220-35410 |
— | ||
|
89650
|
89650
89650-35030 Computer Assy, Power SteeringPOWER STEERING [08.2009 - 08.2013] GRN28# |
89650-35030 |
US $202.38 |
||
|
89650
|
89650
89650-35050 Computer Assy, Power Steering[08.2013 -] GRN28# |
89650-35050 |
US $197.43 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.66 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9331315016
|
9331315016
93313-15016 New Genuine Part |
93313-15016 |
US $0.73 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
