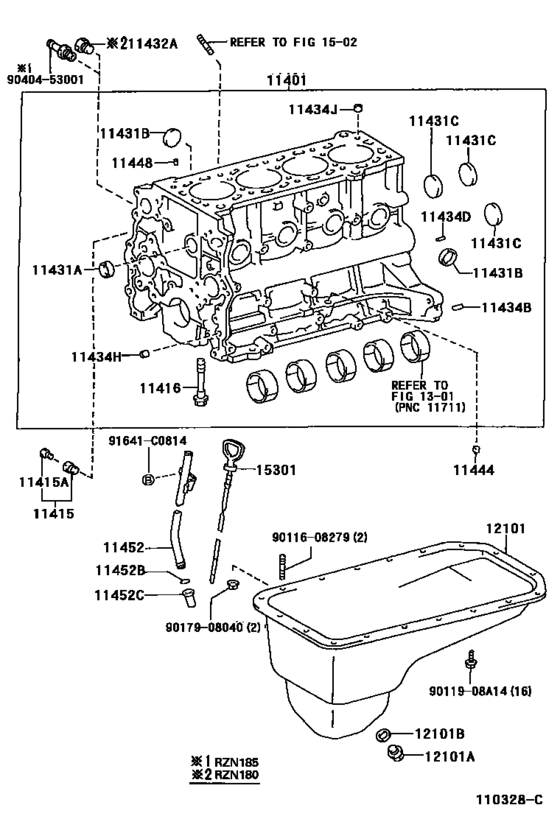

Cylinder Block ([11.1995 - ] (9511- )3RZFE) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1995 - 2000
- Sales region
- U.S.A.
- Frame
- RZN180
- grade
- SR5B
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- Model
- 4RUNNER
- From
- 11.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-79685 Block Sub-Assy, Cylinder[11.1995 - 04.1999] 3RZFE..RZN18# |
11401-79685 |
US $3,276 |
||
| replacement | |||||
|
11401
|
11401
11401-79687 Block Sub-Assy, Cylinder[11.1995 - 04.1999] 3RZFE..RZN18# |
11401-79687 |
US $3,290.56 |
||
|
11401
|
11401
11401-79686 Block Sub-Assy, Cylinder[04.1999 - 08.2000] 3RZFE..RZN18# |
11401-79686 |
US $3,276 |
||
| replacement | |||||
|
11401
|
11401
11401-79687 Block Sub-Assy, Cylinder[04.1999 - 08.2000] 3RZFE..RZN18# |
11401-79687 |
US $3,290.56 |
||
|
11415
|
11415
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[11.1995 - 05.1999] 3RZFE..RZN18# |
90345-52001 |
from US $4.12 |
||
|
11415
|
11415
90910-09118 Cock Sub-Assy, Water Drain(For Cylinder Block)[05.1999 - 08.2000] 3RZFE..RZN18# |
90910-09118 |
US $6.25 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[05.1999 - 08.2000] 3RZFE..RZN18# |
90910-09087 |
from US $3.02 |
||
|
11416
|
11416
90910-02092 Bolt(For Crankshaft Bearing Cap Set)[11.1995 - 08.2000] 3RZFE..RZN18# |
90910-02092 |
US $4.37 |
||
| replacement | |||||
|
11416
|
11416
90910-02179 Bolt(For Crankshaft Bearing Cap Set)[11.1995 - 08.2000] 3RZFE..RZN18# |
90910-02179 |
US $4.84 |
||
|
11431A
|
11431A
96411-63000 Plug, Tight[11.1995 - 08.2000] 3RZFE..RZN18# |
96411-63000 |
from US $3.76 |
||
|
11431B
|
11431B
96411-63500 Plug, Tight[11.1995 - 08.2000] 3RZFE..RZN18# |
96411-63500 |
from US $3.58 |
||
|
11431C
|
11431C
96411-64000 Plug, Tight, No.2[11.1995 - 08.2000] 3RZFE..RZN18# |
96411-64000 |
from US $4.12 |
||
|
11432A
|
11432A
90345-53009 Plug, W/head Taper Screw, No.1[11.1995 - 08.2000] 3RZFE..RZN180 |
90345-53009 |
US $3.14 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[11.1995 - 08.2000] 3RZFE..RZN18# L=22,OD=10 |
90250-10113 |
from US $1.17 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[11.1995 - 08.2000] 3RZFE..RZN18# L=14,OD=6 |
90250-06003 |
US $1.61 |
||
|
11434H
|
11434H
90253-11005 Pin, Ring(For Camshaft Bearing Cap Setting)[11.1995 - 08.2000] 3RZFE..RZN18# |
90253-11005 |
US $1.08 |
||
|
11434J
|
11434J
90253-15016 Pin, Straight(For End Plate)[11.1995 - 08.2000] 3RZFE..RZN18# |
90253-15016 |
from US $1.37 |
||
|
11444
|
11444
11444-75020 Plug, Hole[11.1995 - 08.2000] 3RZFE..RZN18# |
11444-75020 |
US $2.04 |
||
|
11448
|
11448
90977-02011 Orifice, Cylinder Block Oil[11.1995 - 08.2000] 3RZFE..RZN18# |
90977-02011 |
US $1.31 |
||
|
11452
|
11452
11409-75040
Guide, Oil Level Gage
[11.1995 - 02.1999] 3RZFE..RZN18# |
11409-75040 |
— | ||
| replacement | |||||
|
11452
|
11452
11409-75041 Guide, Oil Level Gage[11.1995 - 02.1999] 3RZFE..RZN18# |
11409-75041 |
US $24.29 |
||
|
11452
|
11452
11409-75041 Guide, Oil Level Gage[02.1999 - 08.2000] 3RZFE..RZN18# |
11409-75041 |
US $24.29 |
||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[11.1995 - 08.2000] 3RZFE..RZN18# |
96721-19010 |
from US $1.60 |
||
|
11452C
|
11452C
11459-70010 Union(For Oil Level Gage Guide)[02.1999 - 08.2000] 3RZFE..RZN18# |
11459-70010 |
US $7.16 |
||
|
11452C
|
11452C
90405-10016 Union(For Oil Level Gage Guide)[11.1995 - 02.1999] 3RZFE..RZN18# |
90405-10016 |
US $5.42 |
||
|
12101
|
12101
12101-75050 Pan Sub-Assy, Oil[11.1995 - 08.2000] 3RZFE..RZN18# |
12101-75050 |
US $218.40 |
||
|
12101A
|
12101A
90341-12026
Plug, Drain
[11.1995 - 08.2000] 3RZFE..RZN18# |
90341-12026 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[11.1995 - 08.2000] 3RZFE..RZN18# |
90341-12012 |
from US $2.87 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[11.1995 - 08.2000] 3RZFE..RZN18# |
90430-12031 |
from US $0.84 |
||
|
15301
|
15301
15301-75060 Gage Sub-Assy, Oil Level[11.1995 - 08.2000] 3RZFE..RZN18# |
15301-75060 |
from US $14.94 |
||
|
91641C0814
|
91641C0814
91641-C0814 BOLTWWASHER |
91641-C0814 |
US $1.79 |
||
|
9011908A14
|
9011908A14
90119-08A14 BOLT WWASHER |
90119-08A14 |
US $2.33 |
||
|
9011608279
|
9011608279
90116-08279 BOLT STUD |
90116-08279 |
from US $1.29 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9040453001
|
9040453001
90404-53001 Union(For Cylinder Block) |
90404-53001 |
US $6.45 |
||
