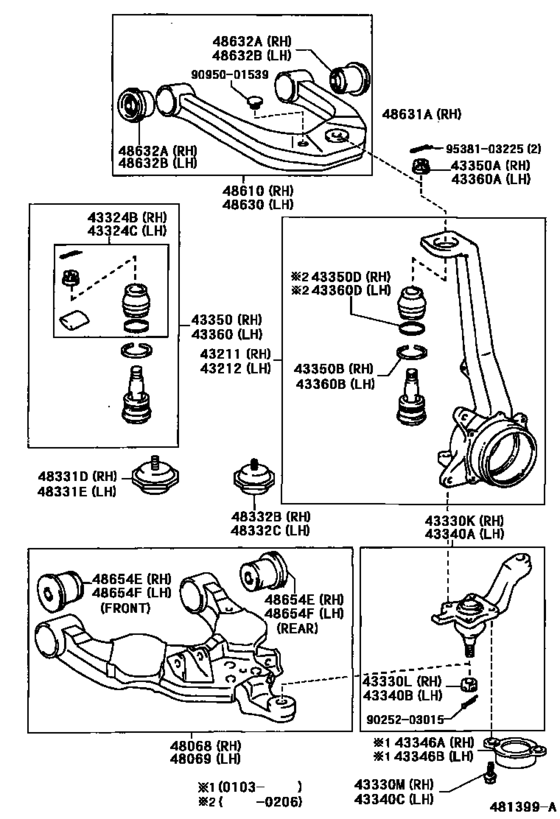

Front Axle Arm & Steering Knuckle ([11.1995 - ] (9511- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1995 - 2000
- Sales region
- U.S.A.
- Frame
- RZN180
- grade
- SR5B
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- Model
- 4RUNNER
- From
- 11.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43201-35070
Knuckle, Steering, Rh
[11.1995 - 08.2000] RZN18# |
43201-35070 |
— | ||
| replacement | |||||
|
43211
|
43211
43201-35071
Knuckle, Steering, Rh
[11.1995 - 08.2000] RZN18# |
43201-35071 |
— | ||
|
43211
|
43211
43201-35080
Knuckle, Steering, Rh
[11.1995 - 08.2000] RZN18# W(ABS) |
43201-35080 |
— | ||
| replacement | |||||
|
43211
|
43211
43201-35081 Knuckle, Steering, Rh[11.1995 - 08.2000] RZN18# W(ABS) |
43201-35081 |
from US $515.19 |
||
|
43212
|
43212
43202-35060
Knuckle, Steering, Lh
[11.1995 - 08.2000] RZN18# |
43202-35060 |
— | ||
| replacement | |||||
|
43212
|
43212
43202-35061 Knuckle, Steering, LhSTEERING, LH [11.1995 - 08.2000] RZN18# |
43202-35061 |
US $566.28 |
||
|
43212
|
43212
43202-35070
Knuckle, Steering, Lh
[11.1995 - 08.2000] RZN18# W(ABS) |
43202-35070 |
— | ||
| replacement | |||||
|
43212
|
43212
43202-35071 Knuckle, Steering, Lh[11.1995 - 08.2000] RZN18# W(ABS) |
43202-35071 |
US $566.28 |
||
|
43324B
|
43324B
43324-39015 Cover, Front Upper Ball Joint Dust, Rh[11.1995 - 08.2002] RZN18#,VZN18# |
43324-39015 |
from US $7.76 |
||
|
43324C
|
43324C
43324-39015 Cover, Front Upper Ball Joint Dust, Rh[11.1995 - 08.2002] RZN18#,VZN18# |
43324-39015 |
from US $7.76 |
||
|
43330K
|
43330K
43330-39415
Joint Assy, Lower Ball, Front Rh
[11.1995 - 03.2001] RZN18#,VZN18# |
43330-39415 |
— | ||
| replacement | |||||
|
43330K
|
43330K
43330-39585 Joint Assy, Lower Ball, Front Rh[11.1995 - 03.2001] RZN18#,VZN18# |
43330-39585 |
from US $106.60 |
||
|
43330L
|
43330L
90171-16050 Nut, Castle (For Front Lower Ball Joint Setting)[11.1995 - 08.2002] RZN18#,VZN18# |
90171-16050 |
from US $2.87 |
||
|
43330M
|
43330M
90105-10406 Bolt (For Front Lower Ball Joint Rh)[11.1995 - 09.2000] RZN18#,VZN18# |
90105-10406 |
from US $1.15 |
||
|
43340A
|
43340A
43340-39325
Joint Assy, Lower Ball, Front Lh
[11.1995 - 03.2001] RZN18#,VZN18# |
43340-39325 |
— | ||
| replacement | |||||
|
43340A
|
43340A
43340-39465 Joint Assy, Lower Ball, Front Lh[11.1995 - 03.2001] RZN18#,VZN18# |
43340-39465 |
from US $106.60 |
||
|
43340B
|
43340B
90171-16050 Nut, Castle (For Front Lower Ball Joint Setting)[11.1995 - 08.2002] RZN18#,VZN18# |
90171-16050 |
from US $2.87 |
||
|
43340C
|
43340C
90105-10406 Bolt (For Front Lower Ball Joint Rh)[11.1995 - 09.2000] RZN18#,VZN18# |
90105-10406 |
from US $1.15 |
||
|
43350
|
43350
43310-39016 Joint Assy, Front Upper Ball[11.1995 - 08.2002] RZN18#,VZN18# |
43310-39016 |
from US $67.37 |
||
|
43350A
|
43350A
90171-14010 Nut (For Front Upper Ball Joint Rh)[11.1995 - 08.2002] RZN18#,VZN18# |
90171-14010 |
from US $1.42 |
||
|
43350B
|
43350B
90520-39180 Ring, Snap (For Front Upper Ball Joint Rh)[11.1995 - 08.2002] RZN18#,VZN18# |
90520-39180 |
US $1.65 |
||
|
43350D
|
43350D
90580-10001 Ring, Set (For Dust Cover)[11.1995 - 06.2002] RZN18#,VZN18# |
90580-10001 |
US $1.79 |
||
|
43360
|
43360
43310-39016 Joint Assy, Front Upper Ball[11.1995 - 08.2002] RZN18#,VZN18# |
43310-39016 |
from US $67.37 |
||
|
43360A
|
43360A
90171-14010 Nut (For Front Upper Ball Joint Rh)[11.1995 - 08.2002] RZN18#,VZN18# |
90171-14010 |
from US $1.42 |
||
|
43360B
|
43360B
90520-39180 Ring, Snap (For Front Upper Ball Joint Rh)[11.1995 - 08.2002] RZN18#,VZN18# |
90520-39180 |
US $1.65 |
||
|
43360D
|
43360D
90580-10001 Ring, Set (For Dust Cover)[11.1995 - 06.2002] RZN18#,VZN18# |
90580-10001 |
US $1.79 |
||
|
48068
|
48068
48068-35080
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[11.1995 - 03.1998] RZN18#,VZN18# |
48068-35080 |
— | ||
| replacement | |||||
|
48068
|
48068
48068-35081 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[11.1995 - 03.1998] RZN18#,VZN18# |
48068-35081 |
from US $273.35 |
||
|
48068
|
48068
48068-35081 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[03.1998 - 02.2001] RZN18#,VZN18# |
48068-35081 |
from US $273.35 |
||
|
48069
|
48069
48069-35080
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[11.1995 - 03.1998] RZN18#,VZN18# |
48069-35080 |
— | ||
| replacement | |||||
|
48069
|
48069
48069-35081 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[11.1995 - 03.1998] RZN18#,VZN18# |
48069-35081 |
from US $325.34 |
||
|
48069
|
48069
48069-35081 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[03.1998 - 02.2001] RZN18#,VZN18# |
48069-35081 |
from US $325.34 |
||
|
48331D
|
48331D
48304-35150 Bumper, Front Spring, No.1 Rh[11.1995 - 02.2001] RZN18#,VZN18# |
48304-35150 |
US $33.43 |
||
|
48331E
|
48331E
48304-35150 Bumper, Front Spring, No.1 Rh[11.1995 - 02.2001] RZN18#,VZN18# |
48304-35150 |
US $33.43 |
||
|
48332B
|
48332B
48305-35040 Bumper, Front Spring, No.2 Rh[11.1995 - 02.2001] RZN18#,VZN18# |
48305-35040 |
from US $17.97 |
||
|
48332C
|
48332C
48305-35040 Bumper, Front Spring, No.2 Rh[11.1995 - 02.2001] RZN18#,VZN18# |
48305-35040 |
from US $17.97 |
||
|
48610
|
48610
48610-35040 Arm Assy, Front Suspension Upper, Rh[11.1995 - 02.2001] RZN18#,VZN18# |
48610-35040 |
from US $201.60 |
||
|
48630
|
48630
48630-35020 Arm Assy, Front Suspension, Upper Lh[11.1995 - 02.2001] RZN18#,VZN18# |
48630-35020 |
from US $201.60 |
||
|
48632A
|
48632A
48632-35080 Bush, Front Suspension Upper Arm, RH, LH[11.1995 - 02.2001] RZN18#,VZN18# |
48632-35080 |
from US $25.87 |
||
|
48632B
|
48632B
48632-35080 Bush, Front Suspension Upper Arm, RH, LH[11.1995 - 02.2001] RZN18#,VZN18# |
48632-35080 |
from US $25.87 |
||
|
48654E
|
48654E
48061-35040 Bush, Front Lower Arm, No.1 (Front)FRONT [11.1995 - 02.2001] RZN18#,VZN18# FRONT |
48061-35040 |
from US $47.97 |
||
|
48654E
|
48654E
48061-35050 Bush, Front Lower Arm, No.1 (Rear)REAR [11.1995 - 02.2001] RZN18#,VZN18# REAR |
48061-35050 |
from US $48.20 |
||
|
48654F
|
48654F
48061-35040 Bush, Front Lower Arm, No.1 (Front)FRONT [11.1995 - 02.2001] RZN18#,VZN18# FRONT |
48061-35040 |
from US $47.97 |
||
|
48654F
|
48654F
48061-35050 Bush, Front Lower Arm, No.1 (Rear)REAR [11.1995 - 02.2001] RZN18#,VZN18# REAR |
48061-35050 |
from US $48.20 |
||
|
9025203015
|
9025203015
90252-03015 PIN COTTER |
90252-03015 |
from US $0.94 |
||
|
9095001539
|
9095001539
90950-01539 PLUG HOLE |
90950-01539 |
from US $1.37 |
||
|
9538103225
|
9538103225
95381-03225 PIN COTTER |
95381-03225 |
from US $0.70 |
||
