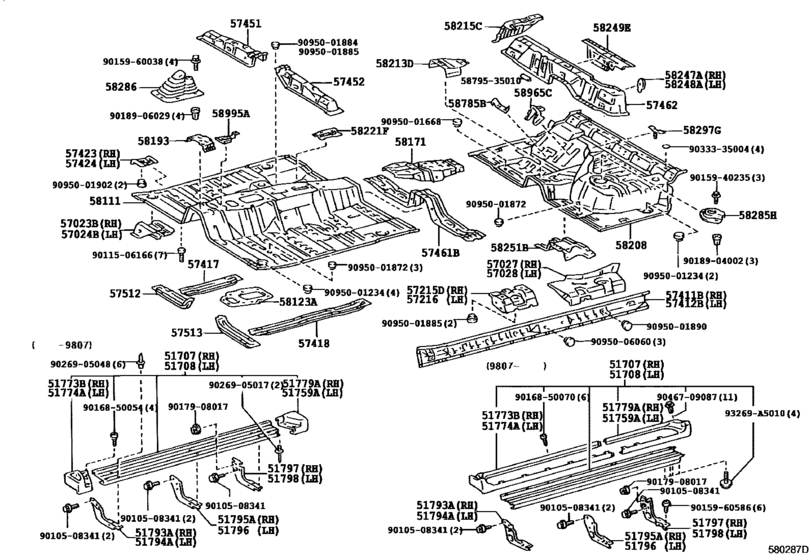

Front Floor Panel & Front Floor Member ([11.1995 - ] (9511- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1995 - 2000
- Sales region
- U.S.A.
- Frame
- RZN180
- grade
- SR5B
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- Model
- 4RUNNER
- From
- 11.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57023B
|
57023B
57023-35020
Bracket Sub-Assy, Body Mounting, No.2 Rh
[11.1995 -] RZN18#,VZN18# |
57023-35020 |
— | ||
|
57024B
|
57024B
57024-35020
Bracket Sub-Assy, Body Mounting, No.2 Lh
[11.1995 -] RZN18#,VZN18# |
57024-35020 |
— | ||
|
57027
|
57027
57027-35010 Bracket Sub-Assy, Body Mounting, No.4 Rh[11.1995 - 07.1998] RZN18#,VZN18# |
57027-35010 |
US $88.82 |
||
|
57027
|
57027
57027-35040 Bracket Sub-Assy, Body Mounting, No.4 Rh[07.1998 -] RZN18#,VZN18# |
57027-35040 |
US $88.82 |
||
|
57028
|
57028
57028-35010 Bracket Sub-Assy, Body Mounting, No.4 Lh[11.1995 - 07.1998] RZN18#,VZN18# |
57028-35010 |
US $88.82 |
||
|
57028
|
57028
57028-35040 Bracket Sub-Assy, Body Mounting, No.4 Lh[07.1998 -] RZN18#,VZN18# |
57028-35040 |
US $88.82 |
||
|
57215D
|
57215D
57025-35040 Bracket, Body Mounting, No.3 Rh[08.1996 -] RZN18#,VZN18# |
57025-35040 |
US $88.82 |
||
|
57215D
|
57215D
57215-35030 Bracket, Body Mounting, No.3 Rh[11.1995 - 08.1996] RZN18#,VZN18# |
57215-35030 |
US $88.82 |
||
|
57216
|
57216
57026-35030
Bracket Sub-Assy, Body Mounting, No.3 Lh
[08.1996 -] RZN18#,VZN18# |
57026-35030 |
— | ||
|
57216
|
57216
57216-35030 Bracket Sub-Assy, Body Mounting, No.3 Lh[11.1995 - 08.1996] RZN18#,VZN18# |
57216-35030 |
US $88.82 |
||
|
57411B
|
57411B
57401-35900 Member, Floor Side, Inner Rh[11.1995 - 08.1996] RZN18#,VZN18# |
57401-35900 |
US $269.36 |
||
| replacement | |||||
|
57411B
|
57411B
57401-35903 Member, Floor Side, Inner Rh[11.1995 - 08.1996] RZN18#,VZN18# |
57401-35903 |
US $269.36 |
||
|
57411B
|
57411B
57401-35904 Member, Floor Side, Inner Rh[08.1996 -] RZN18#,VZN18# |
57401-35904 |
US $272.27 |
||
|
57412B
|
57412B
57402-35900 Member, Floor Side, Inner Lh[11.1995 - 08.1996] RZN18#,VZN18# |
57402-35900 |
US $269.36 |
||
| replacement | |||||
|
57412B
|
57412B
57402-35903 Member, Floor Side, Inner Lh[11.1995 - 08.1996] RZN18#,VZN18# |
57402-35903 |
US $269.36 |
||
|
57412B
|
57412B
57402-35904 Member, Floor Side, Inner Lh[08.1996 - 07.1998] RZN18#,VZN18# |
57402-35904 |
US $273.73 |
||
|
57412B
|
57412B
57402-35905 Member, Floor Side, Inner Lh[07.1998 -] RZN18#,VZN18# |
57402-35905 |
US $272.27 |
||
|
57417
|
57417
57417-35030 Reinforcement, Front Floor Under, Rh[11.1995 -] RZN18#,VZN18# |
57417-35030 |
US $28.39 |
||
|
57418
|
57418
57418-35030 Reinforcement, Front Floor Under, Lh[11.1995 -] RZN18#,VZN18# |
57418-35030 |
US $51.25 |
||
|
57423
|
57423
57423-35010
Bracket, Front Floor Reinforcement, Rh
[11.1995 -] RZN18#,VZN18# |
57423-35010 |
— | ||
|
57424
|
57424
57424-35010
Bracket, Front Floor Reinforcement, Lh
[11.1995 -] RZN18#,VZN18# |
57424-35010 |
— | ||
|
57451
|
57451
57451-35030
Member, Front Floor Cross
[11.1995 -] RZN18#,VZN18# |
57451-35030 |
— | ||
|
57452
|
57452
57452-35040
Member, Front Floor Cross, Lh
[11.1995 -] RZN18#,VZN18# |
57452-35040 |
— | ||
|
57461B
|
57461B
57407-35020 Member Sub-Assy, Center Floor Cross, No.1[11.1995 -] RZN18#,VZN18# |
57407-35020 |
US $142.69 |
||
|
57462
|
57462
57462-35010 Member, Center Floor Cross, No.2[07.1998 -] RZN18#,VZN18# |
57462-35010 |
US $100.46 |
||
|
57512
|
57512
57512-35010 Reinforcement, Front Floor, Rh[11.1995 -] RZN18#,VZN18# |
57512-35010 |
US $36.69 |
||
|
57513
|
57513
57513-35010 Reinforcement, Front Floor, Lh[11.1995 -] RZN18#,VZN18# |
57513-35010 |
US $37.42 |
||
|
58111
|
58111
58111-35120 Pan, Front FloorFRONT FLOOR [11.1995 - 07.1998] RZN180..5F |
58111-35120 |
US $711.98 |
||
| replacement | |||||
|
58111
|
58111
58111-35122 Pan, Front FloorFRONT FLOOR [11.1995 - 07.1998] RZN180..5F |
58111-35122 |
US $713.44 |
||
|
58111
|
58111
58111-35121 Pan, Front FloorFRONT FLOOR [07.1998 - 01.2000] RZN180..5F |
58111-35121 |
US $713.44 |
||
| replacement | |||||
|
58111
|
58111
58111-35122 Pan, Front FloorFRONT FLOOR [07.1998 - 01.2000] RZN180..5F |
58111-35122 |
US $713.44 |
||
|
58111
|
58111
58111-35122 Pan, Front FloorFRONT FLOOR [01.2000 - 08.2000] RZN180..5F |
58111-35122 |
US $713.44 |
||
|
58111
|
58111
58111-35160 Pan, Front FloorFRONT FLOOR [11.1995 - 07.1998] RZN180..5F W(REAR HEATER) |
58111-35160 |
US $711.98 |
||
| replacement | |||||
|
58111
|
58111
58111-35122 Pan, Front FloorFRONT FLOOR [11.1995 - 07.1998] RZN180..5F W(REAR HEATER) |
58111-35122 |
US $713.44 |
||
|
58111
|
58111
58111-35161 Pan, Front FloorFRONT FLOOR [07.1998 - 01.2000] RZN180..5F W(REAR HEATER) |
58111-35161 |
US $713.44 |
||
| replacement | |||||
|
58111
|
58111
58111-35122 Pan, Front FloorFRONT FLOOR [07.1998 - 01.2000] RZN180..5F W(REAR HEATER) |
58111-35122 |
US $713.44 |
||
|
58111
|
58111
58111-35162 Pan, Front FloorFRONT FLOOR [01.2000 - 08.2000] RZN180..5F W(REAR HEATER) |
58111-35162 |
US $713.44 |
||
| replacement | |||||
|
58111
|
58111
58111-35122 Pan, Front FloorFRONT FLOOR [01.2000 - 08.2000] RZN180..5F W(REAR HEATER) |
58111-35122 |
US $713.44 |
||
|
58123A
|
58123A
58123-35020 Support, Shift & Select Lever[08.1996 - 08.2000] RZN18#,VZN185..5F |
58123-35020 |
US $59.11 |
||
|
58171
|
58171
58171-35010 Reinforcement, Parking Brake Base[11.1995 - 07.1998] RZN18#,VZN18# |
58171-35010 |
US $91.73 |
||
| replacement | |||||
|
58171
|
58171
58171-35012 Reinforcement, Parking Brake Base[11.1995 - 07.1998] RZN18#,VZN18# |
58171-35012 |
US $91.73 |
||
|
58171
|
58171
58171-35011 Reinforcement, Parking Brake Base[07.1998 - 01.2000] RZN18#,VZN18# |
58171-35011 |
US $91.73 |
||
| replacement | |||||
|
58171
|
58171
58171-35012 Reinforcement, Parking Brake Base[07.1998 - 01.2000] RZN18#,VZN18# |
58171-35012 |
US $91.73 |
||
|
58171
|
58171
58171-35012 Reinforcement, Parking Brake Base[01.2000 - 08.2000] RZN18#,VZN18# |
58171-35012 |
US $91.73 |
||
|
58193
|
58193
58109-60010 Bracket, Instrument Panel Brace Mounting[07.1998 -] RZN18#,VZN18# |
58109-60010 |
US $34.51 |
||
|
58193
|
58193
58193-35030 Bracket, Instrument Panel Brace Mounting[11.1995 - 08.1997] RZN18#,VZN18# |
58193-35030 |
US $34.65 |
||
|
58193
|
58193
58193-35050 Bracket, Instrument Panel Brace Mounting[08.1997 - 11.1997] RZN18#,VZN18# |
58193-35050 |
US $34.94 |
||
| replacement | |||||
|
58193
|
58193
58193-35051 Bracket, Instrument Panel Brace Mounting[08.1997 - 11.1997] RZN18#,VZN18# |
58193-35051 |
US $35.24 |
||
|
58193
|
58193
58193-35051 Bracket, Instrument Panel Brace Mounting[11.1997 - 07.1998] RZN18#,VZN18# |
58193-35051 |
US $35.24 |
||
|
58208
|
58208
58211-35010 Pan, Center Floor[11.1995 -] RZN18#,VZN18# |
58211-35010 |
US $503.78 |
||
|
58213D
|
58213D
58213-35010 Reinforcement, Center Floor Panel[11.1995 -] RZN18#,VZN18# |
58213-35010 |
US $39.02 |
||
|
58215C
|
58215C
58215-35010 Reinforcement, Center Floor Panel, No.2 Rh[11.1995 -] RZN18#,VZN18# |
58215-35010 |
US $29.85 |
||
|
58221F
|
58221F
58221-35010 Reinforcement, Floor Panel, Front Rh[11.1995 - 04.1996] RZN18#,VZN18# |
58221-35010 |
US $10.19 |
||
|
58247A
|
58247A
58247-35010 Reinforcement, Rear Seat Cushion Hinge, Rh[11.1995 -] RZN18#,VZN18# |
58247-35010 |
US $4.95 |
||
|
58248A
|
58248A
58247-35010 Reinforcement, Rear Seat Cushion Hinge, Rh[11.1995 -] RZN18#,VZN18# |
58247-35010 |
US $4.95 |
||
|
58249E
|
58249E
58249-35010 Reinforcement, Rear Seat Mounting[11.1995 -] RZN18#,VZN18# |
58249-35010 |
US $49.94 |
||
|
58251B
|
58251B
58251-35010 Brace, Floor Panel, Front[11.1995 -] RZN18#,VZN18# |
58251-35010 |
US $32.03 |
||
|
58285H
|
58285H
58285-35010
Cover, Center Floor Hole
[11.1995 -] RZN18#,VZN18# |
58285-35010 |
— | ||
|
58286
|
58286
58280-35010 Boot, Shift & Select Lever, No.1SHIFT & SELECT LEVER, NO.1 [11.1995 - 08.2000] RZN180..5F |
58280-35010 |
US $78.62 |
||
|
58297G
|
58297G
58297-35020 Retainer, Floor Clamp[11.1995 -] RZN18#,VZN18# |
58297-35020 |
US $4.95 |
||
|
58785B
|
58785B
58785-89106 Bracket, Tool Bag Band[11.1995 -] RZN18#,VZN18# |
58785-89106 |
US $6.70 |
||
|
58965C
|
58965C
58965-35030 Holder, Jack[11.1995 -] RZN18#,VZN18# |
58965-35030 |
US $13.40 |
||
|
58995A
|
58995A
58995-35020 Bracket, Console Box Mounting, No.1[11.1995 -] RZN18#,VZN18# |
58995-35020 |
US $7.72 |
||
|
93269A5010
|
93269A5010
93269-A5010 New Genuine Part |
93269-A5010 |
US $0.73 |
||
|
5879535010
|
5879535010
58795-35010 Trim, Jack House Opening |
58795-35010 |
US $4.95 |
||
|
9010508341
|
9010508341
90105-08341 BOLT WASHER BASED |
90105-08341 |
US $2.33 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.94 |
||
|
9015940235
|
9015940235
90159-40235
New Genuine Part
|
90159-40235 |
— | ||
|
9015960038
|
9015960038
90159-60038 SCREWTAPPING |
90159-60038 |
US $3.40 |
||
|
9015960586
|
9015960586
90159-60586 SCREW WWASHER |
90159-60586 |
US $1.97 |
||
|
9016850054
|
9016850054
90168-50054 SCREW TAPPING |
90168-50054 |
US $2.15 |
||
|
9016850070
|
9016850070
90168-50070 New Genuine Part |
90168-50070 |
US $1.38 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.78 |
||
|
9018904002
|
9018904002
90189-04002 GROMMET |
90189-04002 |
from US $2.15 |
||
|
9018906029
|
9018906029
90189-06029 GROMMET |
90189-06029 |
from US $0.84 |
||
|
9026905017
|
9026905017
90269-05017 Rivet |
90269-05017 |
US $4.80 |
||
|
9026905048
|
9026905048
90269-05048 RIVET |
90269-05048 |
from US $0.98 |
||
|
9033335004
|
9033335004
90333-35004 Plate, Noise Control, No.1 |
90333-35004 |
US $1.25 |
||
|
9046709087
|
9046709087
90467-09087
Clip(For Floor Carpet, Rear)
|
90467-09087 |
— | ||
| replacement | |||||
|
9046709087
|
9046709087
90467-09087-22 Clip |
90467-09087-22 |
from US $0.70 |
||
|
9095001234
|
9095001234
90950-01234 Cover, Rear Floor Hole |
90950-01234 |
US $3.58 |
||
|
9095001668
|
9095001668
90950-01668 New Genuine Part |
90950-01668 |
US $0.79 |
||
|
9095001872
|
9095001872
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001884
|
9095001884
90950-01884
New Genuine Part
|
90950-01884 |
— | ||
|
9095001885
|
9095001885
90950-01885 New Genuine Part |
90950-01885 |
US $4.02 |
||
|
9095001890
|
9095001890
90950-01890 PLUG HOLE |
90950-01890 |
US $3.05 |
||
|
9095001902
|
9095001902
90950-01902 New Genuine Part |
90950-01902 |
US $0.70 |
||
|
9095006060
|
9095006060
90950-06060 New Genuine Part |
90950-06060 |
US $1.97 |
||
