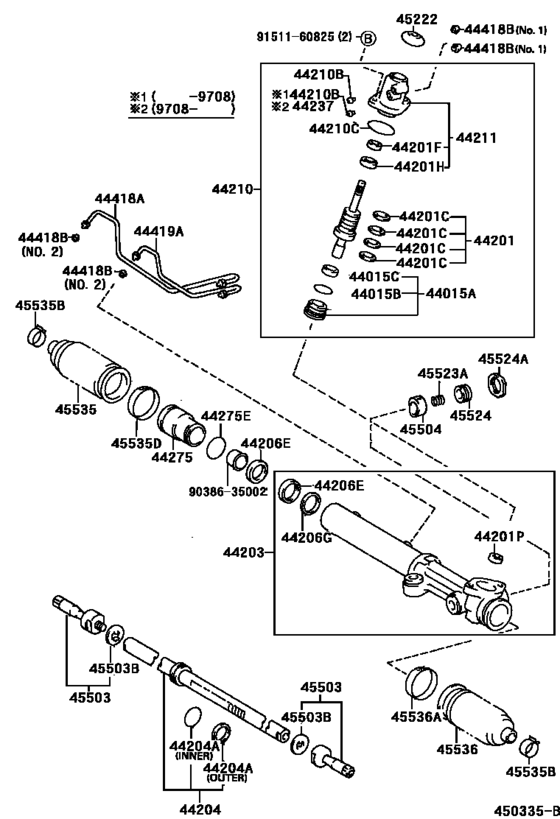

Front Steering Gear & Link ([11.1995 - ] (9511- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1995 - 2000
- Sales region
- U.S.A.
- Frame
- RZN180
- grade
- SR5B
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- Model
- 4RUNNER
- From
- 11.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44015A
|
44015A
44015-22020 Nut Sub-Assy, Bearing Guide[11.1995 - 08.2002] RZN18#,VZN18# |
44015-22020 |
US $96.10 |
||
|
44015B
|
44015B
90301-43002 Ring, O(For Bearing Guide Nut)[11.1995 - 08.2002] RZN18#,VZN18# |
90301-43002 |
from US $2.15 |
||
|
44015C
|
44015C
90310-25004 Seal, Oil(For Bearing Guide Nut)[11.1995 - 08.2002] RZN18#,VZN18# |
90310-25004 |
from US $3.23 |
||
|
44201
|
44201
44201-35020
Valve Sub-Assy, Power Steering Control
[11.1995 - 08.1999] RZN18#,VZN18# |
44201-35020 |
— | ||
|
44201
|
44201
44201-35021 Valve Sub-Assy, Power Steering ControlPOWER STEERING CONTROL [08.1999 - 08.2002] RZN18#,VZN18# |
44201-35021 |
US $294.11 |
||
|
44201C
|
44201C
90562-33007 Ring(For Power Steering Control Valve)[11.1995 - 08.2002] RZN18#,VZN18# |
90562-33007 |
US $1.97 |
||
|
44201F
|
44201F
90311-19002 Seal, Oil(For Adjuster Plug)[11.1995 - 08.2002] RZN18#,VZN18# |
90311-19002 |
from US $3.40 |
||
|
44201H
|
44201H
90363-19003 Bearing(For Rear Steering Control Valve Housing)[11.1995 - 08.2002] RZN18#,VZN18# |
90363-19003 |
US $20.83 |
||
|
44201P
|
44201P
90364-13003 Bearing(For Power Steering Control Valve Lower)[11.1995 - 08.2002] RZN18#,VZN18# |
90364-13003 |
from US $8.04 |
||
|
44203
|
44203
44203-35040 Housing Sub-Assy, Power Steering RackPOWER STEERING RACK [11.1995 - 08.2002] RZN18#,VZN18# |
44203-35040 |
US $645.01 |
||
|
44204
|
44204
44204-35020
Rack Sub-Assy, Power Steering
[11.1995 - 07.2000] RZN18#,VZN18# |
44204-35020 |
— | ||
|
44204
|
44204
44204-35050
Rack Sub-Assy, Power Steering
[07.2000 - 08.2002] RZN18#,VZN18# |
44204-35050 |
— | ||
|
44204A
|
44204A
90301-43006 Ring(For Rack Steering Piston)[11.1995 - 08.2002] RZN18#,VZN18# INNER |
90301-43006 |
US $4.30 |
||
|
44204A
|
44204A
90562-47003 Ring(For Rack Steering Piston)[11.1995 - 08.2002] RZN18#,VZN18# OUTER |
90562-47003 |
from US $0.96 |
||
|
44206E
|
44206E
90310-35009
Seal, Oil, No.1(For Power Steering Cylinder Tube)
[11.1995 - 08.2002] RZN18#,VZN18# |
90310-35009 |
— | ||
| replacement | |||||
|
44206E
|
44206E
90310-35012 Seal, Oil, No.1(For Power Steering Cylinder Tube)[11.1995 - 08.2002] RZN18#,VZN18# |
90310-35012 |
from US $4.12 |
||
|
44206G
|
44206G
90560-35013 Spacer, No.1(For Power Steering Cylinder Tube)[11.1995 - 08.2002] RZN18#,VZN18# |
90560-35013 |
US $2.80 |
||
|
44210
|
44210
44210-35020
Valve Assy, Power Steering Control
[11.1995 - 08.1997] RZN18#,VZN18# |
44210-35020 |
— | ||
| replacement | |||||
|
44210
|
44210
44210-35021 Valve Assy, Power Steering ControlPOWER STEERING CONTROL [11.1995 - 08.1997] RZN18#,VZN18# |
44210-35021 |
US $563.47 |
||
|
44210
|
44210
44210-35021 Valve Assy, Power Steering ControlPOWER STEERING CONTROL [08.1997 - 08.2002] RZN18#,VZN18# |
44210-35021 |
US $563.47 |
||
|
44210B
|
44210B
90410-06005 Seat, Union(Pressure Control Valve Assy)[08.1997 - 08.2002] RZN18#,VZN18# |
90410-06005 |
US $2.87 |
||
|
44210C
|
44210C
90301-51001 Ring, O(For Adjuster Plug)[11.1995 - 08.2002] RZN18#,VZN18# |
90301-51001 |
from US $2.20 |
||
|
44211
|
44211
44022-35020
Housing, Control Valve
[11.1995 - 08.1997] RZN18#,VZN18# |
44022-35020 |
— | ||
| replacements | |||||
|
44211
|
44211
44210-35021 Valve Assy, Power Steering ControlPOWER STEERING CONTROL [11.1995 - 08.1997] RZN18#,VZN18# |
44210-35021 |
US $563.47 |
||
|
44211
|
44211
44210-60021 Valve Assy, Power Steering ControlPOWER STEERING CONTROL [11.1995 - 08.1997] RZN18#,VZN18# |
44210-60021 |
US $563.47 |
||
|
44211
|
44211
44022-35030
Housing, Control Valve
[08.1997 - 08.1999] RZN18#,VZN18# |
44022-35030 |
— | ||
| replacements | |||||
|
44211
|
44211
44210-35021 Valve Assy, Power Steering ControlPOWER STEERING CONTROL [08.1997 - 08.1999] RZN18#,VZN18# |
44210-35021 |
US $563.47 |
||
|
44211
|
44211
44210-60021 Valve Assy, Power Steering ControlPOWER STEERING CONTROL [08.1997 - 08.1999] RZN18#,VZN18# |
44210-60021 |
US $563.47 |
||
|
44211
|
44211
44022-35031
Housing, Control Valve
[08.1999 - 08.2002] RZN18#,VZN18# |
44022-35031 |
— | ||
|
44237
|
44237
44237-21010 Seat, Union(For Power Steering Control Valve)[08.1997 - 08.2002] RZN18#,VZN18# |
44237-21010 |
US $7.16 |
||
|
44275
|
44275
44275-35010 Stopper, Cylinder End[11.1995 - 08.2002] RZN18#,VZN18# |
44275-35010 |
US $49.21 |
||
|
44275E
|
44275E
90301-46001 Ring, O(For Cylinder End Stopper)[11.1995 - 08.2002] RZN18#,VZN18# |
90301-46001 |
US $4.89 |
||
|
44418A
|
44418A
44418-35050
Tube, Steering Right Turn Pressure
[11.1995 - 08.2002] RZN18#,VZN18# |
44418-35050 |
— | ||
|
44418B
|
44418B
90410-04001 Seat, Union(For Steering Turn Pressure Tube)[11.1995 - 08.1999] RZN18#,VZN18# NO.1 |
90410-04001 |
US $3.05 |
||
|
44418B
|
44418B
90410-04002 Seat, Union(For Power Steering Rack Housing)[11.1995 - 08.2000] RZN18#,VZN18# NO.2 |
90410-04002 |
US $3.05 |
||
|
44419A
|
44419A
44419-35050
Tube, Steering Left Turn Pressure
[11.1995 - 08.2002] RZN18#,VZN18# |
44419-35050 |
— | ||
|
45222
|
45222
45222-35020 Cover, Dust(For Power Steering Gear)[11.1995 - 08.2002] RZN18#,VZN18# |
45222-35020 |
US $5.73 |
||
|
45503
|
45503
45503-39075 End Sub-Assy, Steering Rack[11.1995 - 08.2002] RZN18#,VZN18# |
45503-39075 |
from US $135.80 |
||
|
45503B
|
45503B
90214-18002 Washer, Claw(For Steering Rack End)[11.1995 - 08.2002] RZN18#,VZN18# OD=47 |
90214-18002 |
US $4.84 |
||
|
45504
|
45504
45504-35010
End Sub-Assy, Steering Rack, No.2
[11.1995 - 08.2000] RZN18#,VZN18# |
45504-35010 |
— | ||
|
45523A
|
45523A
90501-26063 Spring(For Power Steering Rack Guide)[11.1995 - 08.2000] RZN18#,VZN18# |
90501-26063 |
US $3.20 |
||
|
45524
|
45524
45524-35010 Cap, Steering Rack Guide Spring[11.1995 - 08.2000] RZN18#,VZN18# |
45524-35010 |
US $20.09 |
||
|
45524A
|
45524A
90179-48003 Nut(For Steering Rack Guide Spring Cap)[11.1995 - 08.2002] RZN18#,VZN18# |
90179-48003 |
US $3.14 |
||
|
45535
|
45535
45535-35010
Boot, Steering Rack, No.1
[11.1995 - 06.1997] RZN18#,VZN18# |
45535-35010 |
— | ||
| replacement | |||||
|
45535
|
45535
45535-35030 Boot, Steering Rack, No.1[11.1995 - 06.1997] RZN18#,VZN18# |
45535-35030 |
from US $18.10 |
||
|
45535
|
45535
45535-35030 Boot, Steering Rack, No.1[06.1997 - 08.2002] RZN18#,VZN18# |
45535-35030 |
from US $18.10 |
||
|
45535B
|
45535B
90467-33005 Clamp Or Clip, Hose(For Radiator Inlet)[11.1995 - 08.2002] RZN18#,VZN18# |
90467-33005 |
from US $4.27 |
||
|
45535D
|
45535D
90460-62006 Clamp(For Steering Rack Boot No.1)[11.1995 - 08.2002] RZN18#,VZN18# |
90460-62006 |
from US $4.95 |
||
|
45536
|
45536
45535-35010
Boot, Steering Rack, No.1
[11.1995 - 06.1997] RZN18#,VZN18# |
45535-35010 |
— | ||
| replacement | |||||
|
45536
|
45536
45535-35030 Boot, Steering Rack, No.1[11.1995 - 06.1997] RZN18#,VZN18# |
45535-35030 |
from US $18.10 |
||
|
45536
|
45536
45535-35030 Boot, Steering Rack, No.1[06.1997 - 08.2002] RZN18#,VZN18# |
45535-35030 |
from US $18.10 |
||
|
45536A
|
45536A
90460-62006 Clamp(For Steering Rack Boot No.1)[11.1995 - 08.2002] RZN18#,VZN18# |
90460-62006 |
from US $4.95 |
||
|
9038635002
|
9038635002
90386-35002 BUSH |
90386-35002 |
from US $1.31 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.07 |
||
