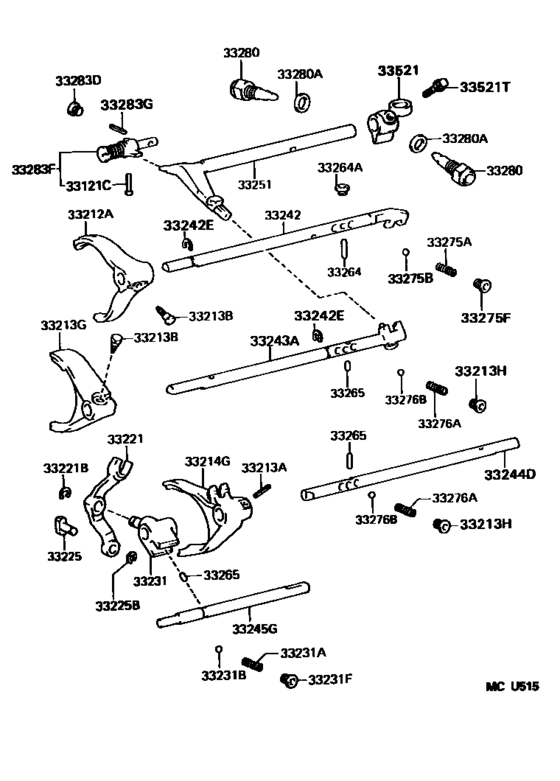

Gear Shift Fork & Lever Shaft (Mtm) ([11.1995 - 08.2000] W59 (9511-0008)RZN180..5F) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1995 - 2000
- Sales region
- U.S.A.
- Frame
- RZN180
- grade
- SR5B
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- Model
- 4RUNNER
- From
- 11.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33121C
|
33121C
90241-04030 Pin(For Transmission Case Cover)[11.1995 - 08.2000] RZN18#..5F L=23.5,OD=6 |
90241-04030 |
US $1.75 |
||
|
33212A
|
33212A
33212-30050 Fork, Gear Shift, No.1[11.1995 - 08.2000] RZN18#..5F |
33212-30050 |
US $35.47 |
||
|
33213A
|
33213A
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[11.1995 - 08.2000] RZN18#,VZN185..5F |
90254-05016 |
from US $1.95 |
||
|
33213B
|
33213B
90105-06143 Bolt(For Shift Fork Set)[11.1995 - 08.2000] RZN18#..5F |
90105-06143 |
US $1.10 |
||
|
33213G
|
33213G
33213-30060 Fork, Gear Shift, No.2[11.1995 - 08.2000] RZN18#..5F |
33213-30060 |
from US $35.90 |
||
|
33213H
|
33213H
90341-12005 Plug, W/head Straight Screw, No.2[11.1995 - 08.1998] RZN18#..5F |
90341-12005 |
US $4.95 |
||
| replacement | |||||
|
33213H
|
33213H
90341-12018 Plug, W/head Straight Screw, No.2[11.1995 - 08.1998] RZN18#..5F |
90341-12018 |
US $2.48 |
||
|
33213H
|
33213H
90341-12018 Plug, W/head Straight Screw, No.2[08.1998 - 08.2000] RZN18#..5F |
90341-12018 |
US $2.48 |
||
|
33214G
|
33214G
33230-30011 Fork, Gear Shift, No.3[11.1995 - 08.2000] RZN18#..5F |
33230-30011 |
US $45.72 |
||
|
33221
|
33221
33221-22020
Arm, Reverse Shift
[11.1995 - 08.2000] RZN18#..5F |
33221-22020 |
— | ||
|
33221B
|
33221B
96160-00800 Ring, E(For Counter Weight)[11.1995 - 08.2000] RZN18#..5F |
96160-00800 |
from US $0.88 |
||
|
33225
|
33225
33225-22020
Shoe, Shift Arm
[11.1995 - 08.2000] RZN18#..5F |
33225-22020 |
— | ||
|
33225B
|
33225B
96160-00600 Ring, E(For Clutch Pedal Pawl)[11.1995 - 05.2000] RZN18#..5F |
96160-00600 |
from US $0.84 |
||
|
33231
|
33231
33231-22040 Head, Reverse Shift[11.1995 - 08.2000] RZN18#..5F |
33231-22040 |
US $20.24 |
||
|
33231A
|
33231A
90501-10052 Spring, Reverse Shift Restrict[11.1995 - 08.2000] RZN18#..5F |
90501-10052 |
US $1.16 |
||
|
33231B
|
33231B
90360-08009 Ball, Reverse Shift Restrict[11.1995 - 08.2000] RZN18#..5F |
90360-08009 |
US $1.40 |
||
|
33231F
|
33231F
90341-10016 Plug, W/head Straight Screw, No.2[11.1995 - 08.2000] RZN18#..5F |
90341-10016 |
US $1.31 |
||
|
33242
|
33242
33242-30070 Shaft, Gear Shift Fork, No.1[11.1995 - 08.2000] RZN18#..5F |
33242-30070 |
US $57.08 |
||
|
33242E
|
33242E
90520-12003 Ring(For Reverse Shift Head)[11.1995 - 08.2000] RZN18#..5F |
90520-12003 |
from US $0.92 |
||
|
33243A
|
33243A
33243-30130
Shaft Assy, Gear Shift Fork, No.2
[11.1995 - 08.2000] RZN18#..5F |
33243-30130 |
— | ||
|
33244D
|
33244D
33244-30050
Shaft, Reverse Shift Fork
[11.1995 - 08.2000] RZN18#..5F |
33244-30050 |
— | ||
|
33245G
|
33245G
33245-22011 Shaft, Gear Shift Fork, No.4[11.1995 - 08.2000] RZN18#..5F |
33245-22011 |
US $25.33 |
||
|
33251
|
33251
33251-30100 Lever, Shift & Select[11.1995 - 08.2000] RZN180..5F |
33251-30100 |
US $49.21 |
||
| replacements | |||||
|
33251
|
33251
33251-30101 Lever, Shift & Select[11.1995 - 08.2000] RZN180..5F |
33251-30101 |
US $36.42 |
||
|
33251
|
33251
90109-08305 Pin Or Bolt (For Shift Lever Housing)[11.1995 - 08.2000] RZN180..5F |
90109-08305 |
US $1.43 |
||
|
33264
|
33264
33264-22010 Pin, Or Ball, Shift Inter Lock, No.1[11.1995 - 08.2000] RZN18#..5F |
33264-22010 |
US $2.18 |
||
|
33264A
|
33264A
90341-10065 Plug, Straight, No.1[11.1995 - 08.2000] RZN18#..5F L=7.5,OD=15 |
90341-10065 |
US $3.94 |
||
|
33265
|
33265
33265-22010 Pin, Shift Inter Lock, No.2[11.1995 - 08.2000] RZN18#..5F L=11.2,OD=4 |
33265-22010 |
US $1.89 |
||
|
33265
|
33265
33266-22010 Pin, Shift Inter Lock, No.2[11.1995 - 08.2000] RZN18#..5F L=13.6,OD=6 |
33266-22010 |
US $2.04 |
||
|
33265
|
33265
90250-06007 Pin, Shift Inter Lock, No.2[11.1995 - 08.2000] RZN18#..5F L=8.6,OD=6 |
90250-06007 |
from US $1.11 |
||
|
33275A
|
33275A
90501-14123 Spring, Compression (For Shift Detent Ball Low Side)[11.1995 - 08.2000] RZN18#..5F L=20.2 |
90501-14123 |
US $0.73 |
||
|
33275B
|
33275B
90360-10003 Ball(For Transmission Oil Pump Cover)[11.1995 - 08.2000] RZN18#..5F |
90360-10003 |
from US $1.19 |
||
|
33275F
|
33275F
90341-12014 Plug, W/head Straight Screw, No.1(For Cylinder Block)[11.1995 - 08.2000] RZN18#..5F |
90341-12014 |
from US $1.97 |
||
|
33276A
|
33276A
90501-14123 Spring, Compression (For Shift Detent Ball Low Side)[11.1995 - 08.2000] RZN18#..5F |
90501-14123 |
US $0.73 |
||
|
33276B
|
33276B
90360-10003 Ball(For Transmission Oil Pump Cover)[11.1995 - 08.2000] RZN18#..5F |
90360-10003 |
from US $1.19 |
||
|
33280
|
33280
33280-30041 Pin Assy, Reverse Restrict[11.1995 - 08.2000] RZN180..5F RH |
33280-30041 |
US $12.08 |
||
|
33280
|
33280
33280-30051 Pin Assy, Reverse Restrict[11.1995 - 08.2000] RZN180..5F LH |
33280-30051 |
US $20.16 |
||
|
33280A
|
33280A
90430-18008 Gasket[11.1995 - 08.2000] RZN180..5F |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33280A
|
33280A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[11.1995 - 08.2000] RZN180..5F |
90430-T0021 |
US $1.01 |
||
|
33283D
|
33283D
90341-10065 Plug, Straight, No.1[11.1995 - 08.2000] RZN180..5F |
90341-10065 |
US $3.94 |
||
|
33283F
|
33283F
33280-30061
Pin Assy, Reverse Restrict
[11.1995 - 08.2000] RZN18#..5F |
33280-30061 |
— | ||
|
33283G
|
33283G
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[11.1995 - 08.2000] RZN18#..5F |
90254-05016 |
from US $1.95 |
||
|
33521
|
33521
33521-35221 Housing, Shift LeverSHIFT LEVER [11.1995 - 08.2000] RZN180..5F |
33521-35221 |
from US $39.75 |
||
|
33521T
|
33521T
90105-08079 Bolt(For 5Th Shift Arm)[11.1995 - 08.2000] RZN18#..5F |
90105-08079 |
from US $0.82 |
||
