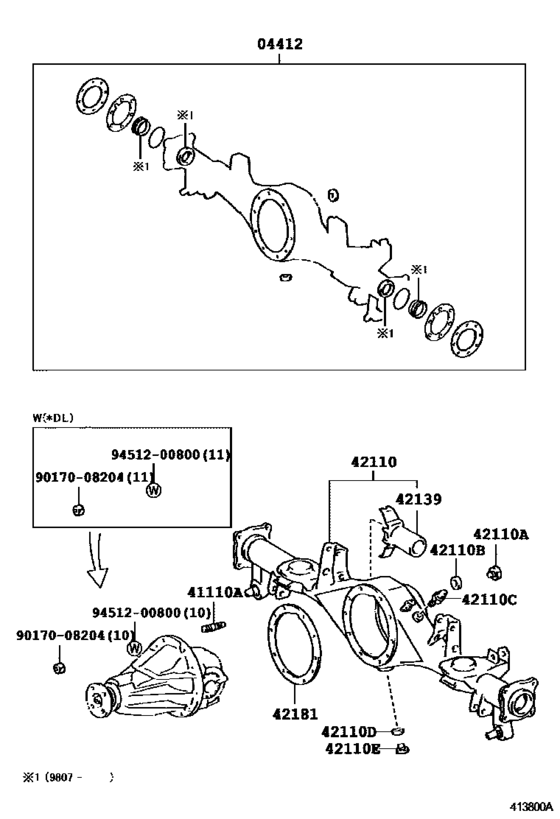

Rear Axle Housing & Differential ([11.1995 - ] (9511- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1995 - 2000
- Sales region
- U.S.A.
- Frame
- RZN180
- grade
- SR5B
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- Model
- 4RUNNER
- From
- 11.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04412
|
04412
04412-25060 Gasket Kit, Rear Differential Carrier[11.1995 - 07.1998] RZN18#,VZN18# |
04412-25060 |
US $12.06 |
||
|
04412
|
04412
04412-35120
Gasket Kit, Rear Differential Carrier
[07.1998 - 08.2000] RZN18#,VZN18# |
04412-35120 |
— | ||
|
41110A
|
41110A
90116-08233 Bolt, No.1 (For Rear Differential Carrier Set)[11.1995 -] RZN18#,VZN18# S=14 & 14,L=42 |
90116-08233 |
from US $0.96 |
||
|
41110A
|
41110A
90116-08329 Bolt, No.1 (For Rear Differential Carrier Set)[11.1995 -] RZN18#,VZN18# S=17 & 12,L=37 |
90116-08329 |
from US $1.05 |
||
|
42110
|
42110
42110-35680 Housing Assy, Rear Axle[11.1995 - 08.2000] RZN18# |
42110-35680 |
US $923.10 |
||
| replacement | |||||
|
42110
|
42110
42110-35681
Housing Assy, Rear Axle
[11.1995 - 08.2000] RZN18# |
42110-35681 |
— | ||
|
42110
|
42110
42110-35700 Housing Assy, Rear Axle[11.1995 - 07.1998] RZN18# W(ABS) |
42110-35700 |
US $923.10 |
||
| replacement | |||||
|
42110
|
42110
42110-35701 Housing Assy, Rear Axle[11.1995 - 07.1998] RZN18# W(ABS) |
42110-35701 |
US $898.06 |
||
|
42110
|
42110
42110-35710 Housing Assy, Rear AxleREAR AXLE [08.1996 - 08.2000] RZN18# W(ABS & 265/70R16 TIRE) |
42110-35710 |
US $923.10 |
||
| replacement | |||||
|
42110
|
42110
42110-35711
Housing Assy, Rear Axle
[08.1996 - 08.2000] RZN18# W(ABS & 265/70R16 TIRE) |
42110-35711 |
— | ||
|
42110A
|
42110A
90341-18006 Plug (No magnet)[11.1995 -] RZN18#,VZN18# |
90341-18006 |
from US $3.23 |
||
|
42110B
|
42110B
12157-10010 Gasket (For Drain Plug)[11.1995 -] RZN18#,VZN18# |
12157-10010 |
from US $0.74 |
||
|
42110C
|
42110C
90930-03031 Plug, Breather(For Parking Cover)[11.1995 -] RZN18#,VZN18# |
90930-03031 |
from US $6.34 |
||
|
42110D
|
42110D
12157-10010 Gasket (For Drain Plug)[11.1995 -] RZN18#,VZN18# |
12157-10010 |
from US $0.74 |
||
|
42110E
|
42110E
90341-18057 Drain Plug (with Magnet)[11.1995 -] RZN18#,VZN18# |
90341-18057 |
from US $6.27 |
||
|
42139
|
42139
42139-40010 Deflector, Rear Axle Housing Oil[11.1995 -] RZN18#,VZN18# |
42139-40010 |
US $136.86 |
||
|
42181
|
42181
42181-60020 Gasket, Rear Differential Carrier[11.1995 - 08.2000] RZN18#,VZN18# |
42181-60020 |
from US $2.73 |
||
| replacement | |||||
|
42181
|
42181
42181-0K030 Gasket, Rear Differential Carrier[11.1995 - 08.2000] RZN18#,VZN18# |
42181-0K030 |
from US $5.58 |
||
|
9017008204
|
9017008204
90170-08204 Nut (For Propeller Shaft) |
90170-08204 |
from US $0.74 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
