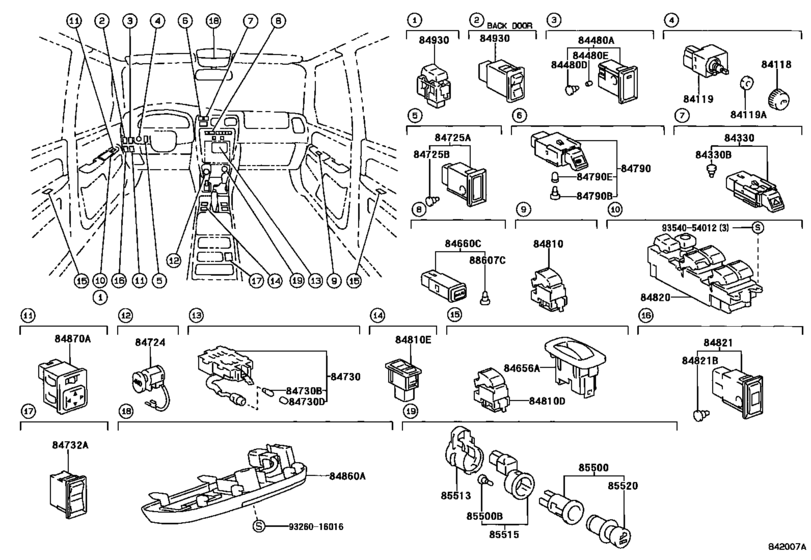

Switch & Relay & Computer ([11.1995 - 07.1998] HEADER ROOF,CLUSTER PANEL,DOOR TRIM (9511-9807)) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1995 - 2000
- Sales region
- U.S.A.
- Frame
- RZN180
- grade
- SR5B
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- Model
- 4RUNNER
- From
- 11.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84118
|
84118
84118-20011-22
Knob, Light Control Rheostat
[11.1995 -] VZN18#..LULI BLACK,TRIM4#; RZN18#,VZN18#..SR5B,SR5V BLACK,TRIM1#,4# |
84118-20011-22 |
— | ||
| replacement | |||||
|
84118
|
84118
84118-20011 Knob, Light Control Rheostat[11.1995 -] VZN18#..LULI BLACK,TRIM4#; RZN18#,VZN18#..SR5B,SR5V BLACK,TRIM1#,4# |
84118-20011 |
US $13.80 |
||
|
84119
|
84119
84119-32090
Rheostat, Light Control
[11.1995 -] RZN18#,VZN18# |
84119-32090 |
— | ||
| replacement | |||||
|
84119
|
84119
84119-03010 Rheostat, Light ControlLIGHT CONTROL [11.1995 -] RZN18#,VZN18# |
84119-03010 |
US $384.05 |
||
|
84119A
|
84119A
90170-09002 Nut, Tunnel Mode Select Switch[11.1995 -] RZN18#,VZN18# |
90170-09002 |
US $1.05 |
||
|
84330
|
84330
84332-35050
Switch Assy, Hazard Warning Signal
[11.1995 - 07.1998] RZN18#,VZN18# |
84332-35050 |
— | ||
|
84330
|
84330
84332-35080 Switch Assy, Hazard Warning Signal[07.1998 -] RZN18#,VZN18# |
84332-35080 |
US $57.51 |
||
|
84330B
|
84330B
84999-10320 Bulb, Satellite Switch[11.1995 - 07.1998] RZN18#,VZN18# 14V 0.84W |
84999-10320 |
from US $4.30 |
||
|
84330B
|
84330B
84999-10860 Bulb, Hazard Warning Signal Switch[07.1998 -] RZN18#,VZN18# 14V 0.91W |
84999-10860 |
from US $4.84 |
||
|
84656A
|
84656A
84656-32020-C0 Bezel, Switch (Black)[08.1996 -] RZN18#,VZN18#..SR5B,SR5V W(POWER WINDOW),BLACK,TRIM1#,4# |
84656-32020-C0 |
from US $19.21 |
||
|
84660C
|
84660C
84660-35010 Switch, Cooler[11.1995 - 08.1997] RZN18#,VZN18# |
84660-35010 |
from US $52.12 |
||
|
84660C
|
84660C
84660-35030 Switch, Cooler[08.1997 - 07.1998] RZN18#,VZN18# |
84660-35030 |
from US $50.66 |
||
|
84730
|
84730
84732-35030 Switch Assy, Heater BlowerHEATER BLOWER [01.1997 - 08.1997] RZN18#,VZN18# |
84732-35030 |
from US $64.14 |
||
|
84730
|
84730
84732-89113
Switch Assy, Heater Blower
[11.1995 - 01.1997] RZN18#,VZN18# |
84732-89113 |
— | ||
| replacement | |||||
|
84730
|
84730
84732-35030 Switch Assy, Heater BlowerHEATER BLOWER [11.1995 - 01.1997] RZN18#,VZN18# |
84732-35030 |
from US $64.14 |
||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[11.1995 - 08.1997] RZN18#,VZN18# 14V 1.4W |
90981-11014 |
from US $2.15 |
||
|
84730D
|
84730D
84998-10050 Cap, Satellite Switch[11.1995 - 08.1997] RZN18#,VZN18# |
84998-10050 |
US $2.33 |
||
|
84732A
|
84732A
84732-35020
Switch, Rear Heater Blower
[11.1995 -] RZN18#,VZN18# |
84732-35020 |
— | ||
|
84790
|
84790
84790-35010 Switch Assy, Rear Window Defogger[11.1995 - 07.1998] RZN18#,VZN18# |
84790-35010 |
US $145.60 |
||
|
84790B
|
84790B
84999-10850 Bulb(For Rear Window Defogger Switch)[11.1995 - 07.1998] RZN18#,VZN18# 14V 0.84W |
84999-10850 |
US $5.42 |
||
|
84790E
|
84790E
84998-10720 Cap, Bulb(For Rear Window Defogger Switch)[11.1995 - 07.1998] RZN18#,VZN18# |
84998-10720 |
US $3.14 |
||
|
84810
|
84810
84810-12080 Switch Assy, Power Window Regulator[08.1997 - 07.1998] RZN18#,VZN18# |
84810-12080 |
from US $28.70 |
||
|
84810
|
84810
84810-32070 Switch Assy, Power Window Regulator[08.1996 - 08.1997] RZN18#,VZN18# |
84810-32070 |
from US $39.48 |
||
|
84810
|
84810
84810-35040 Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [07.1998 -] RZN18#,VZN18# |
84810-35040 |
US $82.99 |
||
|
84810D
|
84810D
84810-12080 Switch Assy, Power Window Regulator[08.1997 -] RZN18#,VZN18# |
84810-12080 |
from US $28.70 |
||
|
84810D
|
84810D
84810-32070 Switch Assy, Power Window Regulator[08.1996 - 08.1997] RZN18#,VZN18# |
84810-32070 |
from US $39.48 |
||
|
84810E
|
84810E
84810-35030
Switch Assy, Back Door Power Window Regulator
[11.1995 - 07.1998] RZN18#,VZN18# |
84810-35030 |
— | ||
|
84820
|
84820
84820-33060 Master Switch Assy, Power Window Regulator[08.1996 - 08.1997] RZN18#,VZN18#..SR5B,SR5V W(POWER WINDOW) |
84820-33060 |
US $312.75 |
||
|
84820
|
84820
84820-35060
Master Switch Assy, Power Window Regulator
[07.1998 -] RZN18#,VZN18# |
84820-35060 |
— | ||
|
84820
|
84820
84820-60090 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.1997 - 07.1998] RZN18#,VZN18# |
84820-60090 |
from US $327.49 |
||
|
84821
|
84821
84821-35020 Switch, Power Window LockPOWER WINDOW LOCK [11.1995 -] RZN18#,VZN18#..SR5B,SR5V |
84821-35020 |
US $57.51 |
||
|
84821B
|
84821B
84999-10320 Bulb, Satellite Switch[11.1995 -] RZN18#,VZN18#..SR5B,SR5V |
84999-10320 |
from US $4.30 |
||
|
84870A
|
84870A
84870-16020
Switch Assy, Outer Mirror
[11.1995 - 08.2000] RZN18# W(ELECTRIC REMOTE CONTROL MIRROR) |
84870-16020 |
— | ||
| replacement | |||||
|
84870A
|
84870A
84870-22200 Switch Assy, Outer Mirror[11.1995 - 08.2000] RZN18# W(ELECTRIC REMOTE CONTROL MIRROR) |
84870-22200 |
US $86.31 |
||
|
84930
|
84930
84930-12140 Switch Assy, Door Control[11.1995 - 08.2000] RZN18# BACK DOOR |
84930-12140 |
US $61.01 |
||
|
84930
|
84930
84930-14090
Switch Assy, Door Control
[08.1997 - 07.1998] RZN18#,VZN18# W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
84930-14090 |
— | ||
| replacement | |||||
|
84930
|
84930
84930-52080 Switch Assy, Door Control[08.1997 - 07.1998] RZN18#,VZN18# W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
84930-52080 |
US $43.51 |
||
|
84930
|
84930
84930-33050
Switch Assy, Door Control
[08.1996 - 08.1997] RZN18#,VZN18#..SR5B,SR5V W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
84930-33050 |
— | ||
|
84930
|
84930
84930-33080 Switch Assy, Door ControlDOOR CONTROL [07.1998 -] RZN18#,VZN18# W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
84930-33080 |
US $53.87 |
||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[11.1995 -] RZN18#,VZN18# |
85500-12240 |
from US $27.42 |
||
|
85500B
|
85500B
84999-10250 Bulb, Key Cylinder Lamp[11.1995 -] RZN18#,VZN18# 14V 1.4W |
84999-10250 |
from US $4.37 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[11.1995 -] RZN18#,VZN18# |
85513-12020 |
from US $4.97 |
||
|
85515
|
85515
85515-32010
Stay, Cigarette Lighter Bezel
[11.1995 -] RZN18#,VZN18# |
85515-32010 |
— | ||
| replacement | |||||
|
85515
|
85515
85515-60010 Stay, Cigarette Lighter Bezel[11.1995 -] RZN18#,VZN18# |
85515-60010 |
from US $6.94 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[11.1995 - 08.2002] RZN18#,VZN18# |
85520-28010 |
from US $16.77 |
||
|
88607C
|
88607C
88607-16010 Bulb(For Cooler Switch)[11.1995 - 07.1998] RZN18#,VZN18# 14V 0.065A |
88607-16010 |
from US $2.80 |
||
|
9326016016
|
9326016016
93260-16016 New Genuine Part |
93260-16016 |
US $1.46 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.61 |
||
