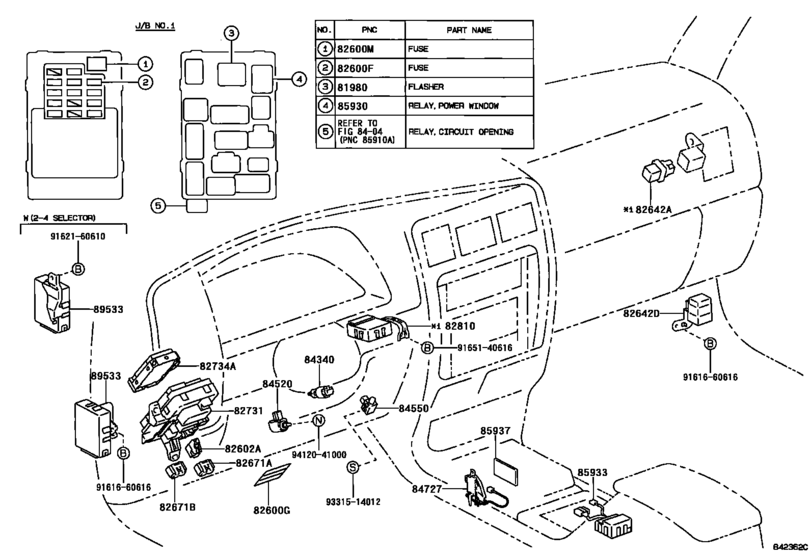

Switch & Relay & Computer ([07.1998 - ] COWL (9807- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1995 - 2000
- Sales region
- U.S.A.
- Frame
- RZN180
- grade
- SR5B
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- Model
- 4RUNNER
- From
- 11.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[11.1995 - 08.2000] RZN18#,VZN18# |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[11.1995 - 08.2000] RZN18#,VZN18# |
81980-32010 |
from US $51.79 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[11.1995 -] RZN18#,VZN18# 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[11.1995 -] RZN18#,VZN18# 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[11.1995 -] RZN18#,VZN18# 15A,MINI FUSE |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[11.1995 -] RZN18#,VZN18# 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600G
|
82600G
82683-35050 Plate, Caution(For Fuse)CAUTION(FOR FUSE) [11.1995 - 07.1998] RZN18#,VZN18# |
82683-35050 |
US $3.64 |
||
|
82600G
|
82600G
82683-35140
Plate, Caution(For Fuse)
[07.1998 - 08.2000] RZN18#,VZN18# |
82683-35140 |
— | ||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[11.1995 - 08.1996] RZN18#,VZN18# 30A |
90982-10001 |
from US $3.12 |
||
|
82602A
|
82602A
82602-35150 Block Sub-Assy, Relay[07.1998 -] RZN18#,VZN18# |
82602-35150 |
from US $12.97 |
||
|
82642A
|
82642A
90987-02006 Relay[08.1999 -] VZN185..SR5B;RZN180,VZN180 |
90987-02006 |
from US $26.75 |
||
|
82642D
|
82642D
82642-35010 Relay, Running Light No.2RUNNING LIGHT NO.2 [08.1999 -] VZN185..SR5B;RZN180,VZN180 |
82642-35010 |
US $171.81 |
||
|
82671A
|
82671A
82671-30350 Block, Junction[11.1995 - 08.1996] RZN18#,VZN18# |
82671-30350 |
US $5.68 |
||
|
82671A
|
82671A
82671-30360 Block, Junction[07.1998 - 08.2000] RZN18#,VZN18# |
82671-30360 |
US $8.04 |
||
|
82671B
|
82671B
82671-30370 Block, Junction[07.1998 - 08.2000] RZN18#,VZN18# |
82671-30370 |
US $6.26 |
||
|
82731
|
82731
82730-35250
Block, Driver Side Junction
[07.1998 - 08.2000] RZN18#,VZN18#..SR5B,SR5V |
82730-35250 |
— | ||
|
82731
|
82731
82731-35030
Block, Driver Side Junction
[11.1995 - 08.1996] RZN18#,VZN18# |
82731-35030 |
— | ||
|
82734A
|
82734A
82734-35020 Block, Center Junction[11.1995 - 08.1996] RZN18#,VZN18# |
82734-35020 |
US $42.81 |
||
|
82810
|
82810
82810-35050 Relay Assy, Running LightRUNNING LIGHT [08.1999 - 08.2000] RZN180,VZN180 |
82810-35050 |
US $171.81 |
||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[11.1995 - 07.1998] RZN18#,VZN18#..SR5B,SR5V MATSUSHITA |
84340-32050 |
from US $18.82 |
||
|
84340
|
84340
84340-32070 Switch Assy, Stop Lamp[11.1995 - 08.2000] VZN18#..LULI MATSUSHITA; RZN18#,VZN18#..SR5B,SR5V W(CRUISE CONTROL),MATSUSHITA |
84340-32070 |
US $59.55 |
||
| replacement | |||||
|
84340
|
84340
84340-20060 Switch Assy, Stop Lamp[11.1995 - 08.2000] VZN18#..LULI MATSUSHITA; RZN18#,VZN18#..SR5B,SR5V W(CRUISE CONTROL),MATSUSHITA |
84340-20060 |
from US $20.87 |
||
|
84340
|
84340
84340-35020 Switch Assy, Stop Lamp[11.1995 - 07.1998] RZN18#,VZN18#..SR5B,SR5V TOKAIRIKA |
84340-35020 |
from US $21.63 |
||
|
84340
|
84340
84340-35030 Switch Assy, Stop Lamp[11.1995 -] VZN18#..LULI TOKAIRIKA; RZN18#,VZN18#..SR5B,SR5V W(CRUISE CONTROL),TOKAIRIKA |
84340-35030 |
from US $51.48 |
||
|
84520
|
84520
84520-24010 Switch Assy, Clutch Start[11.1995 - 08.2000] RZN18#,VZN185..5F |
84520-24010 |
US $60.31 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[11.1995 -] RZN18#,VZN18# |
84550-16060 |
from US $19.32 |
||
|
85930
|
85930
90987-02012 Relay, Ignition, No.1[08.1996 -] RZN18#,VZN18# |
90987-02012 |
from US $26.54 |
||
|
9161660616
|
9161660616
91616-60616 BOLT |
91616-60616 |
US $1.61 |
||
|
9162160610
|
9162160610
91621-60610
New Genuine Part
|
91621-60610 |
— | ||
| replacement | |||||
|
9162160610
|
9162160610
91651-B0612 Bolt |
91651-B0612 |
US $2.15 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
