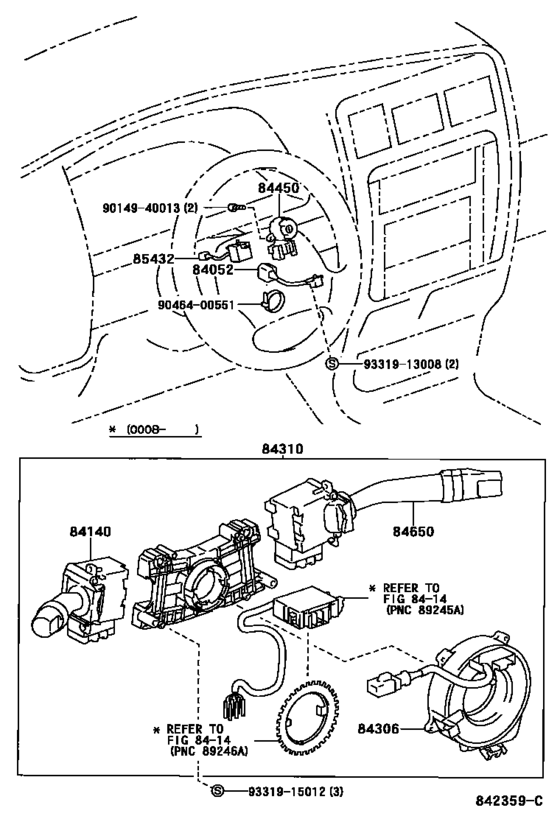

Switch & Relay & Computer ([11.1995 - ] COMBINATION SWITCH (9511- )) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1995 - 2000
- Sales region
- U.S.A.
- Frame
- RZN180
- grade
- SR5B
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- Model
- 4RUNNER
- From
- 11.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-20030 Switch Assy, Un-Lock Warning[11.1995 - 08.2000] RZN18#,VZN185..5F |
84052-20030 |
US $26.06 |
||
|
84140
|
84140
84140-10190 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.1999 -] RZN18#,VZN18#..SR5B,SR5V |
84140-10190 |
from US $53.68 |
||
|
84140
|
84140
84140-26140 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [11.1995 - 07.1998] RZN18#,VZN18# |
84140-26140 |
from US $51.71 |
||
|
84306
|
84306
84306-12070 Cable Sub-Assy, Spiral[08.1997 - 08.1999] RZN18#,VZN18# |
84306-12070 |
from US $172.54 |
||
|
84306
|
84306
84306-30120 Cable Sub-Assy, Spiral[08.1999 -] RZN18#,VZN18# |
84306-30120 |
US $274.31 |
||
|
84306
|
84306
84306-35010 Cable Sub-Assy, Spiral[11.1995 - 03.1997] RZN18#,VZN18# |
84306-35010 |
US $281.01 |
||
| replacement | |||||
|
84306
|
84306
84306-35011 Cable Sub-Assy, Spiral[11.1995 - 03.1997] RZN18#,VZN18# |
84306-35011 |
US $276.64 |
||
|
84306
|
84306
84306-35011 Cable Sub-Assy, Spiral[03.1997 - 08.1997] RZN18#,VZN18# |
84306-35011 |
US $276.64 |
||
|
84310
|
84310
84310-35650 Switch Assy, Turn SignalTURN SIGNAL [11.1995 - 08.1997] RZN18# |
84310-35650 |
US $353.81 |
||
| replacement | |||||
|
84310
|
84310
84310-35680 Switch Assy, Turn SignalTURN SIGNAL [11.1995 - 08.1997] RZN18# |
84310-35680 |
US $381.47 |
||
|
84310
|
84310
84310-35660 Switch Assy, Turn SignalTURN SIGNAL [11.1995 - 08.1997] VZN18#..SR5V; RZN18# W(REAR WIPER) |
84310-35660 |
US $374.19 |
||
| replacement | |||||
|
84310
|
84310
84310-35670 Switch Assy, Turn SignalTURN SIGNAL [11.1995 - 08.1997] VZN18#..SR5V; RZN18# W(REAR WIPER) |
84310-35670 |
US $404.77 |
||
|
84310
|
84310
84310-35670 Switch Assy, Turn SignalTURN SIGNAL [11.1995 - 08.1997] VZN18#..LULI; VZN18#..SR5V W(TILT STEERING); RZN18# W(TILT STEERING & REAR WIPER) |
84310-35670 |
US $404.77 |
||
|
84310
|
84310
84310-35680 Switch Assy, Turn SignalTURN SIGNAL [11.1995 - 08.1997] RZN18# W(TILT STEERING) |
84310-35680 |
US $381.47 |
||
|
84310
|
84310
84310-35890
Switch Assy, Turn Signal
[08.1997 - 08.1999] RZN18# |
84310-35890 |
— | ||
| replacements | |||||
|
84310
|
84310
84140-26140 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.1997 - 08.1999] RZN18# |
84140-26140 |
from US $51.71 |
||
|
84310
|
84310
84306-12070 Cable Sub-Assy, Spiral[08.1997 - 08.1999] RZN18# |
84306-12070 |
from US $172.54 |
||
|
84310
|
84310
84319-20040
Housing, Steering Wheel Switch
[08.1997 - 08.1999] RZN18# |
84319-20040 |
— | ||
|
84310
|
84310
84652-2G011
Switch Assy, Windshield Wiper
[08.1997 - 08.1999] RZN18# |
84652-2G011 |
— | ||
|
84310
|
84310
84310-3D010
Switch Assy, Turn Signal
[08.1997 - 08.1999] RZN18# W(TILT STEERING) |
84310-3D010 |
— | ||
| replacements | |||||
|
84310
|
84310
84140-26140 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.1997 - 08.1999] RZN18# W(TILT STEERING) |
84140-26140 |
from US $51.71 |
||
|
84310
|
84310
84306-12070 Cable Sub-Assy, Spiral[08.1997 - 08.1999] RZN18# W(TILT STEERING) |
84306-12070 |
from US $172.54 |
||
|
84310
|
84310
84319-20040
Housing, Steering Wheel Switch
[08.1997 - 08.1999] RZN18# W(TILT STEERING) |
84319-20040 |
— | ||
|
84310
|
84310
84652-2G011
Switch Assy, Windshield Wiper
[08.1997 - 08.1999] RZN18# W(TILT STEERING) |
84652-2G011 |
— | ||
|
84310
|
84310
84310-3D020 Switch Assy, Turn SignalTURN SIGNAL [08.1997 - 08.1999] VZN18#..SR5V W(TILT STEERING); RZN18# W(TILT STEERING & REAR WIPER) |
84310-3D020 |
US $404.77 |
||
|
84310
|
84310
84310-3D130 Switch Assy, Turn SignalTURN SIGNAL [08.1999 - 08.2000] RZN18# |
84310-3D130 |
US $356.72 |
||
|
84310
|
84310
84310-3D140 Switch Assy, Turn SignalTURN SIGNAL [08.1999 - 08.2000] RZN18# W(REAR WIPER) |
84310-3D140 |
US $371.28 |
||
|
84310
|
84310
84310-3D170
Switch Assy, Turn Signal
[08.1999 - 08.2000] VZN18#..SR5V W(TILT STEERING); RZN18# W(TILT STEERING & REAR WIPER) |
84310-3D170 |
— | ||
| replacement | |||||
|
84310
|
84310
84310-3D171
Switch Assy, Turn Signal
[08.1999 - 08.2000] VZN18#..SR5V W(TILT STEERING); RZN18# W(TILT STEERING & REAR WIPER) |
84310-3D171 |
— | ||
|
84310
|
84310
84310-42190
Switch Assy, Turn Signal
[08.1997 - 08.1999] VZN18#..SR5V; RZN18# W(REAR WIPER) |
84310-42190 |
— | ||
| replacement | |||||
|
84310
|
84310
84310-3D020 Switch Assy, Turn SignalTURN SIGNAL [08.1997 - 08.1999] VZN18#..SR5V; RZN18# W(REAR WIPER) |
84310-3D020 |
US $404.77 |
||
|
84450
|
84450
84450-41010 Switch Assy, Ignition Or Starter[11.1995 -] RZN18#,VZN18# |
84450-41010 |
US $85.28 |
||
|
84650
|
84650
84652-10660 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.1999 - 08.2000] RZN18# W(REAR WIPER) |
84652-10660 |
US $109.20 |
||
|
84650
|
84650
84652-14640
Switch Assy, Windshield Wiper
[08.1999 - 08.2000] VZN18#..LULI; VZN18#..SR5V W(TILT STEERING); RZN18# W(TILT STEERING & REAR WIPER) |
84652-14640 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-14641 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.1999 - 08.2000] VZN18#..LULI; VZN18#..SR5V W(TILT STEERING); RZN18# W(TILT STEERING & REAR WIPER) |
84652-14641 |
from US $124.08 |
||
|
84650
|
84650
84652-16600 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.1999 - 08.2000] RZN18# |
84652-16600 |
US $262.08 |
||
|
84650
|
84650
84652-2G010 Switch Assy, Windshield WiperWINDSHIELD WIPER [11.1995 - 08.1999] RZN18# W(TILT STEERING) |
84652-2G010 |
US $127.94 |
||
|
84650
|
84650
84652-35500
Switch Assy, Windshield Wiper
[11.1995 - 07.1998] RZN18# |
84652-35500 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-35550
Switch Assy, Windshield Wiper
[11.1995 - 07.1998] RZN18# |
84652-35550 |
— | ||
|
84650
|
84650
84652-35510 Switch Assy, Windshield WiperWINDSHIELD WIPER [11.1995 - 08.1999] VZN18#..SR5V; RZN18# W(REAR WIPER) |
84652-35510 |
from US $67.61 |
||
|
84650
|
84650
84652-35520
Switch Assy, Windshield Wiper
[11.1995 - 08.1999] VZN18#..LULI; VZN18#..SR5V W(TILT STEERING); RZN18# W(TILT STEERING & REAR WIPER) |
84652-35520 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-35522 Switch Assy, Windshield WiperWINDSHIELD WIPER [11.1995 - 08.1999] VZN18#..LULI; VZN18#..SR5V W(TILT STEERING); RZN18# W(TILT STEERING & REAR WIPER) |
84652-35522 |
from US $110.07 |
||
|
84650
|
84650
84652-35550
Switch Assy, Windshield Wiper
[07.1998 - 08.1999] RZN18# |
84652-35550 |
— | ||
|
9014940013
|
9014940013
90149-40013 New Genuine Part |
90149-40013 |
US $1.25 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
