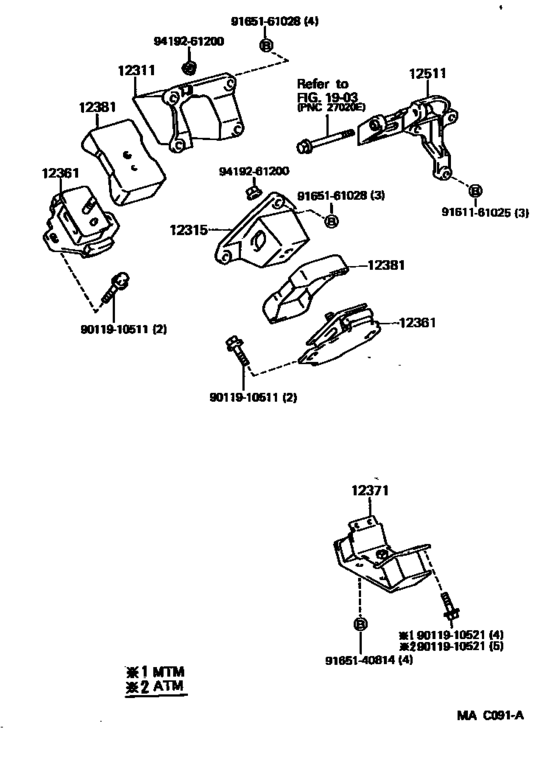

Mounting ([08.1988 - ] (8808- )3VZE..VZN120..JPP) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1989 - 1995
- Sales region
- U.S.A.
- Frame
- VZN120
- grade
- SR5
- ENGINE
- 3VZE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- USA
- CAB
- WG
- Model
- 4RUNNER
- From
- 04.1989
- To
- 11.1995
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Vehicle Model
- 4Runner
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-65020
Bracket, Engine Mounting, Front No.1 Rh
[04.1989 - 11.1995] 3VZE..VZN120 |
12311-65020 |
— | ||
|
12315
|
12315
12315-65020
Bracket, Engine Mounting, Front No.1 Lh
[04.1989 - 11.1995] 3VZE..VZN120 |
12315-65020 |
— | ||
|
12361
|
12361
12361-65010
Insulator, Engine Mounting, Front
[04.1989 - 11.1995] 3VZE..VZN120 |
12361-65010 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-65011 Insulator, Engine Mounting, Front[04.1989 - 11.1995] 3VZE..VZN120 |
12361-65011 |
from US $53.82 |
||
|
12371
|
12371
12371-65040
Insulator, Engine Mounting, Rear No.1
[08.1988 - 12.1991] 3VZE..VZN120,85,9#..ATM |
12371-65040 |
— | ||
| replacement | |||||
|
12371
|
12371
12371-65120
Insulator, Engine Mounting, Rear No.1
[08.1988 - 12.1991] 3VZE..VZN120,85,9#..ATM |
12371-65120 |
— | ||
|
12371
|
12371
12371-65120
Insulator, Engine Mounting, Rear No.1
[01.1992 - 11.1995] 3VZE..VZN120,85,9#..ATM |
12371-65120 |
— | ||
|
12381
|
12381
12381-65011 Stabilizer, Engine Mounting[08.1988 - 05.1992] 3VZE..VZN120,85,9# |
12381-65011 |
US $31.74 |
||
| replacement | |||||
|
12381
|
12381
12381-65030 Stabilizer, Engine Mounting[08.1988 - 05.1992] 3VZE..VZN120,85,9# |
12381-65030 |
from US $15.64 |
||
|
12381
|
12381
12381-65020 Stabilizer, Engine Mounting[05.1992 - 07.1992] 3VZE..VZN120,85,9# |
12381-65020 |
US $31.01 |
||
| replacement | |||||
|
12381
|
12381
12381-65030 Stabilizer, Engine Mounting[05.1992 - 07.1992] 3VZE..VZN120,85,9# |
12381-65030 |
from US $15.64 |
||
|
12381
|
12381
12381-65030 Stabilizer, Engine Mounting[07.1992 - 11.1995] 3VZE..VZN120,85,9# |
12381-65030 |
from US $15.64 |
||
|
12511
|
12511
12511-65010 Bracket, Alternator, No.1[08.1988 - 08.1992] 3VZE..VZN120,85,9# |
12511-65010 |
US $47.76 |
||
| replacement | |||||
|
12511
|
12511
12511-65011 Bracket, Alternator, No.1[08.1988 - 08.1992] 3VZE..VZN120,85,9# |
12511-65011 |
US $47.76 |
||
|
12511
|
12511
12511-65011 Bracket, Alternator, No.1[08.1992 - 11.1995] 3VZE..VZN120,85,9# |
12511-65011 |
US $47.76 |
||
|
9011910511
|
9011910511
90119-10511 Bolt, Winch R0Ller Bracket |
90119-10511 |
US $3.20 |
||
| replacement | |||||
|
9011910511
|
9011910511
91651-B1025 Bolt, Winch R0Ller Bracket |
91651-B1025 |
US $1.38 |
||
|
9011910521
|
9011910521
90119-10521
New Genuine Part
|
90119-10521 |
— | ||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165161028
|
9165161028
91651-61028 New Genuine Part |
91651-61028 |
US $1.31 |
||
|
9419261200
|
9419261200
94192-61200 New Genuine Part |
94192-61200 |
US $2.48 |
||
| replacement | |||||
|
9419261200
|
9419261200
90179-12024 NUT |
90179-12024 |
from US $1.09 |
||
