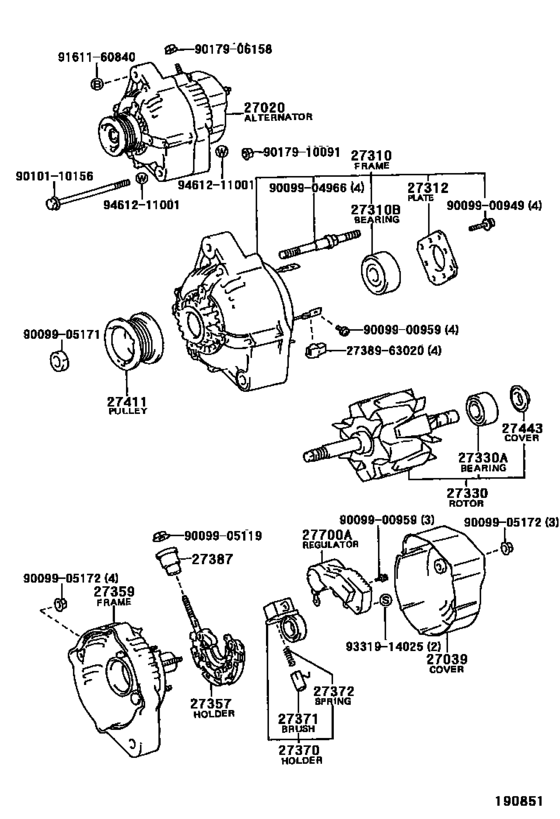

Alternator ([08.1989 - ] 12V 60A (8908- )4YE) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1989 - 1990
- Sales region
- General
- Frame
- YN130
- grade
- SR5
- ENGINE
- 4YE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- 4RUNNER
- From
- 08.1989
- To
- 08.1990
- Body
- WG
- Gear Shift Type
- 4FC
- Vehicle Model
- 4Runner
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Body
- 2D
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-72062 Alternator Assy[08.1989 - 08.1990] 4YE..YN130 12V 60A |
27060-72062 |
US $1,470.56 |
||
|
27039
|
27039
27039-72010
Cover, Alternator Rear End
[08.1989 - 08.1990] 4YE..YN130 |
27039-72010 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-15171
Cover, Alternator Rear End
[08.1989 - 08.1990] 4YE..YN130 |
27039-15171 |
— | ||
|
27310
|
27310
27310-43100
Frame Assy, Drive End, Alternator
[08.1989 - 08.1990] 4YE..YN130 |
27310-43100 |
— | ||
| replacement | |||||
|
27310
|
27310
27310-72101
Frame Assy, Drive End, Alternator
[08.1989 - 08.1990] 4YE..YN130 |
27310-72101 |
— | ||
|
27310B
|
27310B
90099-10159
Bearing(For Alternator Drive End Frame)
[08.1989 - 08.1990] 4YE..YN130 |
90099-10159 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10199 Bearing(For Alternator Drive End Frame)[08.1989 - 08.1990] 4YE..YN130 |
90099-10199 |
from US $19.39 |
||
|
27312
|
27312
27312-72100
Plate, Bearing Retainer, Alternator
[08.1989 - 08.1990] 4YE..YN130 |
27312-72100 |
— | ||
|
27330
|
27330
27330-72101
Rotor Assy, Alternator
[08.1989 - 08.1991] 3VZE,4YE..VZN130,YN130 |
27330-72101 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.1989 - 08.1990] 4YE..YN130 |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-63020 Holder, Alternator, W/rectifier[08.1989 - 08.1990] 4YE..YN130 |
27357-63020 |
US $152.01 |
||
|
27359
|
27359
27359-16011
Frame, Alternator Rectifier End
[08.1989 - 08.1990] 4YE..YN130 |
27359-16011 |
— | ||
| replacements | |||||
|
27359
|
27359
27359-16012
Frame, Alternator Rectifier End
[08.1989 - 08.1990] 4YE..YN130 |
27359-16012 |
— | ||
|
27359
|
27359
27384-16380
Washer
[08.1989 - 08.1990] 4YE..YN130 |
27384-16380 |
— | ||
|
27370
|
27370
27370-35060 Holder Assy, Alternator Brush[08.1989 - 08.1991] 3VZE,4YE..VZN130,YN130 |
27370-35060 |
from US $17.08 |
||
|
27371
|
27371
27371-63020
Brush, Alternator
[08.1989 - 05.1991] 3VZE,4YE..VZN130,YN130 |
27371-63020 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-70300 Brush, Alternator[08.1989 - 05.1991] 3VZE,4YE..VZN130,YN130 |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-72100
Spring, Alternator Brush
[08.1989 - 08.1991] 3VZE,4YE..VZN130,YN130 |
27372-72100 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[08.1989 - 08.1991] 3VZE,4YE..VZN130,YN130 |
27372-87501 |
— | ||
|
27387
|
27387
27387-70170
Insulator, Terminal
[08.1989 - 08.1990] 4YE..YN130 |
27387-70170 |
— | ||
|
27411
|
27411
27411-16211
Pulley, Alternator
[08.1989 - 08.1990] 4YE..YN130 |
27411-16211 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.1989 - 08.1990] 4YE..YN130 |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[08.1989 - 08.1990] 4YE..YN130 |
27700-70030 |
US $263.54 |
||
|
2738963020
|
2738963020
27389-63020
Insulator, Terminal
|
27389-63020 |
— | ||
|
9009900949
|
9009900949
90099-00949
New Genuine Part
|
90099-00949 |
— | ||
|
9009900959
|
9009900959
90099-00959
New Genuine Part
|
90099-00959 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9010110156
|
9010110156
90101-10156 Bolt(For Alternator) |
90101-10156 |
US $6.99 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9017910091
|
9017910091
90179-10091 Nut (For Front Lower Ball Joint Setting) |
90179-10091 |
US $2.77 |
||
| replacement | |||||
|
9017910091
|
9017910091
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
US $2.33 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.25 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $1.08 |
||
