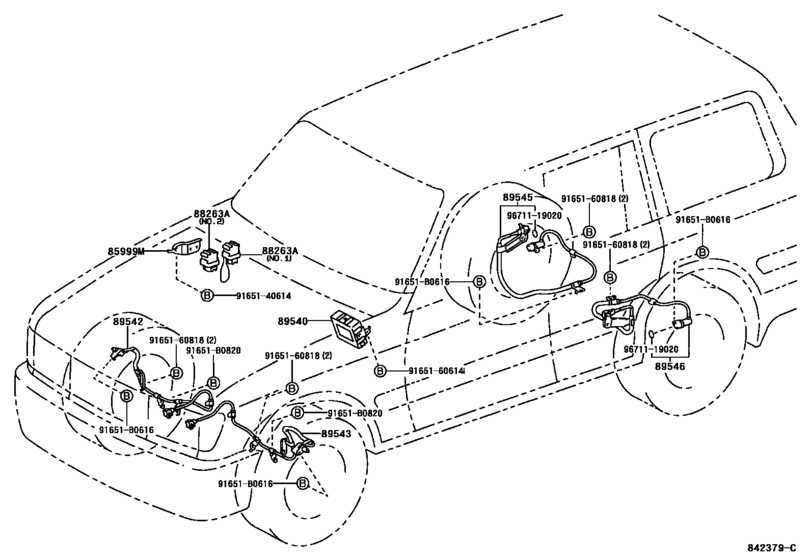

Abs & Vsc ([10.1998 - ] (9810- )LF80..GL..LHD ; (9810- )KF80..GL,G LX..PHL ; (9902- )KF80..DLX,GL.. TAIW) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- KF80
- grade
- GLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- DECK
- LUB
- CAB
- SRF
- Model
- REVO
- From
- 10.1998
- To
- 11.2002
- Gear Shift Type
- 5F
- Vehicle Model
- REVO
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85999M
|
85999M
85999-38010 Bracket, RelayRELAY [10.1998 - 03.1999] KF80..DLX..TAIW;KF80,LF80..(GL,GLX)..LHD |
85999-38010 |
US $12.08 |
||
|
88263A
|
88263A
88263-12110 Relay, Skid Control[10.1998 - 03.1999] KF80..DLX..TAIW;KF80,LF80..(GL,GLX)..LHD NO.1 |
88263-12110 |
US $36.40 |
||
|
88263A
|
88263A
88263-35070 Relay, Ignition, No.1[10.1998 - 03.1999] KF80..DLX..TAIW;KF80,LF80..(GL,GLX)..LHD NO.2 |
88263-35070 |
US $55.04 |
||
|
89540
|
89540
89540-38010 Computer Assy, Skid ControlSKID CONTROL [10.1998 - 03.1999] KF80..DLX..TAIW;KF80,LF80..(GL,GLX)..LHD |
89540-38010 |
US $809.54 |
||
|
89542
|
89542
89542-38010
Sensor, Speed, Front Rh
[10.1998 - 03.1999] KF80..DLX..TAIW;KF80,LF80..(GL,GLX)..LHD |
89542-38010 |
— | ||
|
89543
|
89543
89543-38010
Sensor, Speed, Front Lh
[10.1998 - 03.1999] KF80..DLX..TAIW;KF80,LF80..(GL,GLX)..LHD |
89543-38010 |
— | ||
|
89545
|
89545
89545-38010
Sensor, Speed, Rear Rh
[10.1998 - 03.1999] KF80..DLX..TAIW;KF80,LF80..(GL,GLX)..LHD |
89545-38010 |
— | ||
|
89546
|
89546
89546-38010
Sensor, Speed, Rear Lh
[10.1998 - 03.1999] KF80..DLX..TAIW;KF80,LF80..(GL,GLX)..LHD |
89546-38010 |
— | ||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.84 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.11 |
||
|
9671119020
|
9671119020
96711-19020 Ring, O(For Power Steering Actuator) |
96711-19020 |
US $5.38 |
||
