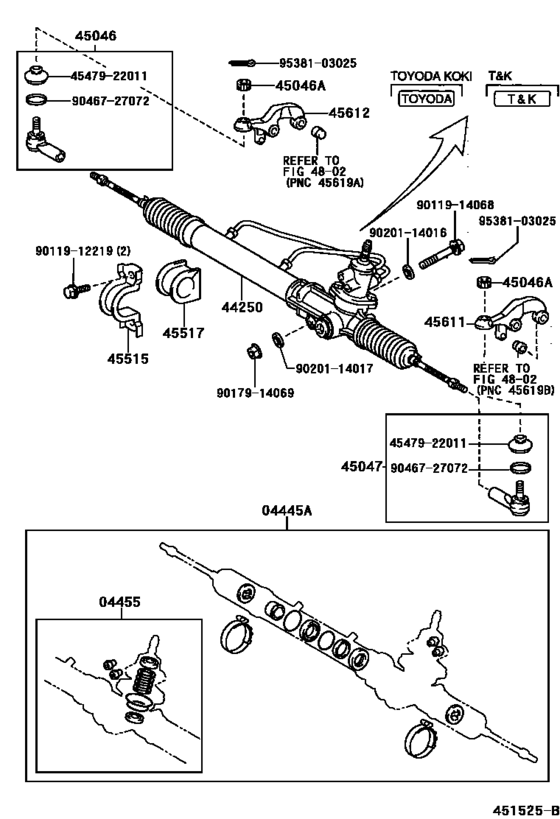

Front Steering Gear & Link ([10.1998 - ] POWER STEERING (9810- )PHL ; (9902- )KF60,80..TAIW ; (990 9- )VN ; (0004- )LF61,81,RZF6 1,81..SA..LHD) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- KF80
- grade
- GLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- DECK
- LUB
- CAB
- SRF
- Model
- REVO
- From
- 10.1998
- To
- 11.2002
- Gear Shift Type
- 5F
- Vehicle Model
- REVO
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-0B010 Gasket Kit, Power Steering Gear(For Rack & Pinion)POWER STEERING GEAR(FOR RACK & PINION) [12.1996 - 06.2003] LF60,80;KF70,80,RZF81..DLX,GL,GLX;KF80,LF85..5F..(GL,STD)..(SA,TAIW)..LHD;KF60,72, 82,LF7#,82,RZF71,84,85..(LUB,T2)..(GEN,TAIW) |
04445-0B010 |
US $113.57 |
||
|
04455
|
04455
04455-27030 Gasket Kit, Power Steering Control Valve Overhole[12.1996 - 06.2003] LF60,80;KF70,80,RZF81..DLX,GL,GLX;KF80,LF85..5F..(GL,STD)..(SA,TAIW)..LHD;KF60,72, 82,LF7#,82,RZF71,84,85..(LUB,T2)..(GEN,TAIW) |
04455-27030 |
US $36.40 |
||
| replacement | |||||
|
04455
|
04455
04455-60050 Gasket Kit, Power Steering Control Valve Overhole[12.1996 - 06.2003] LF60,80;KF70,80,RZF81..DLX,GL,GLX;KF80,LF85..5F..(GL,STD)..(SA,TAIW)..LHD;KF60,72, 82,LF7#,82,RZF71,84,85..(LUB,T2)..(GEN,TAIW) |
04455-60050 |
from US $38.79 |
||
|
44250
|
44250
44250-0B021
Gear Assy, Power Steering(For Rack & Pinion)
[10.1998 - 03.2000] KF60,80,LF80..LHD |
44250-0B021 |
— | ||
|
44250
|
44250
44250-0B090 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [03.2000 - 02.2003] KF60,80,LF80,RZF81..LHD T & K |
44250-0B090 |
US $611.19 |
||
|
45046
|
45046
45046-09090
End Sub-Assy, Tie Rod, Rh
[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,RZF71,80,81,YF60,80 |
45046-09090 |
— | ||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
90171-12028 |
from US $1.35 |
||
|
45047
|
45047
45046-09090
End Sub-Assy, Tie Rod, Rh
[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,RZF71,80,81,YF60,80 |
45046-09090 |
— | ||
|
45515
|
45515
45515-0B040
Bracket, Steering Rack Housing, No.2
[10.1998 - 11.2002] KF80,LF80,RZF81..PHL |
45515-0B040 |
— | ||
|
45517
|
45517
45517-0B040
Grommet, Steering Rack Housing, No.2
[10.1998 - 02.2003] KF60,80..LHD;LF80..(DLX,GL)..LHD W(POWER STEERING) |
45517-0B040 |
— | ||
|
45611
|
45611
45611-28040 Arm, Steering Knuckle, Rh[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,RZF71,80,81,YF60,80 |
45611-28040 |
US $71.34 |
||
|
45612
|
45612
45612-28040 Arm, Steering Knuckle, Lh[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,RZF71,80,81,YF60,80 |
45612-28040 |
US $71.34 |
||
|
4547922011
|
4547922011
45479-22011 Seal, Dust(For Tie Rod End) |
45479-22011 |
US $17.14 |
||
|
9011912219
|
9011912219
90119-12219 New Genuine Part |
90119-12219 |
US $3.49 |
||
|
9011914068
|
9011914068
90119-14068 New Genuine Part |
90119-14068 |
US $11.79 |
||
|
9017914069
|
9017914069
90179-14069 Nut |
90179-14069 |
from US $1.15 |
||
|
9020114016
|
9020114016
90201-14016 WASHER |
90201-14016 |
US $1.97 |
||
|
9020114017
|
9020114017
90201-14017 Washer(For Rear Suspension Arm) |
90201-14017 |
from US $2.94 |
||
|
9046727072
|
9046727072
90467-27072 Ring, Set(For Tie Rod End Dust Seal) |
90467-27072 |
US $2.61 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.78 |
||
