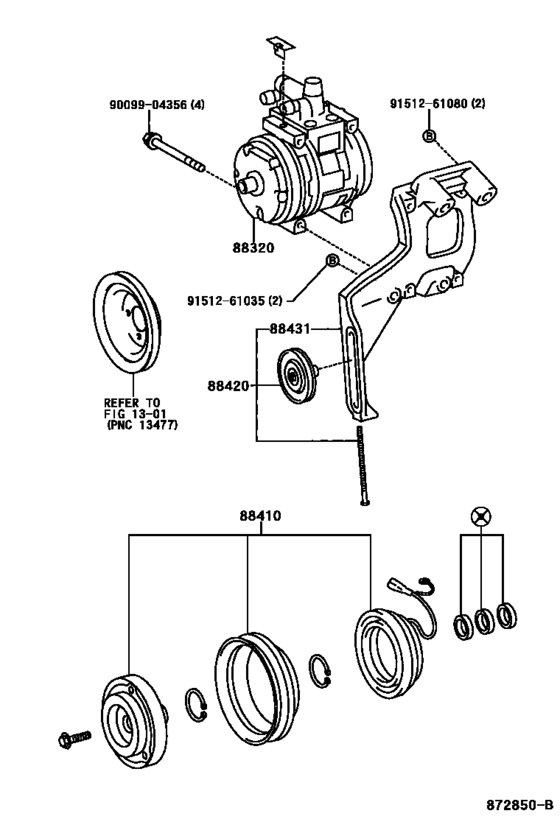

Heating & Air Conditioning - Compressor ([10.1998 - ] (9810- )KF80,LF80..GLX) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- KF80
- grade
- GLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- DECK
- LUB
- CAB
- SRF
- Model
- REVO
- From
- 10.1998
- To
- 11.2002
- Gear Shift Type
- 5F
- Vehicle Model
- REVO
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-0B030
Compressor Assy, Cooler
[10.1998 - 11.2002] KF80..GLX |
88320-0B030 |
— | ||
|
88410
|
88410
88410-0B010
Clutch Assy, Magnet
[10.1998 - 11.2002] KF80..GLX |
88410-0B010 |
— | ||
|
88420
|
88420
88420-0B100
Pulley Assy, Idle, W/bracket
[10.1998 - 11.2002] KF80..GLX |
88420-0B100 |
— | ||
|
88431
|
88431
88431-38010
Bracket, Compressor Mounting, No.1
[02.2001 - 02.2003] KF80..VN;KF80..GLX |
88431-38010 |
— | ||
|
9009904356
|
9009904356
90099-04356 BOLT |
90099-04356 |
US $2.61 |
||
| replacement | |||||
|
9009904356
|
9009904356
90099043561
Bolt
|
90099043561 |
— | ||
|
9151261035
|
9151261035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.94 |
||
| replacement | |||||
|
9151261035
|
9151261035
90080-10204 New Genuine Part |
90080-10204 |
US $2.97 |
||
|
9151261080
|
9151261080
91512-61080 Bolt |
91512-61080 |
US $4.27 |
||
