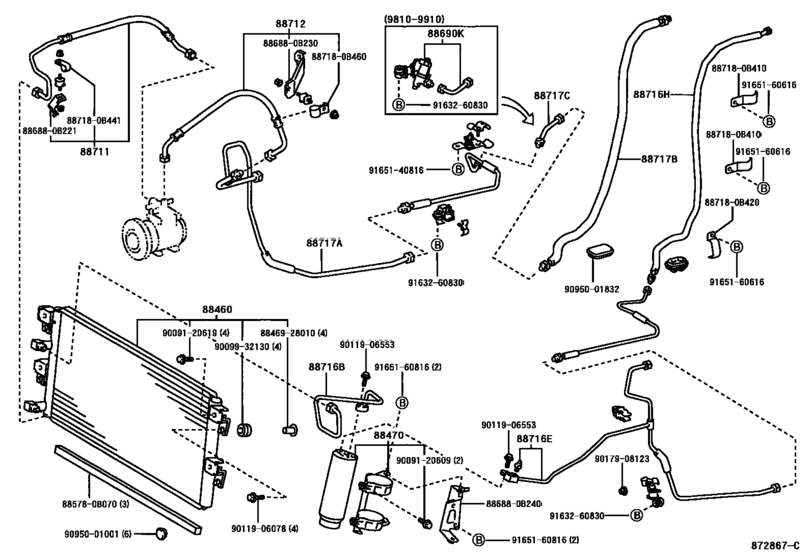

Heating & Air Conditioning - Cooler Piping ([10.1998 - 02.2001] DUAL AIR CONDITIONER (9810-0102)KF80..PHL) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- KF80
- grade
- GLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- DECK
- LUB
- CAB
- SRF
- Model
- REVO
- From
- 10.1998
- To
- 11.2002
- Gear Shift Type
- 5F
- Vehicle Model
- REVO
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-0B080
Condenser Assy, Cooler
[10.1998 - 02.2001] KF80..5F..GLX |
88460-0B080 |
— | ||
|
88460
|
88460
88460-0B081
Condenser Assy, Cooler
[02.2001 - 11.2002] KF80..5F..GLX |
88460-0B081 |
— | ||
|
88470
|
88470
88470-0B050
Receiver & Dryer Assy, Cooler
[10.1998 - 11.2002] KF80..GLX |
88470-0B050 |
— | ||
|
88690K
|
88690K
88690-0B030
Valve Assy, Magnet
[10.1998 - 10.1999] KF80..GLX |
88690-0B030 |
— | ||
| replacement | |||||
|
88690K
|
88690K
88717-0B400
Pipe, Cooler Refrigerant Suction, C
[10.1998 - 10.1999] KF80..GLX |
88717-0B400 |
— | ||
|
88711
|
88711
88703-0B100
Hose, Cooler Refrigerant Discharge, No.1
[10.1998 - 02.2001] KF80..5F..GLX |
88703-0B100 |
— | ||
|
88712
|
88712
88704-0B030
Hose, Cooler Refrigerant Suction, No.1
[10.1998 - 11.2002] KF80..GLX |
88704-0B030 |
— | ||
|
88716B
|
88716B
88716-0B460
Pipe, Cooler Refrigerant Liquid, B
[10.1998 - 02.2001] KF80..5F..GLX |
88716-0B460 |
— | ||
|
88716B
|
88716B
88716-0B461
Pipe, Cooler Refrigerant Liquid, B
[02.2001 - 11.2002] KF80..5F..GLX |
88716-0B461 |
— | ||
|
88716E
|
88716E
88716-0B480
Pipe, Cooler Refrigerant Liquid, E
[10.1998 - 11.2002] KF80..GLX |
88716-0B480 |
— | ||
|
88716H
|
88716H
88716-0B450
Pipe, Cooler Refrigerant Liquid, H
[10.1998 - 11.2002] KF80,RZF81..GLX |
88716-0B450 |
— | ||
|
88717A
|
88717A
88717-0B230
Pipe, Cooler Refrigerant Suction, A
[10.1998 - 11.2002] KF80..GLX |
88717-0B230 |
— | ||
|
88717B
|
88717B
88717-0B220
Pipe, Cooler Refrigerant Suction, B
[10.1998 - 11.2002] KF80,RZF81..GLX |
88717-0B220 |
— | ||
|
88717C
|
88717C
88717-0B400
Pipe, Cooler Refrigerant Suction, C
[10.1999 - 02.2001] KF80..GLX |
88717-0B400 |
— | ||
|
88717C
|
88717C
88717-0B440
Pipe, Cooler Refrigerant Suction, C
[02.2001 - 11.2002] KF80..GLX |
88717-0B440 |
— | ||
|
885780B070
|
885780B070
88578-0B070
Paking, Cooler Air Duct
|
88578-0B070 |
— | ||
|
886880B221
|
886880B221
88688-0B221
Bracket, Cooler Diaphragm
|
88688-0B221 |
— | ||
|
886880B230
|
886880B230
88688-0B230
Bracket, Cooler Diaphragm
|
88688-0B230 |
— | ||
|
886880B240
|
886880B240
88688-0B240
Bracket, Cooler Diaphragm
|
88688-0B240 |
— | ||
|
887180B410
|
887180B410
88718-0B410
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B410 |
— | ||
|
887180B420
|
887180B420
88718-0B420
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B420 |
— | ||
|
887180B441
|
887180B441
88718-0B441
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B441 |
— | ||
|
887180B460
|
887180B460
88718-0B460
Pipe, Cooler Refrigerant Suction, No.2
|
88718-0B460 |
— | ||
|
8846928010
|
8846928010
88469-28010
Collar, Condenser Bracket, No.1
|
88469-28010 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9009120619
|
9009120619
90091-20619 BOLT |
90091-20619 |
US $0.28 |
||
|
9009932130
|
9009932130
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
from US $1.54 |
||
|
9011906078
|
9011906078
90119-06078 New Genuine Part |
90119-06078 |
US $1.75 |
||
| replacement | |||||
|
9011906078
|
9011906078
90119-06330 Bolt |
90119-06330 |
US $1.43 |
||
|
9011906553
|
9011906553
90119-06553
New Genuine Part
|
90119-06553 |
— | ||
| replacement | |||||
|
9011906553
|
9011906553
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9095001001
|
9095001001
90950-01001 New Genuine Part |
90950-01001 |
US $4.54 |
||
|
9095001832
|
9095001832
90950-01832 Sub-Sheet, Front Door Service Hole |
90950-01832 |
from US $1.97 |
||
|
9163260830
|
9163260830
91632-60830
New Genuine Part
|
91632-60830 |
— | ||
| replacement | |||||
|
9163260830
|
9163260830
91631-G0830 BOLT WWASHER |
91631-G0830 |
US $2.87 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
