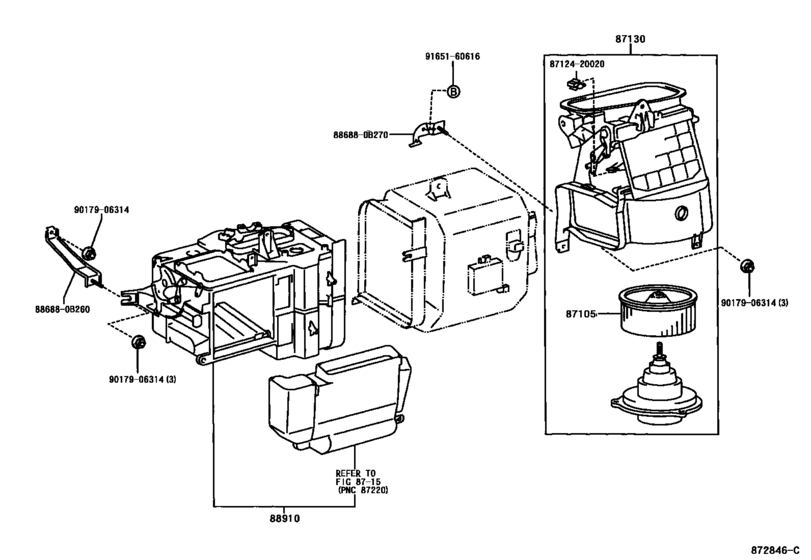

Heating & Air Conditioning - Heater Unit & Blower ([10.1998 - ] (9810- )PHL) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- KF80
- grade
- GLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- DECK
- LUB
- CAB
- SRF
- Model
- REVO
- From
- 10.1998
- To
- 11.2002
- Gear Shift Type
- 5F
- Vehicle Model
- REVO
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87105
|
87105
87105-14020 Fan Sub-Assy, Ventilation Blower[10.1998 - 06.2003] KF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD |
87105-14020 |
from US $15.38 |
||
|
87130
|
87130
87130-0B020
Blower Assy, Heater, Front
[10.1998 - 06.2003] KF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD |
87130-0B020 |
— | ||
|
88910
|
88910
88910-0B010
Ventilator Assy, Boost
[10.1998 - 11.2002] KF80,LF80,RZF81..PHL |
88910-0B010 |
— | ||
|
886880B260
|
886880B260
88688-0B260
Bracket, Cooler Diaphragm
|
88688-0B260 |
— | ||
|
886880B270
|
886880B270
88688-0B270
Bracket, Cooler Diaphragm
|
88688-0B270 |
— | ||
|
8712420020
|
8712420020
87124-20020 Clamp, Heater Control |
87124-20020 |
US $1.75 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
