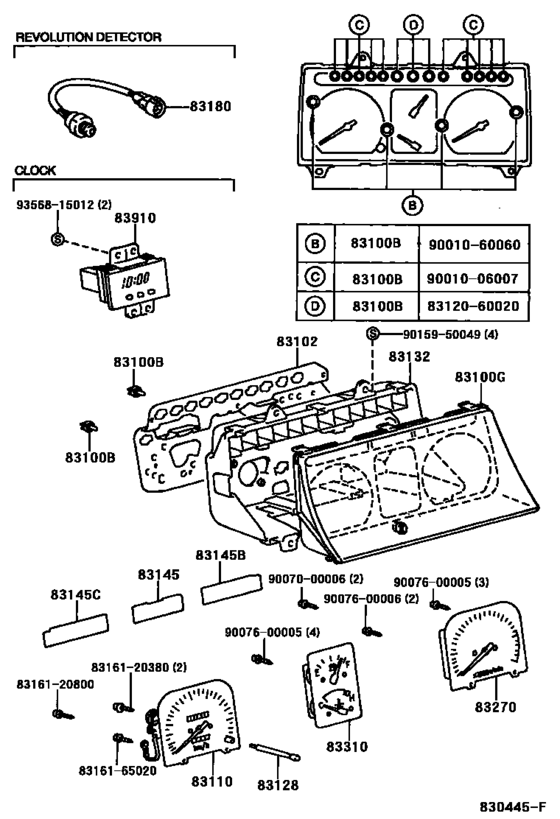

Meter ([04.1998 - 04.1999] W(TACHOMETER) (9804-9904)MA,PHL) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- KF80
- grade
- GLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- DECK
- LUB
- CAB
- SRF
- Model
- REVO
- From
- 10.1998
- To
- 11.2002
- Gear Shift Type
- 5F
- Vehicle Model
- REVO
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83120-0B010
Bulb, Combination Meter, No.1
[04.1999 - 03.2001] KF80,LF80,RZF81..MA,PHL 12V 3.4W |
83120-0B010 |
— | ||
|
83100B
|
83100B
83120-0B020
Bulb, Combination Meter, No.1
[04.1999 - 12.2002] KF80,LF80,RZF81..MA,PHL 12V 3.4W,W(GREEN CAP) |
83120-0B020 |
— | ||
|
83100B
|
83100B
83120-60020 Bulb, Combination Meter, No.1[04.1998 - 03.2001] KF80..MA;LF80..(GL,GLX)..(MA,PHL);KF80,RZF81..(GL,GLX)..PHL;KF72,82,LF72,82,RZF84, 85..GEN,TAIW 12V 1.4W,W(SOCKET) |
83120-60020 |
from US $3.63 |
||
|
83100B
|
83100B
90010-06003 Bulb, Combination Meter, No.1[04.1998 - 03.2001] LF80..(GL,GLX)..(MA,PHL);KF80..(SHRW,SRF)..(MA,TAIW);KF72,82,LF72,82,RZF84,85..GEN ,TAIW;KF80,RZF81..(SHRV,SRF)..(GL,GLX)..LHD 14V 3.0W,W(SOCKET) |
90010-06003 |
from US $1.58 |
||
|
83100B
|
83100B
90010-06006 Bulb, Combination Meter, No.1[12.1996 - 04.1999] KF60,70,80,LF60,70,80 12V 3.4W,W(GREEN CAP) |
90010-06006 |
from US $1.83 |
||
|
83100B
|
83100B
90010-06007 Bulb, Combination Meter, No.1[12.1996 - 04.1999] KF60,70,80,LF60,70,80 12V 3.4W,W(SOCKET) |
90010-06007 |
from US $1.77 |
||
|
83100G
|
83100G
83821-0B060
Glass, Combination Meter
[04.1998 - 12.2002] KF80..MA;KF80..(GL,GLX)..PHL;LF80..(GL,GLX)..(MA,PHL) |
83821-0B060 |
— | ||
|
83102
|
83102
83861-0B060
Plate Sub-Assy, Combination Meter Circuit, No.1
[04.1998 - 03.2001] KF80..MA;KF80,RZF81..(GL,GLX)..PHL |
83861-0B060 |
— | ||
|
83110
|
83110
83220-0B070
Speedometer Assy
[04.1998 - 12.2002] KF80..MA;KF80..(GL,GLX)..PHL |
83220-0B070 |
— | ||
|
83128
|
83128
83128-95J00 Knob, Trip Counter[12.1996 - 12.2002] KF80..STD..LHD;KF70,80,LF80,RZF81..(DLX,GL,GLX)..(GEN,MA,PHL,TAIW);KF60,72,82,LF7# ,82,RZF71,84,85..(LUB,T2)..(GEN,TAIW) |
83128-95J00 |
US $5.97 |
||
|
83132
|
83132
83841-0B060
Case, Combination Meter
[04.1998 - 12.2002] KF80..MA;LF80..(GL,GLX)..(MA,PHL);KF80,RZF81..(GL,GLX)..PHL |
83841-0B060 |
— | ||
|
83145
|
83145
83832-0B060
Lens, Meter, No.1
[04.1998 - 12.2002] KF80..MA;LF80..(GL,GLX)..(MA,PHL);KF80,RZF81..(GL,GLX)..PHL |
83832-0B060 |
— | ||
|
83145B
|
83145B
83833-0B060
Lens, Meter, No.3
[04.1998 - 12.2002] KF80..5F..MA;LF80..(GL,GLX)..(MA,PHL);KF80,RZF81..5F..(GL,GLX)..PHL |
83833-0B060 |
— | ||
|
83145C
|
83145C
83831-0B060
Lens, Meter, No.4
[04.1998 - 12.2002] KF80..MA;KF80,RZF81..(GL,GLX)..PHL |
83831-0B060 |
— | ||
|
83270
|
83270
83881-0B060
Tachometer Assy, Engine
[04.1998 - 12.2002] KF80..MA;KF80..(GL,GLX)..PHL |
83881-0B060 |
— | ||
|
83310
|
83310
83882-0B060
Gage Assy, Fuel Receiver
[04.1998 - 12.2002] KF80..MA;KF80..(GL,GLX)..PHL;LF80..(GL,GLX)..(MA,PHL) |
83882-0B060 |
— | ||
|
83910
|
83910
83910-0B020
Clock Assy
[04.1998 - 06.2003] KF80..DLX..MA;LF81,85,YF80..LHD;KF82,LF82..GL..RHD;KF7#,80,LF80,RZF71,81..SRF..(GL ,GLX) |
83910-0B020 |
— | ||
|
8316120380
|
8316120380
83161-20380 Case, Combination Meter Mirror, No.1 |
83161-20380 |
US $1.14 |
||
|
8316120800
|
8316120800
83161-20800 Case, Combination Meter Mirror, No.1 |
83161-20800 |
US $1.46 |
||
|
8316165020
|
8316165020
83161-65020 Case, Combination Meter Mirror, No.1 |
83161-65020 |
US $0.86 |
||
|
9007000006
|
9007000006
90070-00006
New Genuine Part
|
90070-00006 |
— | ||
|
9007600005
|
9007600005
90076-00005 New Genuine Part |
90076-00005 |
US $1.46 |
||
|
9007600006
|
9007600006
90076-00006
New Genuine Part
|
90076-00006 |
— | ||
|
9015950049
|
9015950049
90159-50049 New Genuine Part |
90159-50049 |
US $0.96 |
||
|
9356815012
|
9356815012
93568-15012
SCREW
|
93568-15012 |
— | ||
| replacement | |||||
|
9356815012
|
9356815012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
