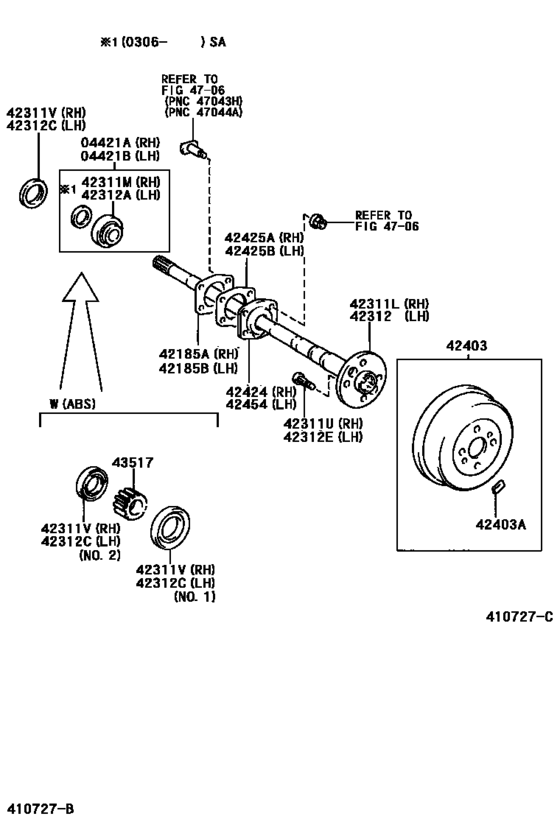

Rear Axle Shaft & Hub ([04.1998 - ] (9804- )KF60,8#,LF61,8#,RZF80,82,84,85,YF60,8 0..MA,PHL,SA,TAIW,VN ; (0010- )R ZF61,71,81) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- KF80
- grade
- GLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- DECK
- LUB
- CAB
- SRF
- Model
- REVO
- From
- 10.1998
- To
- 11.2002
- Gear Shift Type
- 5F
- Vehicle Model
- REVO
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04421A
|
04421A
04421-30080 Bearing Kit, Rear Axle Shaft[04.1998 - 05.1999] KF60,80,LF80..MA,PHL,TAIW |
04421-30080 |
US $75.71 |
||
| replacement | |||||
|
04421A
|
04421A
04421-30081 Bearing Kit, Rear Axle Shaft[04.1998 - 05.1999] KF60,80,LF80..MA,PHL,TAIW |
04421-30081 |
US $68.88 |
||
|
04421A
|
04421A
04421-30081 Bearing Kit, Rear Axle Shaft[05.1999 - 10.2002] RZF71,81;KF60,80,LF80,RZF84..MA,PHL,TAIW,VN |
04421-30081 |
US $68.88 |
||
|
04421B
|
04421B
04421-30080 Bearing Kit, Rear Axle Shaft[04.1998 - 05.1999] KF60,80,LF80..MA,PHL,TAIW |
04421-30080 |
US $75.71 |
||
| replacement | |||||
|
04421B
|
04421B
04421-30081 Bearing Kit, Rear Axle Shaft[04.1998 - 05.1999] KF60,80,LF80..MA,PHL,TAIW |
04421-30081 |
US $68.88 |
||
|
04421B
|
04421B
04421-30081 Bearing Kit, Rear Axle Shaft[05.1999 - 10.2002] RZF71,81;KF60,80,LF80,RZF84..MA,PHL,TAIW,VN |
04421-30081 |
US $68.88 |
||
|
42185A
|
42185A
42185-28030 Gasket, Rear Axle Housing End[04.1998 - 06.2003] RZF71,81;KF60,80,LF61,80,81,85,RZF80,84,85,YF60,80..MA,PHL,SA,TAIW,VN |
42185-28030 |
US $4.48 |
||
|
42185B
|
42185B
42185-28030 Gasket, Rear Axle Housing End[04.1998 - 06.2003] RZF71,81;KF60,80,LF61,80,81,85,RZF80,84,85,YF60,80..MA,PHL,SA,TAIW,VN |
42185-28030 |
US $4.48 |
||
|
42311L
|
42311L
42311-38020 Shaft, Rear Axle, RhREAR AXLE, RH [10.1998 - 02.2003] KF60,80,LF80..LHD |
42311-38020 |
US $286.83 |
||
|
42311U
|
42311U
90942-02047 Bolt, Hub[10.1998 - 06.2003] KF60,80,LF80,85,RZF81,84,85..PHL,SA,TAIW,VN |
90942-02047 |
from US $3.49 |
||
|
42311V
|
42311V
90311-52059 Seal, Oil (For Rear Axle Shaft)[12.1996 - 06.2003] KF80..(DLX,STD)..TAIW;KF80,LF80,RZF81,85..GEN,MA,PHL,SA,VN;KF60,7#,82,LF6#,7#,81,8 2,85,RZF71,80,84,YF60,80..GEN,SA,TAIW |
90311-52059 |
from US $5.73 |
||
| replacement | |||||
|
42311V
|
42311V
90310-52001 Seal, Oil (For Rear Axle Shaft)[12.1996 - 06.2003] KF80..(DLX,STD)..TAIW;KF80,LF80,RZF81,85..GEN,MA,PHL,SA,VN;KF60,7#,82,LF6#,7#,81,8 2,85,RZF71,80,84,YF60,80..GEN,SA,TAIW |
90310-52001 |
from US $7.02 |
||
|
42312
|
42312
42311-38020 Shaft, Rear Axle, RhREAR AXLE, RH [10.1998 - 02.2003] KF60,80,LF80..LHD |
42311-38020 |
US $286.83 |
||
|
42312C
|
42312C
90311-52059 Seal, Oil (For Rear Axle Shaft)[12.1996 - 06.2003] KF80..(DLX,STD)..TAIW;KF80,LF80,RZF81,85..GEN,MA,PHL,SA,VN;KF60,7#,82,LF6#,7#,81,8 2,85,RZF71,80,84,YF60,80..GEN,SA,TAIW |
90311-52059 |
from US $5.73 |
||
| replacement | |||||
|
42312C
|
42312C
90310-52001 Seal, Oil (For Rear Axle Shaft)[12.1996 - 06.2003] KF80..(DLX,STD)..TAIW;KF80,LF80,RZF81,85..GEN,MA,PHL,SA,VN;KF60,7#,82,LF6#,7#,81,8 2,85,RZF71,80,84,YF60,80..GEN,SA,TAIW |
90310-52001 |
from US $7.02 |
||
|
42312E
|
42312E
90942-02047 Bolt, Hub[10.1998 - 06.2003] KF60,80,LF80,85,RZF81,84,85..PHL,SA,TAIW,VN |
90942-02047 |
from US $3.49 |
||
|
42403
|
42403
42431-28040 Drum Sub-Assy, Rear Brake[10.1998 - 11.2002] KF80,LF80,RZF81..PHL |
42431-28040 |
US $161.84 |
||
|
42403A
|
42403A
90937-01287 Piece, Balance (For Rear Brake Drum)[10.1998 - 11.2002] KF80,LF80,RZF81..PHL 10G |
90937-01287 |
US $2.48 |
||
|
42403A
|
42403A
90937-01288 Piece, Balance (For Rear Brake Drum)[10.1998 - 11.2002] KF80,LF80,RZF81..PHL 20G |
90937-01288 |
US $3.20 |
||
|
42403A
|
42403A
90937-01289 Piece, Balance (For Rear Brake Drum)[10.1998 - 11.2002] KF80,LF80,RZF81..PHL 30G |
90937-01289 |
US $4.22 |
||
|
42424
|
42424
42424-30040 Retainer, Rear Axle Bearing, Outer, Rh[04.1998 - 06.2003] RZF71,81;KF60,80,LF61,80,81,85,RZF80,84,85,YF60,80..MA,PHL,SA,TAIW,VN |
42424-30040 |
from US $11.11 |
||
|
42425A
|
42425A
42425-30031 Gasket, Rear Axle Bearing Retainer[04.1998 - 06.2003] RZF71,81;KF60,80,LF61,80,81,85,RZF80,84,85,YF60,80..MA,PHL,SA,TAIW,VN |
42425-30031 |
from US $0.84 |
||
|
42425B
|
42425B
42425-30031 Gasket, Rear Axle Bearing Retainer[04.1998 - 06.2003] RZF71,81;KF60,80,LF61,80,81,85,RZF80,84,85,YF60,80..MA,PHL,SA,TAIW,VN |
42425-30031 |
from US $0.84 |
||
|
42454
|
42454
42424-30040 Retainer, Rear Axle Bearing, Outer, Rh[04.1998 - 06.2003] RZF71,81;KF60,80,LF61,80,81,85,RZF80,84,85,YF60,80..MA,PHL,SA,TAIW,VN |
42424-30040 |
from US $11.11 |
||
