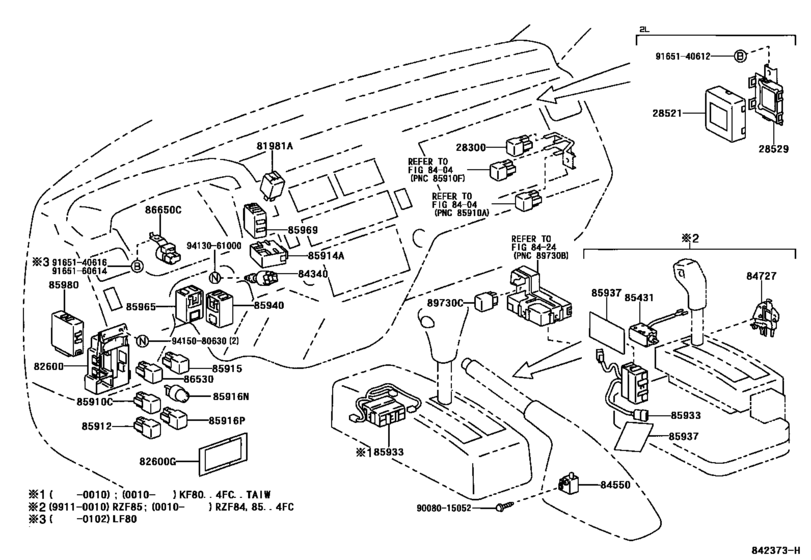

Switch & Relay & Computer ([10.1998 - ] COWL (9810- )KF60,8#,LF80,RZF61,81,82,84,85..LHD) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- KF80
- grade
- GLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- DECK
- LUB
- CAB
- SRF
- Model
- REVO
- From
- 10.1998
- To
- 11.2002
- Gear Shift Type
- 5F
- Vehicle Model
- REVO
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-06010
Relay Assy, Starter
[04.1998 - 02.2003] 7KE..KF82..RHD;7KE,1RZE,2RZE..KF60,72,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN |
28300-06010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-10020 Relay Assy, Starter[04.1998 - 02.2003] 7KE..KF82..RHD;7KE,1RZE,2RZE..KF60,72,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN |
28300-10020 |
from US $53.76 |
||
|
81981A
|
81981A
81981-02010
Flasher Assy, Turn Signal
[01.1998 - 02.2003] KF82,LF82..RHD;KF60,7#,80,LF60,7#,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN |
81981-02010 |
— | ||
|
82600
|
82600
82600-0B020
Block Assy, Fuse
[04.1998 - 08.2002] KF80,LF80..MA,PHL,TAIW,VN;KF60,72,82,RZF71,81,84,85..(LUB,T2)..(GEN,PHL,TAIW) |
82600-0B020 |
— | ||
|
82600G
|
82600G
82685-38020 Plate, Caution(For Fuse)CAUTION(FOR FUSE) [10.1998 - 02.2003] KF80,RZF81..PHL,VN |
82685-38020 |
US $3.79 |
||
|
84340
|
84340
84340-04010
Switch Assy, Stop Lamp
[05.1999 - 03.2001] KF60,7#,8#,LF60,7#,80,82,RZF71,81..GEN,MA,PHL THAILAND MATSUSHITA |
84340-04010 |
— | ||
|
84340
|
84340
84340-20050
Switch Assy, Stop Lamp
[02.2001 - 03.2001] KF60,7#,8#,LF60,72,80,82,RZF71,81..GEN,PHL TOKAIRIKA |
84340-20050 |
— | ||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[08.1998 - 02.2001] KF60,70,80,LF60,80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX) MATSUSHITA |
84340-32050 |
from US $18.82 |
||
|
84340
|
84340
84340-YE010
Switch Assy, Stop Lamp
[08.1998 - 05.1999] KF60,70,80,LF60,70,80..GEN,MA,PHL THAILAND MATSUSHITA |
84340-YE010 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-04010
Switch Assy, Stop Lamp
[08.1998 - 05.1999] KF60,70,80,LF60,70,80..GEN,MA,PHL THAILAND MATSUSHITA |
84340-04010 |
— | ||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
84550-16060 |
from US $19.32 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[10.1998 - 12.2002] KF60,80,LF61,80,81,85,RZF80,81,84,85,YF60,80..PHL,SA,TAIW,VN |
90987-04002 |
from US $24.32 |
||
|
85912
|
85912
90080-87008
Relay Assy, Circuit Opening (For Efi)
[02.2001 - 03.2001] KF80,LF80,RZF81..GLX |
90080-87008 |
— | ||
|
85915
|
85915
90080-87008
Relay Assy, Circuit Opening (For Efi)
[04.1998 - 02.2003] KF80..GL..VN;KF80,LF80..GLX;RZF81,84,85..LHD;KF80,LF80..(DLX,GL)..(MA,TAIW) |
90080-87008 |
— | ||
|
85916N
|
85916N
90987-02004 Relay Assy, Starter[04.1998 - 03.2001] KF60,80,LF80,RZF81,84,85..MA,PHL,TAIW,VN |
90987-02004 |
from US $28.10 |
||
| replacement | |||||
|
85916N
|
85916N
909870200483 [04.1998 - 03.2001] KF60,80,LF80,RZF81,84,85..MA,PHL,TAIW,VN |
909870200483 |
US $53.75 |
||
|
85916P
|
85916P
90987-02006 Relay[12.1996 - 03.2001] KF70,80..4F;KF80..STD..LHD;KF60,LF60,80,RZF84..4F,4FC;KF60,LF70,RZF81..(LUB,T2)..( DLX,GLX,STD);KF70,80,LF80,RZF85..(DLX,GL,GLX)..(GEN,MA,PHL,TAIW,VN) |
90987-02006 |
from US $26.75 |
||
|
85940
|
85940
85940-26020 Relay Assy, Rear Wiper[10.1998 - 02.2003] KF80,LF80,RZF81..GLX;KF80,RZF84,85..(DLX,GL)..(TAIW,VN) |
85940-26020 |
US $152.88 |
||
| replacement | |||||
|
85940
|
85940
85940-28040 Relay Assy, Rear Wiper[10.1998 - 02.2003] KF80,LF80,RZF81..GLX;KF80,RZF84,85..(DLX,GL)..(TAIW,VN) |
85940-28040 |
US $151.42 |
||
|
85980
|
85980
85980-95702 Relay Assy, Door Control[01.1998 - 08.2002] KF80..GL..VN;LF80..GL..RHD;KF80,LF80..GLX;LF85,RZF81,84,85;LF81,RZF71,80,YF80..RHD ;KF80..(DLX,GL)..(MA,TAIW) |
85980-95702 |
US $244.61 |
||
|
86530
|
86530
90080-87008
Relay Assy, Circuit Opening (For Efi)
[10.1998 - 09.2000] RZF85..LHD;KF80,LF80..5F..GLX;KF80..4FC..(GL,GLX)..LHD |
90080-87008 |
— | ||
|
9008015052
|
9008015052
90080-15052 New Genuine Part |
90080-15052 |
US $0.73 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
|
9415080630
|
9415080630
94150-80630 New Genuine Part |
94150-80630 |
US $1.08 |
||
