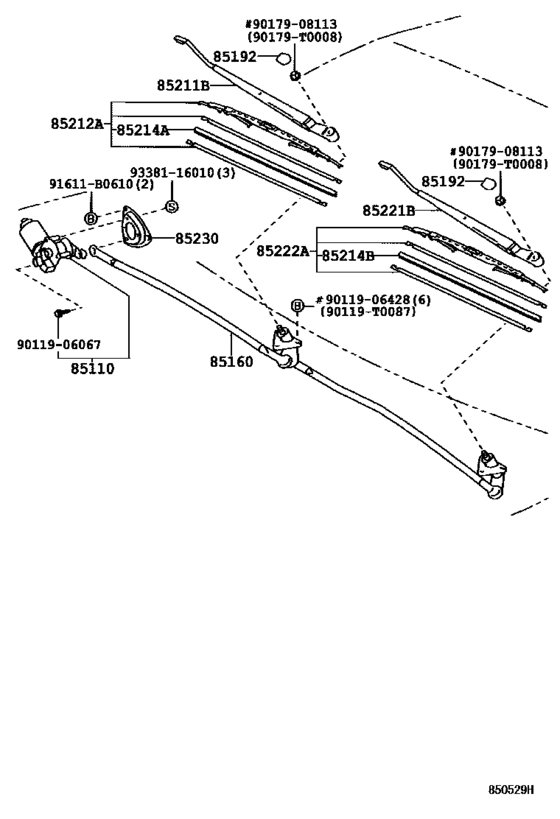

Windshield Wiper ([10.1998 - 06.2003] (9810-0306)LHD) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- KF80
- grade
- GLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- DECK
- LUB
- CAB
- SRF
- Model
- REVO
- From
- 10.1998
- To
- 11.2002
- Gear Shift Type
- 5F
- Vehicle Model
- REVO
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-38020
Motor Assy, Windshield Wiper
[10.1998 - 06.2003] KF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD |
85110-38020 |
— | ||
|
85160
|
85160
85150-38010
Link Assy, Windshield Wiper
[10.1998 - 06.2003] KF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD |
85150-38010 |
— | ||
|
85192
|
85192
85292-16010 Cover, Windshield Wiper Arm[12.1996 - 06.2003] KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80 |
85292-16010 |
US $7.35 |
||
|
85211B
|
85211B
85211-0B020
Arm, Front Wiper, Rh
[10.1998 - 06.2003] KF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD |
85211-0B020 |
— | ||
|
85212A
|
85212A
85212-0B010 Blade, Fr Wiper, RhFR WIPER, RH [10.1998 - 06.2003] KF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD |
85212-0B010 |
US $28.83 |
||
|
85214A
|
85214A
85214-0A010
Rubber, Wiper, Rh
[12.1996 - 06.2003] LF81,85,YF60,80..LHD;KF82,LF82,RZF85..GEN,TAIW;KF60,7#,80,LF6#,7#,80,RZF71,81,84 |
85214-0A010 |
— | ||
|
85214B
|
85214B
85214-0A010
Rubber, Wiper, Rh
[12.1996 - 06.2003] LF81,85,YF60,80..LHD;KF82,LF82,RZF85..GEN,TAIW;KF60,7#,80,LF6#,7#,80,RZF71,81,84 |
85214-0A010 |
— | ||
|
85221B
|
85221B
85221-0B020
Arm, Front Wiper, Lh
[10.1998 - 06.2003] KF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD |
85221-0B020 |
— | ||
|
85222A
|
85222A
85222-0B010 Blade, Fr Wiper, LhFR WIPER, LH [10.1998 - 06.2003] KF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD |
85222-0B010 |
US $28.83 |
||
|
85230
|
85230
85230-0B010
Bracket Assy, Windshield Wiper
[12.1996 - 06.2003] LF81,85,YF60,80..LHD;KF82,LF82,RZF85..GEN,TAIW;KF60,7#,80,LF6#,7#,80,RZF71,81,84 |
85230-0B010 |
— | ||
|
90119T0087
|
90119T0087
90119-T0087
New Genuine Part
|
90119-T0087 |
— | ||
|
90179T0008
|
90179T0008
90179-T0008
Nut (For Front Wiper Arm Setting)
|
90179-T0008 |
— | ||
|
91611B0610
|
91611B0610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.97 |
||
|
9011906428
|
9011906428
90119-06428 New Genuine Part |
90119-06428 |
US $1.43 |
||
|
9017908113
|
9017908113
90179-08113 Nut (For Front Wiper Arm Setting) |
90179-08113 |
from US $0.98 |
||
|
9338116010
|
9338116010
93381-16010 New Genuine Part |
93381-16010 |
US $1.38 |
