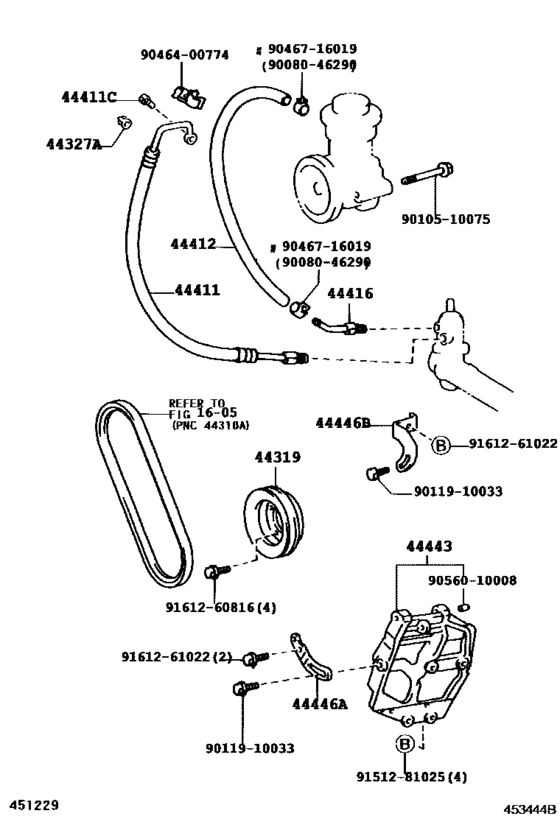

Power Steering Tube ([04.1998 - ] (9804- )KF80..MA) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- MA
- DECK
- LUB
- CAB
- SRF
- Model
- UNSER
- From
- 04.1998
- To
- 03.2001
- Gear Shift Type
- 5F
- Vehicle Model
- UNSER
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44319
|
44319
44319-27020 Pulley, Crankshaft, No.2[12.1996 - 02.2003] KF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW) |
44319-27020 |
US $29.88 |
||
|
44327A
|
44327A
44327-26020 Gasket, Pressure Port, No.1[04.1998 - 06.2003] RZF81;KF80..MA,PHL,TAIW,VN;KF60,72,82,RZF71,80,84,85..(LUB,T2)..(GEN,SA,TAIW) |
44327-26020 |
US $4.66 |
||
|
44411
|
44411
44411-0B050
Hose, Pressure Feed
[10.1998 - 12.2002] KF80..MA;KF72,82..RHD |
44411-0B050 |
— | ||
|
44411
|
44411
44411-38071 Hose, Pressure FeedPRESSURE FEED [04.1998 - 10.1998] KF80..MA |
44411-38071 |
from US $210.13 |
||
|
44411C
|
44411C
90401-16014 Bolt, Union(For Pressure Feed Tube)[04.1998 - 02.2003] KF80..MA,PHL,TAIW,VN;KF60,72,82..(LUB,T2)..(GEN,TAIW) |
90401-16014 |
from US $12.01 |
||
|
44412
|
44412
44412-38130 Hose, ReturnRETURN [12.1996 - 12.2002] KF7#,8#..(DLX,GL)..RHD |
44412-38130 |
US $33.49 |
||
|
44416
|
44416
44416-0B020
Tube, Return(For Steering Gear Outlet)
[10.1998 - 12.2002] KF7#,8#..(DLX,GL)..RHD |
44416-0B020 |
— | ||
|
44416
|
44416
44416-38060 Tube, Return(For Steering Gear Outlet)RETURN(FOR STEERING GEAR OUTLET) [12.1996 - 10.1998] KF70,80..DLX,GL |
44416-38060 |
US $14.41 |
||
|
44443
|
44443
44443-38030 Bracket, PumpPUMP [12.1996 - 02.2003] KF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW) |
44443-38030 |
US $138.32 |
||
|
44446A
|
44446A
44446-38010 Strut, Adjusting No.1ADJUSTING NO.1 [12.1996 - 02.2003] KF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW) |
44446-38010 |
US $17.33 |
||
|
44446B
|
44446B
44446-38020 Strut, Adjusting No.2ADJUSTING NO.2 [12.1996 - 02.2003] KF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW) |
44446-38020 |
US $11.36 |
||
|
9008046290
|
9008046290
90080-46290 New Genuine Part |
90080-46290 |
US $4.95 |
||
|
9010510075
|
9010510075
90105-10075 Bolt(For Alternator) |
90105-10075 |
from US $1.48 |
||
|
9011910033
|
9011910033
90119-10033 Bolt, No.1 (For Center Support Bearing) |
90119-10033 |
US $3.35 |
||
| replacement | |||||
|
9011910033
|
9011910033
90119-10427 Bolt, No.1 (For Center Support Bearing) |
90119-10427 |
US $4.12 |
||
|
9046400774
|
9046400774
90464-00774 CLAMP |
90464-00774 |
US $3.35 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.40 |
||
|
9056010008
|
9056010008
90560-10008 New Genuine Part |
90560-10008 |
US $7.86 |
||
|
9151281025
|
9151281025
91512-81025 Bolt(For Torque Arm Setting) |
91512-81025 |
from US $1.13 |
||
|
9161260816
|
9161260816
91612-60816
Bolt, Exhaust Valve Cover
|
91612-60816 |
— | ||
| replacement | |||||
|
9161260816
|
9161260816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161261022
|
9161261022
91612-61022 Bolt (For Transmission Control Cable Bracket) |
91612-61022 |
US $2.33 |
||
