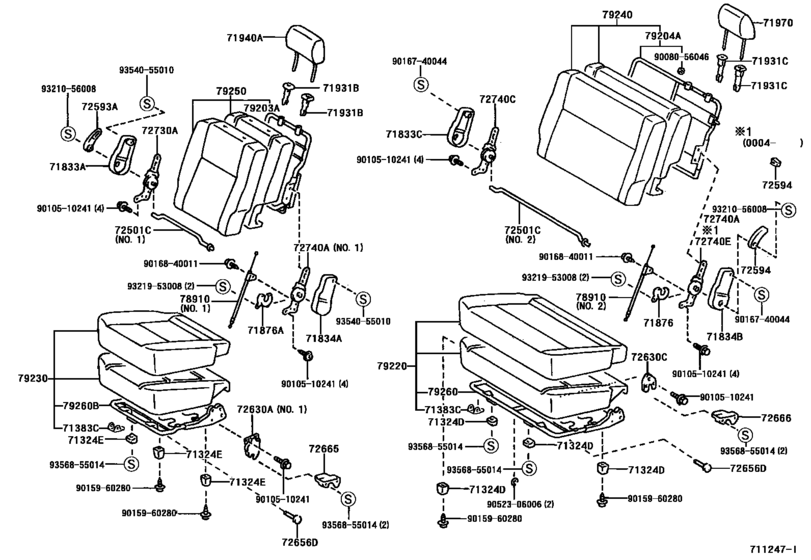

Seat & Seat Track ([10.1998 - 12.2002] (9810-0211)GL..PHL ; (9810-0212)KF8#,LF8#,RZF80, 85,YF80..RHD ; (0212- )KF8#,LF8# ,RZF80,85,YF80..G EN,SA..RHD) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- KF80
- grade
- DLX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DESTINATION
- MA
- DECK
- LUB
- CAB
- SRF
- Model
- UNSER
- From
- 04.1998
- To
- 03.2001
- Gear Shift Type
- 5F
- Vehicle Model
- UNSER
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71324D
|
71324D
71324-0B010-B0
Cushion, Rear Seat, Rh
[12.1996 - 12.2002] KF70,80,LF80..4F;KF70,80,LF70,80..(DLX,GL)..CBU..RHD BLUISH GRAY,TRIM1#,FRONT |
71324-0B010-B0 |
— | ||
|
71324D
|
71324D
71324-0B030-B0
Cushion, Rear Seat, Rh
[12.1996 - 03.2001] KF70,80,LF80..4F;KF70,80,LF70,80..(DLX,GL)..CBU..RHD BLUISH GRAY,TRIM1#,REAR |
71324-0B030-B0 |
— | ||
|
71324E
|
71324E
71324-0B010-B0
Cushion, Rear Seat, Rh
[12.1996 - 12.2002] KF70,80,LF80..4F;KF70,80,LF70,80..(DLX,GL)..CBU..RHD BLUISH GRAY,TRIM1#,FRONT |
71324-0B010-B0 |
— | ||
|
71324E
|
71324E
71324-0B030-B0
Cushion, Rear Seat, Rh
[12.1996 - 03.2001] KF70,80,LF80..4F;KF70,80,LF70,80..(DLX,GL)..CBU..RHD BLUISH GRAY,TRIM1#,REAR |
71324-0B030-B0 |
— | ||
|
71833C
|
71833C
71801-0B020-B0
Cover, Rear Seat Reclining, No.1 Rh
[12.1996 - 08.2002] KF7#,8#,LF7#,80,82,RZF71,81,84,85..CBU..(GEN,MA,PHL,TAIW,VN) BLUISH GRAY,TRIM1# |
71801-0B020-B0 |
— | ||
|
71834A
|
71834A
71802-0B020-B0
Cover, Rear Seat Reclining, No.2 Rh
[12.1996 - 08.2001] KF7#,8#,LF7#,80,82,RZF71,81,84,85..CBU..(GEN,MA,PHL,TAIW,VN) BLUISH GRAY,TRIM1# |
71802-0B020-B0 |
— | ||
|
72593A
|
72593A
72593-26010-B0 Knob, Reclining Remote Control Lever[12.1996 - 04.2000] KF7#,8#,LF7#,8#..SRF..(DLX,STD)..CBU BLUISH GRAY,TRIM1# |
72593-26010-B0 |
US $10.48 |
||
|
72594
|
72594
72593-26010-B0 Knob, Reclining Remote Control Lever[12.1996 - 04.2000] KF7#,8#,LF7#,8#..(DLX,STD)..CBU..RHD BLUISH GRAY,TRIM1# |
72593-26010-B0 |
US $10.48 |
||
|
72630C
|
72630C
72630-95705 Lock Assy, Rear No.1 SeatREAR NO.1 SEAT [04.1998 - 04.2000] KF80,LF80..(DLX,GL)..(MA,PHL) |
72630-95705 |
US $88.82 |
||
|
72665
|
72665
72665-0B030-B0
Cover, Rear Seat Back Lock, Rh
[04.1998 - 08.2002] KF80,LF80..MA;KF72,82,LF72,82,RZF71,81..CBU..RHD BLUISH GRAY,TRIM1# |
72665-0B030-B0 |
— | ||
|
72666
|
72666
72666-0B030-B0
Cover, Rear Seat Back Lock, Lh
[04.1998 - 08.2002] KF80,LF80..MA;KF70,80,LF80..5F..STD..RHD;KF72,82,LF72,82,RZF71,81..CBU..RHD BLUISH GRAY,TRIM1# |
72666-0B030-B0 |
— | ||
|
78910
|
78910
78910-0B020
Cable Assy, Fold Seat Lock Control, No.1
[04.1998 - 08.2002] KF80..DLX..MA;KF72,82,LF72,82..DLX..CBU |
78910-0B020 |
— | ||
|
79203A
|
79203A
79203-0B010
Frame Sub-Assy, No.2 Seat Back, Rh
[12.1996 - 08.2002] KF7#,8#,LF7#,80,82..(DLX,STD)..CBU..RHD |
79203-0B010 |
— | ||
|
79204A
|
79204A
79103-0B010
Frame Sub-Assy, No.2 Seat Back, Lh
[12.1996 - 08.2002] KF7#,8#,LF7#,80,82..(DLX,STD)..CBU..RHD |
79103-0B010 |
— | ||
|
79220
|
79220
79220-0B040-B1
Cushion Assy, No.2 Seat, Rh
[04.1998 - 03.2001] KF80..DLX..MA BLUISH GRAY,TRIM1# |
79220-0B040-B1 |
— | ||
|
79230
|
79230
79120-0B040-B1
Cushion Assy, No.2 Seat, Lh
[04.1998 - 03.2001] KF80..DLX..MA BLUISH GRAY,TRIM1# |
79120-0B040-B1 |
— | ||
|
79240
|
79240
79240-0B040-B1
Back Assy, No.2 Seat, Rh
[04.1998 - 03.2001] KF80..DLX..MA BLUISH GRAY,TRIM1# |
79240-0B040-B1 |
— | ||
|
79250
|
79250
79140-0B040-B1
Back Assy, No.2 Seat, Lh
[04.1998 - 03.2001] KF80..DLX..MA BLUISH GRAY,TRIM1# |
79140-0B040-B1 |
— | ||
|
79260B
|
79260B
79160-0B010
Spring Assy, No.2 Seat Cushion, Lh
[12.1996 - 12.2002] KF70,80,LF80..4F;KF70,80,LF70,80..(DLX,GL)..CBU..RHD |
79160-0B010 |
— | ||
|
9008056046
|
9008056046
90080-56046
New Genuine Part
|
90080-56046 |
— | ||
|
9010510241
|
9010510241
90105-10241 New Genuine Part |
90105-10241 |
US $3.20 |
||
|
9015960280
|
9015960280
90159-60280 New Genuine Part |
90159-60280 |
US $1.60 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.92 |
||
|
9016840011
|
9016840011
90168-40011 SCREW |
90168-40011 |
US $1.93 |
||
|
9052306006
|
9052306006
90523-06006 New Genuine Part |
90523-06006 |
US $1.31 |
||
|
9321056008
|
9321056008
93210-56008 Screw Or Bolt(For Valve Rocker Shaft Lock) |
93210-56008 |
US $1.89 |
||
|
9321953008
|
9321953008
93219-53008 New Genuine Part |
93219-53008 |
US $0.73 |
||
|
9354055010
|
9354055010
93540-55010 SCREW |
93540-55010 |
US $1.25 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
