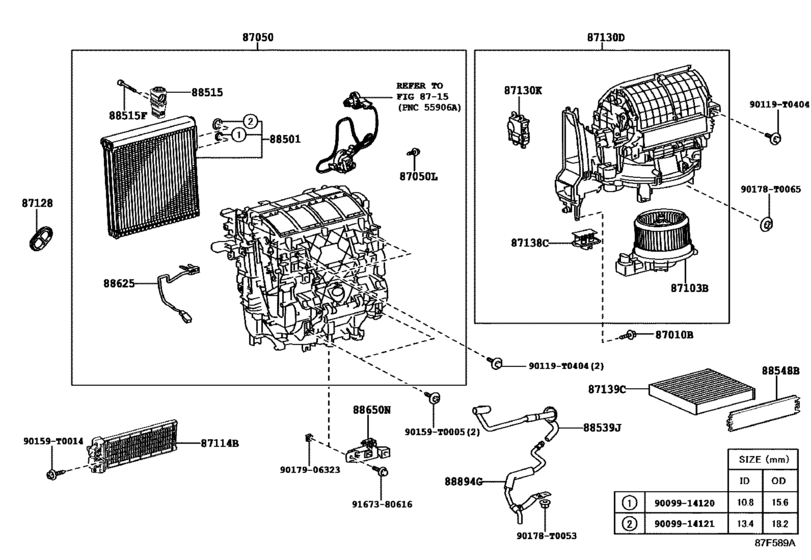

Heating & Air Conditioning - Cooler Unit ([04.2016 - ] FRONT MANUAL COOLER (1604- )PHLP..20E,28E,N) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20E
- ENGINE
- 1TRFE
- TRANSMISSION
- ATM
- PRODUCT
- PHLP
- DESTINATION
- PHL
- Model
- INNOVA
- From
- 04.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87010B
|
87010B
90099-00968 Screw(For Air Conditioner Unit)[11.2015 -] TGN140..(20E,20G)..MA;GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,28Z,N)..(GEN, IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z,27,27G,27SR,27SRV,27V ,27Z,G,N)..(GCC,IDN,IND,LA,SA); TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLE |
90099-00968 |
US $0.82 |
||
|
87050
|
87050
87050-0KK20
Radiator Assy, Air Conditioner
[04.2016 -] TGN140..PHLP..(20E,N);GUN143..PHLP..6FC..28E |
87050-0KK20 |
— | ||
|
87050L
|
87050L
90099-00968 Screw(For Air Conditioner Unit)[04.2016 -] GUN143,TGN140..(20E,28E,N)..PHL |
90099-00968 |
US $0.82 |
||
|
87103B
|
87103B
87103-0K510
Motor Sub-Assy, Blower W/fan
[04.2016 -] GUN143,TGN140..PHLP..(20E,28E,N) |
87103-0K510 |
— | ||
|
87114B
|
87114B
87114-0K100
Cover, Heater
[04.2016 -] GUN143,TGN140..PHLP |
87114-0K100 |
— | ||
|
87128
|
87128
87128-0K240
Grommet, Heater
[04.2016 -] GUN143,TGN140..PHLP..(20E,28E,N) |
87128-0K240 |
— | ||
|
87130D
|
87130D
87130-0KA30
Blower Assy
[04.2016 -] GUN143,TGN140..PHLP..(20E,28E,N) |
87130-0KA30 |
— | ||
|
87130K
|
87130K
87106-0K220 Damper Servo Sub-Assy, Blower, No.1[11.2015 -] GUN143..28G..IND;GUN142,TGN14#..(20,20E,20G,24,27)..(GCC,GEN,IDN,TH);GUN14#,TGN14# ..(20E,24G,27,27G,27SR,28E,G,N)..(IDN,IND,LA,MA,PHL,VN); TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL); TGN141..27..GCC FRONT AIR CON |
87106-0K220 |
US $113.86 |
||
|
87138C
|
87138C
87138-0K350 Resistor, Blower[11.2015 -] GUN14#,TGN14#..(20E,24,27,27SR,28E,N)..(GCC,LA,PHL,VN); TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL) |
87138-0K350 |
US $53.90 |
||
|
87139C
|
87139C
87139-0K110
Filter, Clean Air
[04.2016 -] GUN143,TGN140..PHLP POLLEN FILTER,OE PART |
87139-0K110 |
— | ||
|
87139C
|
87139C
87139-58010 Filter, Clean Air (Charcoal)[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) DEODORANT FILTER |
87139-58010 |
from US $64.84 |
||
| replacement | |||||
|
87139C
|
87139C
87139-YZZ49 Filter, Cabin (Charcoal)[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) DEODORANT FILTER |
87139-YZZ49 |
US $118.81 |
||
|
88501
|
88501
88501-0K530
Evaporator Sub-Assy, Cooler, No.1
[04.2016 -] GUN143,TGN140..PHLP |
88501-0K530 |
— | ||
|
88515
|
88515
88515-0K580 Valve, Cooler Expansion[11.2015 -] TGN140..IDNP,PHLP;GUN143..IDNP..5F..PHL;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141.. (5F,6FC)..(IDN,IND,LA,SA);GUN143,TGN140..6FC..(20V,28E,28G,28V,28Z)..(IND,PHL,TH,V N); TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
88515-0K580 |
from US $58.87 |
||
|
88515F
|
88515F
90099-04542 Bolt(For Cooler Expansion Valve)[11.2015 -] TGN140..6FC..VN;TGN140..(20E,20G)..MA;GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,2 8V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z,27,27 G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA); TGN140..TH FRONT AIR CONDITIO |
90099-04542 |
from US $1.15 |
||
|
88539J
|
88539J
88539-0K480
Hose, Drain Cooler
[04.2016 -] GUN143,TGN140..PHLP |
88539-0K480 |
— | ||
|
88548B
|
88548B
88548-0K160
Case, Air Filter
[04.2016 -] GUN143,TGN140..PHLP |
88548-0K160 |
— | ||
|
88625
|
88625
88620-0K010 Thermistor, Cooler, No.1[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA); TGN140..TH FRONT AIR CON |
88620-0K010 |
US $24.57 |
||
|
88650N
|
88650N
88650-0K410
Amplifier Assy, Air Conditioner
[11.2015 - 10.2016] TGN140..RHD..(20E,20G);GUN14#,TGN140..(20E,24G,28E,N)..(IDN,PHL); TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
88650-0K410 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-0K470
Amplifier Assy, Air Conditioner
[11.2015 - 10.2016] TGN140..RHD..(20E,20G);GUN14#,TGN140..(20E,24G,28E,N)..(IDN,PHL); TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
88650-0K470 |
— | ||
|
88650N
|
88650N
88650-0K470
Amplifier Assy, Air Conditioner
[11.2016 -] TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..(20E,24G,28E,N)..(IDN,MA,PHL); TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL); GUN143..28E FRONT AIR CONDITIONER-AUTO&REAR AIR CONDITIONER-AUTO(COOLER ONLY) |
88650-0K470 |
— | ||
|
88894G
|
88894G
88894-0K180
Connector, Drain Hose
[04.2016 -] GUN143,TGN140..PHLP |
88894-0K180 |
— | ||
|
90119T0404
|
90119T0404
90119-T0404
New Genuine Part
|
90119-T0404 |
— | ||
|
90159T0005
|
90159T0005
90159-T0005 New Genuine Part |
90159-T0005 |
US $0.87 |
||
|
90159T0014
|
90159T0014
90159-T0014
SCREW WWASHER TAPP
|
90159-T0014 |
— | ||
|
90178T0053
|
90178T0053
90178-T0053
New Genuine Part
|
90178-T0053 |
— | ||
|
90178T0065
|
90178T0065
90178-T0065
New Genuine Part
|
90178-T0065 |
— | ||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9017906323
|
9017906323
90179-06323 Nut |
90179-06323 |
US $1.97 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
