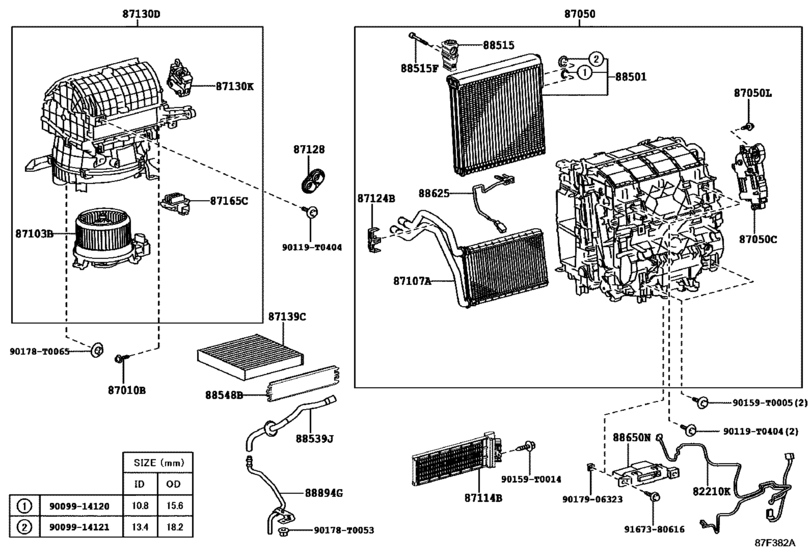

Heating & Air Conditioning - Cooler Unit ([11.2015 - ] FRONT AUTO AIR CONDITIONER (1511- )28G..TH ; (1511- )20G,28V,28Z..IND ,MA,TH ; (1511- )20Q,20V,24,24Q, 24V,24Z,27V,27Z.. IDN,IND,SA) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20V
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- IDN
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210K
|
82210K
82212-0K050
Harness Assy, Air Conditioner
[11.2015 -] GUN143..28G..TH;GUN143,TGN140..(20G,28V,28Z)..(IND,MA,TH);GUN142,TGN14#..(20Q,20V, 24,24Q,24V,24Z,27V,27Z)..(IDN,IND,SA) |
82212-0K050 |
— | ||
|
87010B
|
87010B
90099-00968 Screw(For Air Conditioner Unit)[11.2015 -] TGN140..(20E,20G)..MA;GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,28Z,N)..(GEN, IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z,27,27G,27SR,27SRV,27V ,27Z,G,N)..(GCC,IDN,IND,LA,SA); TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLE |
90099-00968 |
US $0.82 |
||
|
87050
|
87050
87050-0KK90
Radiator Assy, Air Conditioner
[11.2015 -] GUN142,TGN140..(20Q,20V,24Q,24V)..IDN |
87050-0KK90 |
— | ||
|
87050C
|
87050C
87106-0K210 Damper Servo Sub-Assy, Air Conditioner Radiator, No.1[11.2015 -] GUN143..(28G,28V)..(PHL,TH);GUN142,TGN14#..(20G,24G,27G)..(GCC,MA,PHL,VN);GUN14#,T GN14#..(20Q,20V,24,24Q,24V,24Z,27SRV,27V,27Z,28Z)..(IDN,IND,LA,SA,VN) |
87106-0K210 |
from US $115.21 |
||
|
87050L
|
87050L
90099-00968 Screw(For Air Conditioner Unit)[11.2015 -] GUN143..28G..TH;GUN143,TGN140..(20G,28V,28Z)..(IND,MA,TH);GUN142,TGN14#..(5F,6FC). .(20Q,20V,24,24Q,24V,24Z,27,27SR,27V,27Z)..(GCC,IDN,IND,LA,SA); TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL) |
90099-00968 |
US $0.82 |
||
|
87103B
|
87103B
87103-0K430
Motor Sub-Assy, Blower W/fan
[11.2015 -] GUN142..(24,24Q,24V)..(IDN,SA);GUN143,TGN140..RHD..IDNP..(20,20Q,20V,28G,28V) |
87103-0K430 |
— | ||
|
87107A
|
87107A
87107-0K210
Unit Sub-Assy, Heater Radiator
[11.2015 -] GUN142,TGN140..(20Q,20V,24Q,24V)..IDN |
87107-0K210 |
— | ||
|
87114B
|
87114B
87114-0K060
Cover, Heater
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
87114-0K060 |
— | ||
|
87124B
|
87124B
87124-06140
Clamp, Heater
[11.2015 -] GUN142..24G..(GCC,IND);GUN142,TGN140..(20,20E,20Q,20V,24,24Q,24V,24Z,G,N)..(GCC,GE N,IDN,IND,SA,VN);GUN143,TGN14#..(20G,27,27G,27SR,27SRV,27V,27Z,28G,28V,28Z)..(GCC, IND,LA,MA,PHL,TH,VN); TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - DEAL |
87124-06140 |
— | ||
|
87128
|
87128
87128-0K150 Grommet, Heater[11.2015 -] GUN143..IDNP..(28G,28V);GUN142,TGN140..LHD..IDNP..(20G,24G);GUN142,TGN14#..(20,20Q ,20V,24,24Q,24V,27,27G,27SR,27SRV)..(GCC,GEN,IDN,LA,SA); TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL) |
87128-0K150 |
US $5.30 |
||
|
87130D
|
87130D
87130-0K690
Blower Assy
[11.2015 -] GUN142..(24,24Q,24V)..(IDN,SA);GUN143,TGN140..RHD..IDNP..(20Q,20V,28G,28V) |
87130-0K690 |
— | ||
|
87130K
|
87130K
87106-0K250
Damper Servo Sub-Assy, Blower, No.1
[11.2015 -] GUN143..28G..TH;GUN143,TGN140..(20G,28V,28Z)..(IND,MA,TH);GUN142,TGN14#..(20Q,20V, 24,24Q,24V,24Z,27V,27Z)..(IDN,IND,SA) |
87106-0K250 |
— | ||
|
87139C
|
87139C
87139-0K030
Filter, Clean Air
[11.2015 -] GUN142..IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) POLLEN FILTER,OE PART |
87139-0K030 |
— | ||
|
87139C
|
87139C
87139-58010 Filter, Clean Air (Charcoal)[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) DEODORANT FILTER |
87139-58010 |
from US $64.84 |
||
| replacement | |||||
|
87139C
|
87139C
87139-YZZ49 Filter, Cabin (Charcoal)[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) DEODORANT FILTER |
87139-YZZ49 |
US $118.81 |
||
|
87165C
|
87165C
87165-0K060 Control, Blower Motor[11.2015 -] GUN143..(28G,28V)..(PHL,TH);GUN142,TGN14#..(20G,24G,27G)..(GCC,MA,PHL,VN);GUN14#,T GN14#..(20Q,20V,24,24Q,24V,24Z,27SRV,27V,27Z,28Z)..(IDN,IND,LA,SA,VN) |
87165-0K060 |
US $101.34 |
||
|
88501
|
88501
88501-0K460
Evaporator Sub-Assy, Cooler, No.1
[11.2015 -] GUN142..IDN,SA;GUN143,TGN140..RHD..IDNP; TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
88501-0K460 |
— | ||
|
88515
|
88515
88515-0K580 Valve, Cooler Expansion[11.2015 -] TGN140..IDNP,PHLP;GUN143..IDNP..5F..PHL;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141.. (5F,6FC)..(IDN,IND,LA,SA);GUN143,TGN140..6FC..(20V,28E,28G,28V,28Z)..(IND,PHL,TH,V N); TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
88515-0K580 |
from US $58.87 |
||
|
88515F
|
88515F
90099-04542 Bolt(For Cooler Expansion Valve)[11.2015 -] TGN140..6FC..VN;TGN140..(20E,20G)..MA;GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,2 8V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z,27,27 G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA); TGN140..TH FRONT AIR CONDITIO |
90099-04542 |
from US $1.15 |
||
|
88539J
|
88539J
88539-0K340
Hose, Drain Cooler
[11.2015 -] GUN142..IDN,SA;GUN143,TGN140..RHD..IDNP |
88539-0K340 |
— | ||
|
88548B
|
88548B
88548-0K090
Case, Air Filter
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA); TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL); TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL) |
88548-0K090 |
— | ||
|
88625
|
88625
88620-0K010 Thermistor, Cooler, No.1[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA); TGN140..TH FRONT AIR CON |
88620-0K010 |
US $24.57 |
||
|
88650N
|
88650N
88650-0K440
Amplifier Assy, Air Conditioner
[11.2015 -] GUN143,TGN140..(20G,28G,28V)..(MA,PHL,TH,VN);GUN142,TGN14#..(20Q,20V,24,24Q,24V,27 SRV)..(IDN,LA,SA,VN) |
88650-0K440 |
— | ||
|
88894G
|
88894G
88894-0K050
Connector, Drain Hose
[11.2015 -] GUN142..IDN,SA;GUN143,TGN140..RHD..IDNP |
88894-0K050 |
— | ||
|
90119T0404
|
90119T0404
90119-T0404
New Genuine Part
|
90119-T0404 |
— | ||
|
90159T0005
|
90159T0005
90159-T0005 New Genuine Part |
90159-T0005 |
US $0.87 |
||
|
90159T0014
|
90159T0014
90159-T0014
SCREW WWASHER TAPP
|
90159-T0014 |
— | ||
|
90178T0053
|
90178T0053
90178-T0053
New Genuine Part
|
90178-T0053 |
— | ||
|
90178T0065
|
90178T0065
90178-T0065
New Genuine Part
|
90178-T0065 |
— | ||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9017906323
|
9017906323
90179-06323 Nut |
90179-06323 |
US $1.97 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
