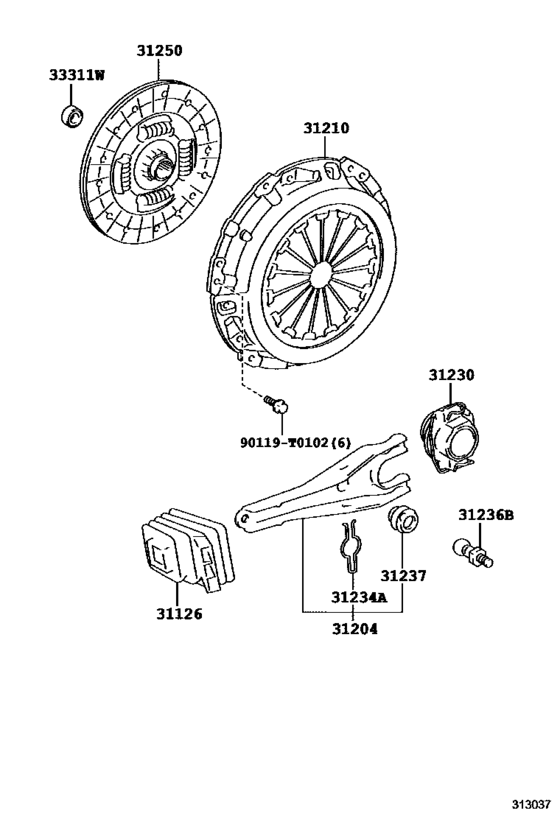

Clutch & Release Fork ([11.2015 - ] (1511- )TGN140..5F) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20E
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- TH
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-0K090 Boot, Clutch Release Fork[11.2015 -] TGN14#..5F..(20E,20G,20Q,20V,27,27G,27SR,27V,N) TYPE C:REFER 33-01,TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31126-0K090 |
US $12.29 |
||
|
31204
|
31204
31204-0K120 Fork Sub-Assy, Clutch Release[11.2015 -] TGN14#..5F..(20E,20G,20Q,20V,27,27G,27SR,27V,N) TYPE A:REFER 33-01,TYPE A:REFER ILLUST. |
31204-0K120 |
US $54.78 |
||
|
31210
|
31210
31210-0K300 Cover Assy, Clutch[11.2015 -] TGN140..5F..(20E,20G,20Q,20V,N) |
31210-0K300 |
US $176.83 |
||
|
31230
|
31230
31230-71060
Bearing Assy, Clutch Release
[11.2015 -] TGN14#..5F..(20E,20G,20Q,20V,27,27G,27SR,27V,N) TYPE C:REFER 33-01,TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31230-71060 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-71061 BEARING ASSY CLUTCH[11.2015 -] TGN14#..5F..(20E,20G,20Q,20V,27,27G,27SR,27V,N) TYPE C:REFER 33-01,TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31230-71061 |
US $83.97 |
||
|
31234A
|
31234A
31234-71020
Spring, Release Fork Support
[11.2015 -] TGN14#..5F..(20E,20G,20Q,20V,27,27G,27SR,27V,N) TYPE C:REFER 33-01,TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31234-71020 |
— | ||
|
31236B
|
31236B
31236-0K020 Support, Release Fork[11.2015 -] TGN14#..5F..(20E,20G,20Q,20V,27,27G,27SR,27V,N) TYPE C:REFER 33-01,TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31236-0K020 |
US $9.07 |
||
|
31237
|
31237
31237-0K020
Boot, Clutch Release Fork Support
[11.2015 -] TGN14#..5F..(20E,20G,20Q,20V,27,27G,27SR,27V,N) TYPE C:REFER 33-01,TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31237-0K020 |
— | ||
|
31250
|
31250
31250-0K300
Disc Assy, Clutch
[11.2015 - 04.2016] TGN140..5F |
31250-0K300 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-0K301 Disc Assy, Clutch[11.2015 - 04.2016] TGN140..5F |
31250-0K301 |
US $162.79 |
||
|
31250
|
31250
31250-0K301 Disc Assy, Clutch[05.2016 -] TGN140..5F..(20E,20G,20Q,20V,N) |
31250-0K301 |
US $162.79 |
||
|
33311W
|
33311W
90363-T0019 Bearing (For Input Shaft)[11.2015 -] TGN14#..5F..(20E,20G,20Q,20V,27,27G,27SR,27V,N) |
90363-T0019 |
US $4.91 |
||
|
90119T0102
|
90119T0102
90119-T0102 Bolt (For Transmission Control Cable Bracket) |
90119-T0102 |
US $0.27 |
||
