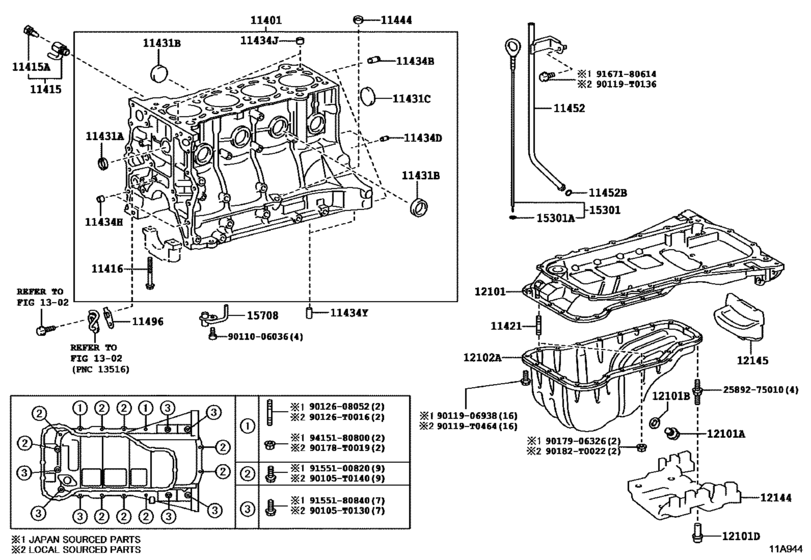

Cylinder Block ([11.2015 - ] (1511- )1TRFE..20,20E,20Q,20V..GEN,IDN,MA,TH, VN) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20E
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- TH
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-09402
Block Sub-Assy, Cylinder
[11.2015 -] 1TRFE..TGN140 |
11401-09402 |
— | ||
|
11415
|
11415
90910-09129 Cock Sub-Assy, Water Drain(For Cylinder Block)[11.2015 -] 1TRFE..TGN140 |
90910-09129 |
from US $6.63 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[11.2015 -] 1TRFE..TGN140; 2GDFTV..GUN142;1GDFTV..GUN143..TH;1GDFTV..GUN143..INDP,PHLP |
90910-09087 |
from US $3.02 |
||
|
11416
|
11416
90910-02179 Bolt(For Crankshaft Bearing Cap Set)[11.2015 -] 1TRFE,2TRFE..TGN14# MADE IN JAPAN |
90910-02179 |
US $4.84 |
||
|
11416
|
11416
90910-T2002 Bolt(For Crankshaft Bearing Cap Set)[11.2015 -] 1TRFE,2TRFE..TGN14# MADE IN INDONESIA |
90910-T2002 |
US $5.39 |
||
|
11421
|
11421
90126-06028 Bolt, Stud(For Oil Pan)[11.2015 -] 1TRFE,2TRFE..TGN14#; 2GDFTV..GUN142;1GDFTV..GUN143..TH;1GDFTV..GUN143..INDP,PHLP |
90126-06028 |
from US $0.64 |
||
|
11431A
|
11431A
90331-T0004
Plug, Tight, No.3
[11.2015 -] 1TRFE,2TRFE..TGN14# (L) |
90331-T0004 |
— | ||
|
11431A
|
11431A
96411-63000 Plug, Tight[11.2015 -] 1TRFE,2TRFE..TGN14# (J) |
96411-63000 |
from US $3.76 |
||
|
11431B
|
11431B
90331-T0005
Plug, Tight, No.5
[11.2015 -] 1TRFE,2TRFE..TGN14# (L) |
90331-T0005 |
— | ||
|
11431B
|
11431B
96411-63500 Plug, Tight[11.2015 -] 1TRFE,2TRFE..TGN14# (J) |
96411-63500 |
from US $3.58 |
||
|
11431C
|
11431C
90331-T0007
Plug, Tight, No.3(For Cylinder Block)
[11.2015 -] 1TRFE..TGN140 (L) |
90331-T0007 |
— | ||
|
11431C
|
11431C
96411-64000 Plug, Tight, No.2[11.2015 -] 1TRFE..TGN140 (J) |
96411-64000 |
from US $4.12 |
||
|
11434B
|
11434B
90250-T0018 Pin, Straight(For Clutch Housing Set)[11.2015 -] 1TRFE,2TRFE..TGN14# L=22,OD=10 |
90250-T0018 |
US $0.98 |
||
|
11434D
|
11434D
90250-T0017
Pin, Straight(For Engine Rear Oil Seal)
[11.2015 -] 1TRFE,2TRFE..TGN14# L=14,OD=6 |
90250-T0017 |
— | ||
|
11434H
|
11434H
90253-T0005
Pin, Ring (For Timing Belt Cover Set)
[11.2015 -] 1TRFE..TGN140 |
90253-T0005 |
— | ||
|
11434J
|
11434J
90253-T0007
Pin, Ring (For Cylinder Head Set)
[11.2015 -] 1TRFE,2TRFE..TGN14# |
90253-T0007 |
— | ||
|
11434Y
|
11434Y
90253-T0006
Pin, Straight(For Oil Pan)
[11.2015 -] 1TRFE,2TRFE..TGN14# |
90253-T0006 |
— | ||
|
11444
|
11444
11444-75020 Plug, Hole[11.2015 -] 1TRFE,2TRFE..TGN14# |
11444-75020 |
US $2.04 |
||
|
11452
|
11452
11409-0C030
Guide, Oil Level Gage
[11.2015 -] 1TRFE,2TRFE..TGN14# MADE IN INDONESIA |
11409-0C030 |
— | ||
|
11452
|
11452
11409-0C050 Guide, Oil Level Gage[11.2015 -] 1TRFE,2TRFE..TGN14# MADE IN THAILAND |
11409-0C050 |
US $11.84 |
||
|
11452B
|
11452B
90301-T0025 Ring, O(For Oil Level Gage Guide)[11.2015 -] 1TRFE,2TRFE..TGN14# |
90301-T0025 |
US $2.24 |
||
|
11496
|
11496
11496-0C010
Gasket, Oil Hole Cover Plate
[11.2015 -] 1TRFE..TGN140 (L) |
11496-0C010 |
— | ||
|
11496
|
11496
11496-75011 Gasket, Oil Hole Cover Plate[11.2015 -] 1TRFE..TGN140 (J) |
11496-75011 |
US $4.30 |
||
|
12101
|
12101
12101-0C030
Pan Sub-Assy, Oil
[11.2015 -] 1TRFE..TGN140..20G..IDN;1TRFE..TGN140..(20E,N)..PHL MADE IN INDONESIA; 1TRFE..TGN140..20G..(MA,PHL,VN);1TRFE,2TRFE..TGN14#..(20,20E,20Q,20V,27,27G,27SR,2 7SRV,27V,27Z)..(GCC,GEN,IDN,IND,LA,MA,TH,VN) |
12101-0C030 |
— | ||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[11.2015 - 04.2016] 1TRFE,2TRFE..TGN14# |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[11.2015 - 04.2016] 1TRFE,2TRFE..TGN14# |
90341-T0004 |
US $3.59 |
||
|
12101A
|
12101A
90341-12032 Plug(For Oil Pan Drain)[05.2016 -] 1TRFE,2TRFE..TGN14# |
90341-12032 |
from US $3.24 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[11.2015 -] 1TRFE,2TRFE..TGN14# |
90430-12031 |
from US $0.84 |
||
|
12101D
|
12101D
12129-75010 Plug No.1(For Oil Pan)[11.2015 -] 1TRFE..TGN140..20G..(MA,PHL,VN);1TRFE,2TRFE..TGN14#..(20,20E,20Q,20V,27,27G,27SR,2 7SRV,27V,27Z)..(GCC,GEN,IDN,IND,LA,MA,TH,VN) |
12129-75010 |
US $5.24 |
||
|
12102A
|
12102A
12102-0C010 Pan Sub-Assy, Oil, No.2OIL, NO.2 [11.2015 -] 1TRFE,2TRFE..TGN14# MADE IN INDONESIA |
12102-0C010 |
US $105.65 |
||
|
12102A
|
12102A
12102-0C020 Pan Sub-Assy, Oil, No.2OIL, NO.2 [11.2015 -] 1TRFE,2TRFE..TGN14# MADE IN THAILAND |
12102-0C020 |
US $107.33 |
||
|
12144
|
12144
12144-0C020 Silencer, Oil Pan Cover[11.2015 -] 1TRFE..TGN140..20G..(MA,PHL,VN);1TRFE,2TRFE..TGN14#..(20,20E,20Q,20V,27,27G,27SR,2 7SRV,27V,27Z)..(GCC,GEN,IDN,IND,LA,MA,TH,VN) |
12144-0C020 |
US $48.87 |
||
|
12145
|
12145
12145-0C020 Silencer, Oil Pan Cover, No.2[11.2015 - 06.2016] 1TRFE,2TRFE..TGN14#..IDNP |
12145-0C020 |
US $16.65 |
||
|
15301
|
15301
15301-0C020 Gage Sub-Assy, Oil Level[11.2015 -] 1TRFE,2TRFE..TGN14# MADE IN THAILAND |
15301-0C020 |
US $10.32 |
||
|
15301
|
15301
15301-0C030
Gage Sub-Assy, Oil Level
[11.2015 -] 1TRFE,2TRFE..TGN14# MADE IN INDONESIA |
15301-0C030 |
— | ||
|
15301A
|
15301A
90301-T0018 Ring, O(For Oil Level Gage)O(FOR OIL LEVEL GAGE) [11.2015 -] 1TRFE,2TRFE..TGN14# |
90301-T0018 |
US $0.39 |
||
|
15708
|
15708
15708-0C010
Nozzle Sub-Assy, Oil, No.1
[11.2015 -] 1TRFE,2TRFE..TGN14# MADE IN INDONESIA |
15708-0C010 |
— | ||
|
15708
|
15708
15708-75020 Nozzle Sub-Assy, Oil, No.1[11.2015 -] 1TRFE,2TRFE..TGN14# MADE IN JAPAN |
15708-75020 |
from US $7.20 |
||
|
90105T0130
|
90105T0130
90105-T0130
Bolt(For Head To Camshaft Bearing Cap)
|
90105-T0130 |
— | ||
|
90105T0140
|
90105T0140
90105-T0140
New Genuine Part
|
90105-T0140 |
— | ||
|
90119T0136
|
90119T0136
90119-T0136
New Genuine Part
|
90119-T0136 |
— | ||
|
90119T0464
|
90119T0464
90119-T0464 BOLT WWASHER |
90119-T0464 |
US $0.76 |
||
|
90126T0016
|
90126T0016
90126-T0016
Bolt, Stud(For Exhaust Manifold To Cylinder Head)
|
90126-T0016 |
— | ||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.92 |
||
|
90182T0022
|
90182T0022
90182-T0022
New Genuine Part
|
90182-T0022 |
— | ||
|
2589275010
|
2589275010
25892-75010 New Genuine Part |
25892-75010 |
US $0.73 |
||
|
9011006036
|
9011006036
90110-06036 BOLT HEXAGON SOCKET |
90110-06036 |
from US $0.64 |
||
|
9011906938
|
9011906938
90119-06938 BOLT WWASHER |
90119-06938 |
from US $0.64 |
||
|
9012608052
|
9012608052
90126-08052 Bolt, Stud(For Oil Pan) |
90126-08052 |
from US $0.78 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.66 |
||
|
9155100820
|
9155100820
91551-00820 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-00820 |
US $1.43 |
||
|
9155180840
|
9155180840
91551-80840 Bolt(For Head To Camshaft Bearing Cap) |
91551-80840 |
US $2.15 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
